Pump Overhaul Continued
MSS Pump Internal Components (MSS-15/20/30/50/70)
32
33
34
3536
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
24
25
26
27
28
29
30
31
23

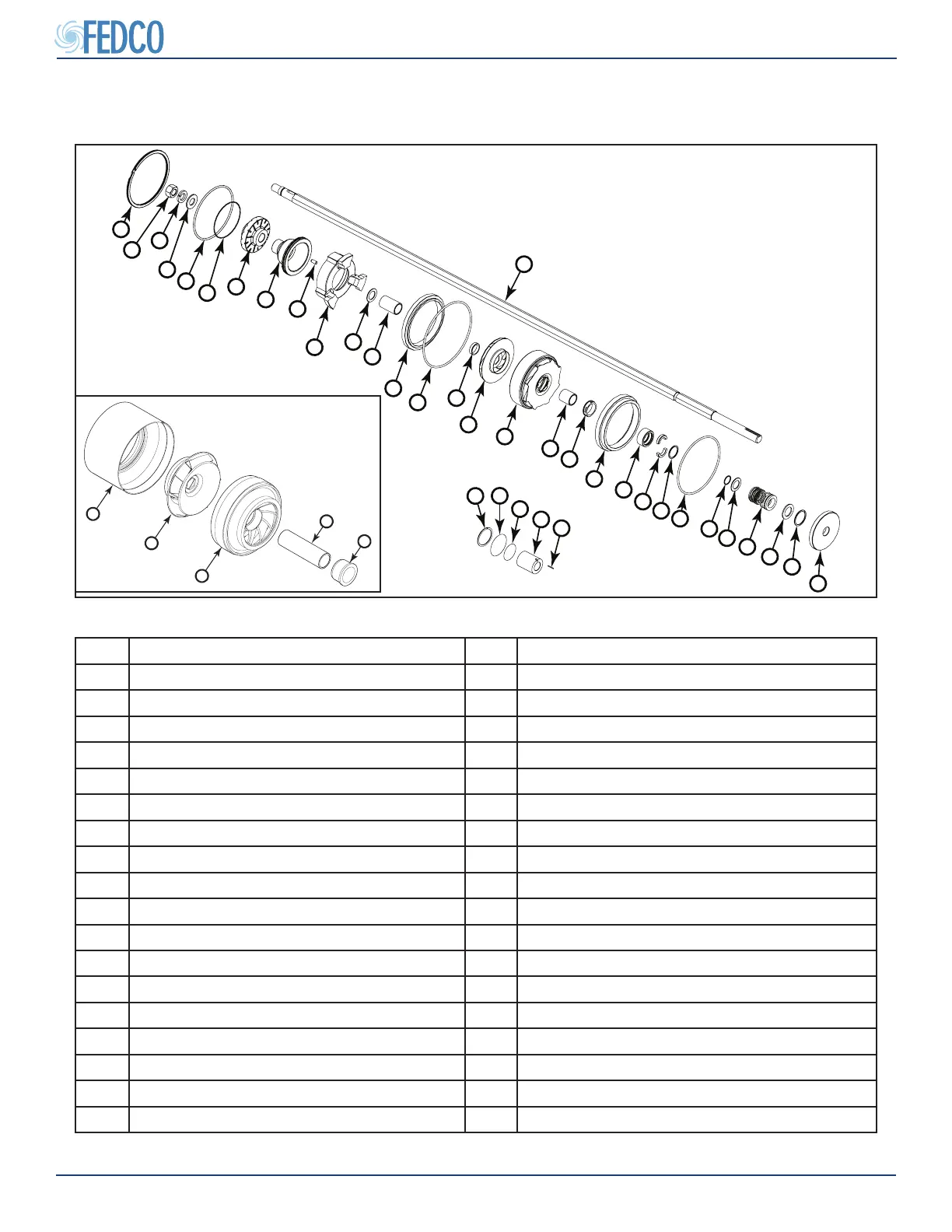

Figure 3 - Pump Internal Components (MSS-15/20/30/50/70)
Item Description Item Description
1 Shipping plug (optional) 19 Stage spacer (custom end spacer)
2 Stationary seal retaining ring 20 Shaft washer
3 Inlet washer 21 Bearing holder
4 Mechanical seal 22 Balance disc key
5 Mechanical seal shaft washer 23 Cavity cover
6 Rotating seal retaining ring 24 Balance disc
7 Inlet O-ring 25 Cavity cover O-ring
8 Split collar retaining ring 26 Discharge housing O-ring
9 Split collar 27 Balance disc atwasher
10 Collar sleeve 28 Balance disc lockwasher
11 Inlet ring 29 Balance disc nut
12 Di󰀨user bearing 30 Discharge housing retaining ring
13 Stage spacer 31 Pump shaft
14 Di󰀨user bowl/ rst stage housing 32 HP shaft bushing anti-roll pin (if equipped)
15 Impeller 33 HP shaft bushing (if equipped)
16 Series spacer (two shell pumps only) 34 HP shaft bushing O-ring (if equipped)
17 Series ange O-ring 35 HPSC O-ring (if equipped)
18 Discharge ring 36 HPSC retaining ring (if equipped)
13
12
15
14
14
MSS-50/70
