Figure 41 - Loosening Adjustment Locknut

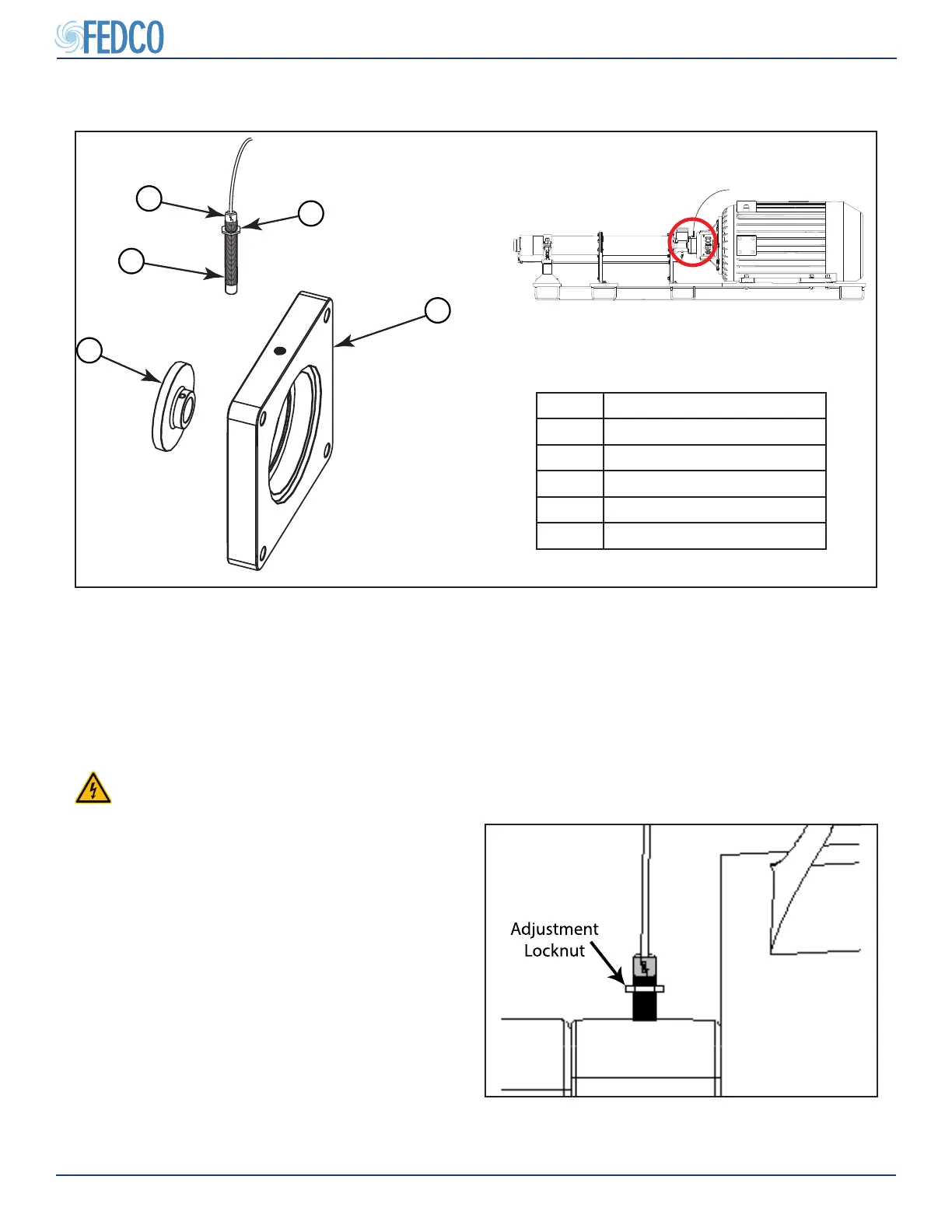

Figure 40 - Shaft Position Sensor Components
1
2
3
4
5
Optional Shaft Position Sensor
ELECTRICAL HAZARD
Make sure to disconnect the power supply to
the motor before carrying out component re-
placement procedures. Follow all Lock out/Tag
out procedures developed by your company
before starting any maintenance or repair.
Shaft Position Sensor Removal
1. Disconnect the shaft position sensor from its
power source.
2. Loosen the adjustment locknut at the top of
the spacer plate.
Pump Overhaul Continued
Optional Shaft Position Sensor Replacement
Item Description
1 Light emitting diode
2 Adjustment shaft locknut
3 Shaft position sensor
4 Shaft collar
5 Spacer plate
