7. Install the alignment pins to prevent damage
to mechanical seal and carefully slide pump
30.5 cm (12 inches) away from motor.
NOTES: Make sure to support inlet end of the
pump on support bracket(s).
6. Remove the nuts and the top cradle from the
precision leveling foot.

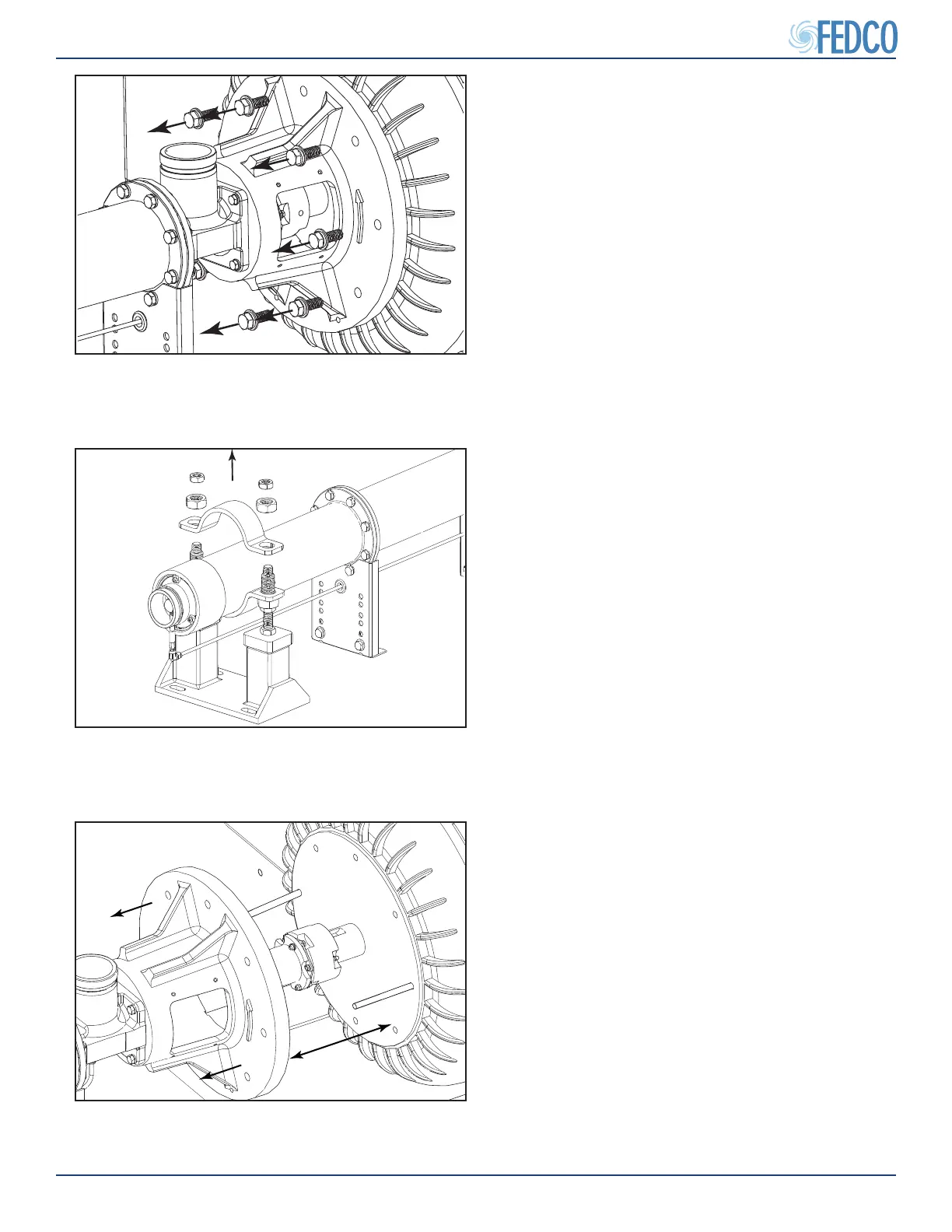

Figure 10 - Separating Pump From Motor
Figure 9 - Top Cradle Removal
Figure 8 - Motor Adapter Bolt Removal
5. Remove the motor adapter bolts and wash-
ers.
Pump Overhaul Continued
