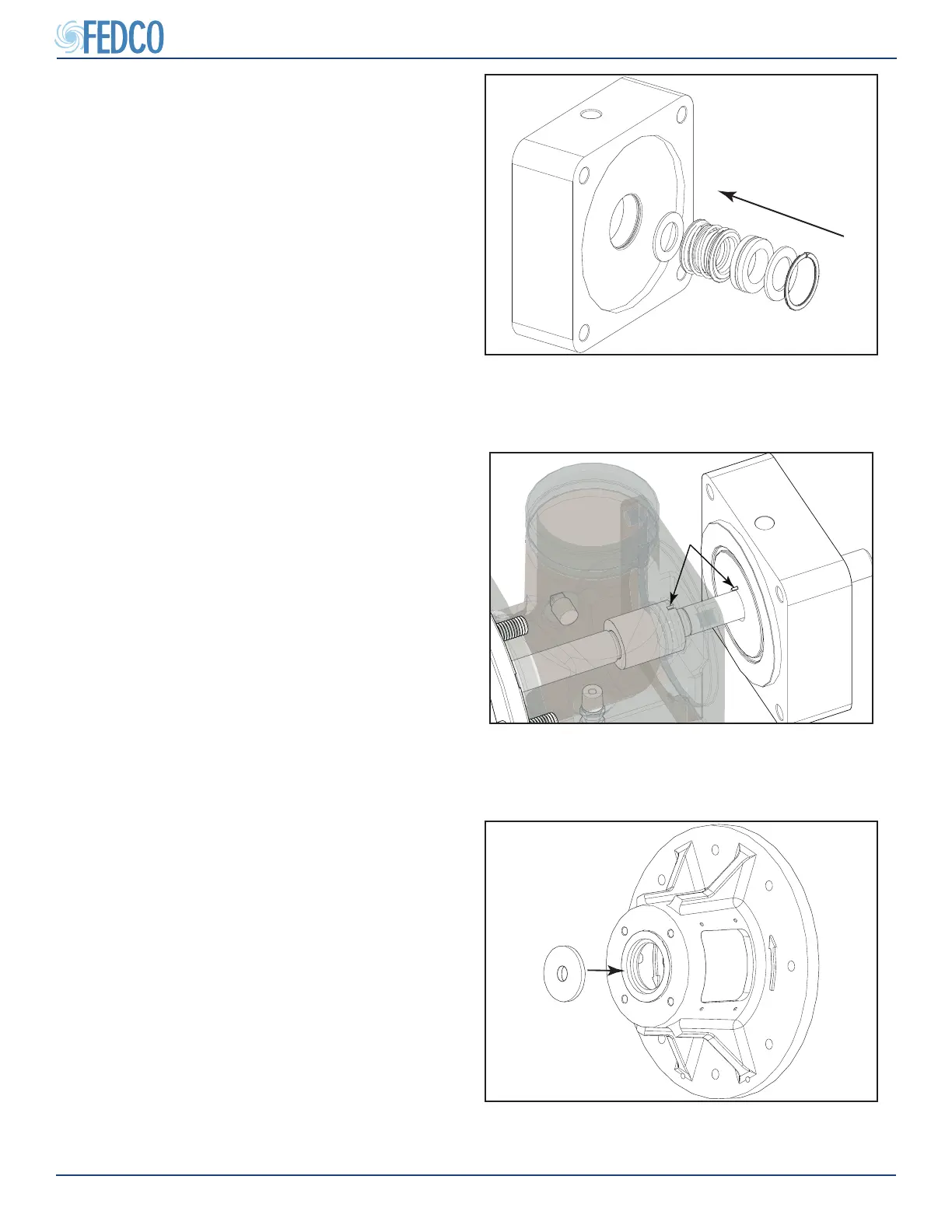

Figure 36 - Installing Shipping Plug
Figure 35 - Aligning HP Shaft Bushing
Figure 34 - Installing Seal Components
5. Install the shipping plug into the motor
adapter seat.
NOTES: For units equipped with a high pres-
sure seal carrier, make sure the shipping plug
is installed with the stepped portion of the
bushing facing inward toward the motor adapt-
er.
4. Position the high pressure seal carrier
against inlet housing.
NOTES: Make sure graphite shaft sleeve lines
up with anti-rotation pin in high pressure seal
carrier.
3. Install the new shaft washer, mechanical
seal, stationary seal and inlet washer. Se-
cure with the inlet retaining ring.
NOTES: Make sure the inlet retaining ring is
completely seated in the high pressure seal
carrier groove.
Pump Overhaul Continued
