6. Remove the nuts and the top cradle from the
precision leveling foot.
5. Remove the motor adapter bolts and wash-
ers.
4. Remove the anchor bolts and washers from
shell support bracket(s).
Pump Overhaul Continued

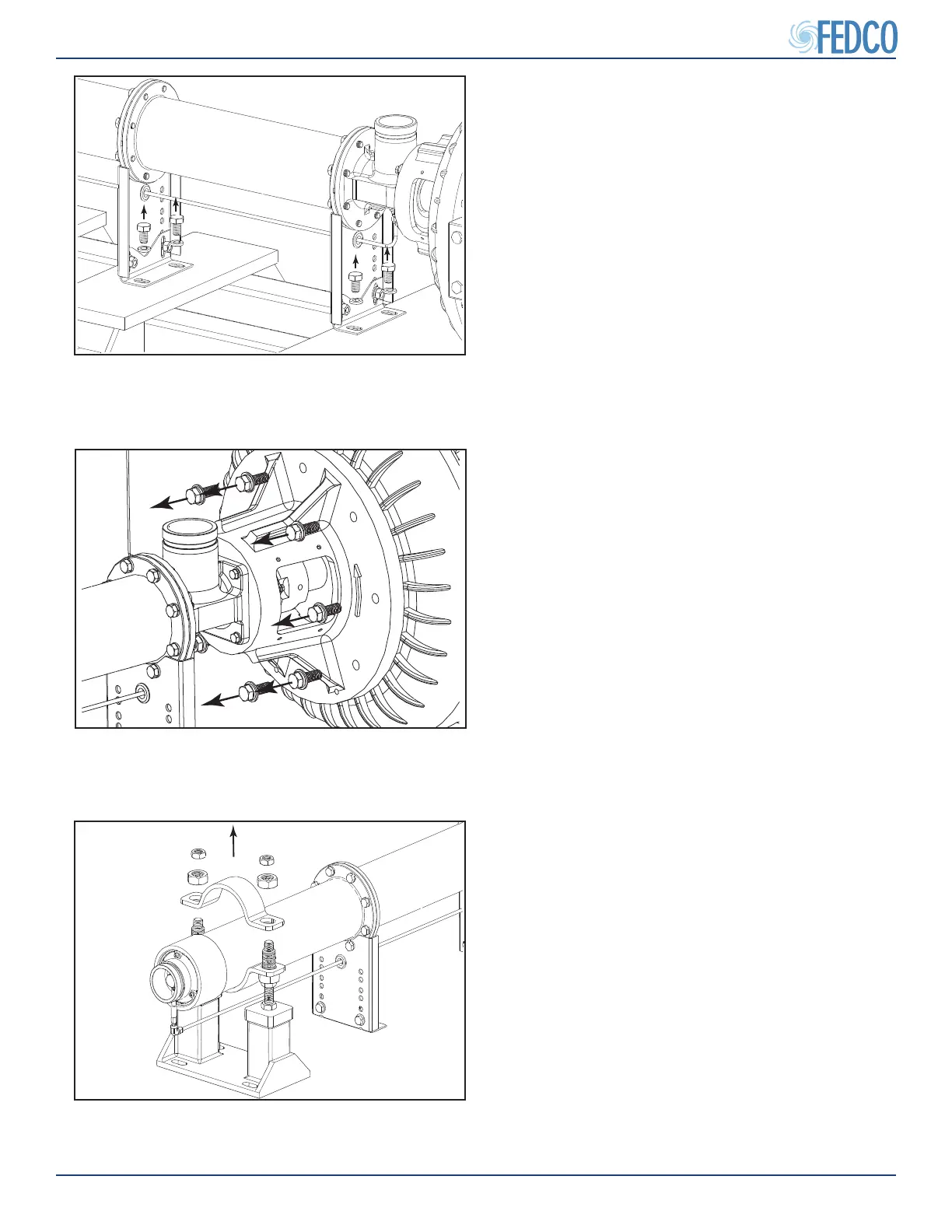

Figure 80 - Top Cradle Removal
Figure 79 - Motor Adapter Bolt Removal
Figure 78 - Support Bracket Anchor Bolt
Removal
To Next Page
