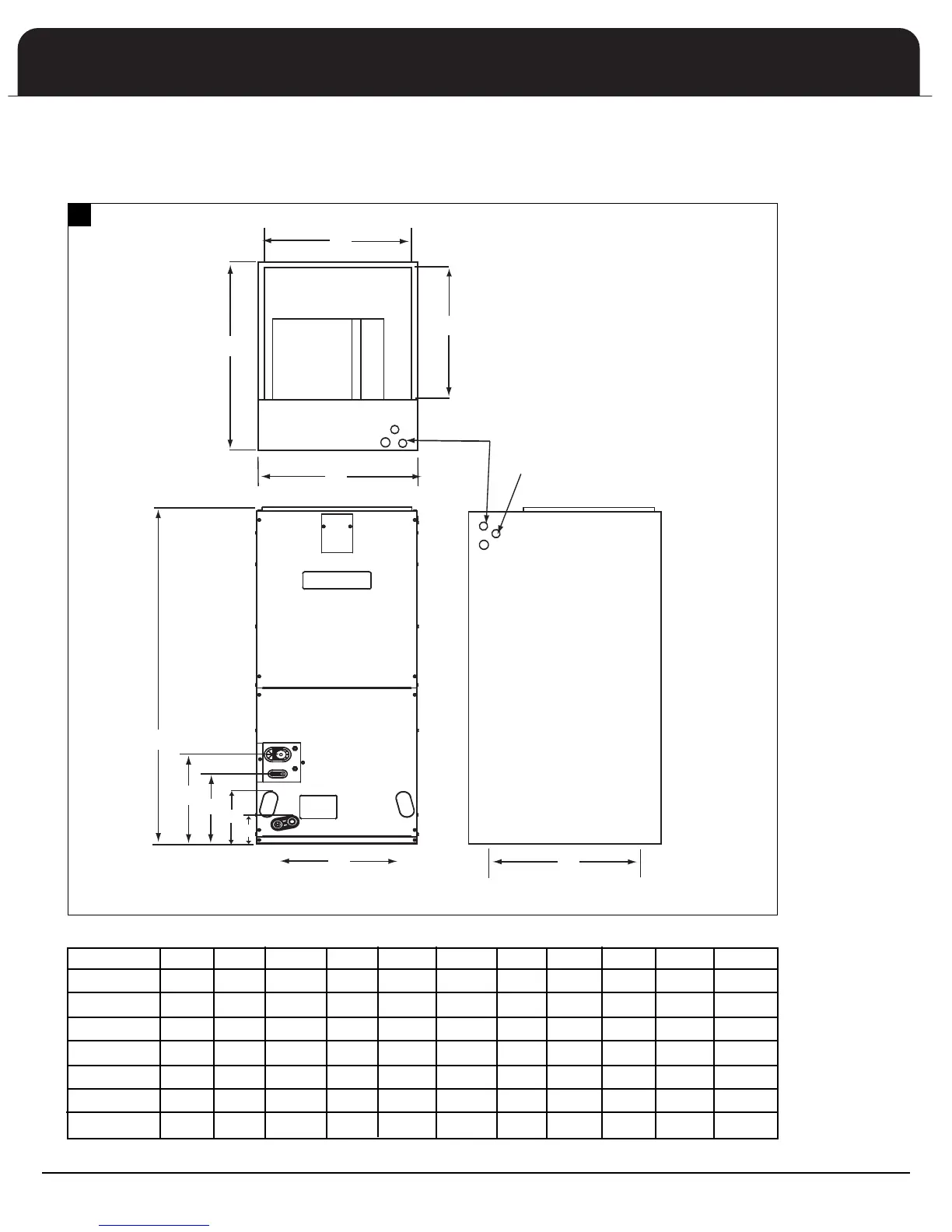

Fedders AFPB24B1 - Dimensions; Unit Dimension Diagram; Unit Dimension Specifications

Models A B C D E F G H I J K
AFPB24A1 2 1/4 3 5/8 13 1/4 15 1/4 43 3/8 15 17 22 18 14 16 1/4
AFPB24B1
2 1/4 3 5/8 13 1/4 15 1/4
43 3/8
15 17 22 18 14 16 1/4
AFPB36A1 2 1/4 3 5/8 13 1/4 15 1/4 43 3/8 15 17 22 18 14 16 1/4
AFPC48A1 2 1/4 3 5/8 13 1/4 15 48 1/8 19 1/8 21 26 22 16 3/8 22 1/4
AFPC48B1 2 1/4 3 5/8 13 1/4 15 48 1/8 19 1/8 21 26 22 16 3/8 22 1/4
AFPC60A1
2 1/4
3 5/8
13 1/4
15
48 1/8
19 1/8
21
26
22 16 3/8 22 1/4
AFPC60B1 2 1/4 3 5/8 13 1/4 15 48 1/8 19 1/8 21 26 22 16 3/8 22 1/4
INLET WIDTH INLET WIDTH
J
E
D
C
A
B
K
LOW VOLT CONNECTIONS
LOW VOLT CONNECTIONS
LINE VOLTAGE KNOCK OUTS
OUTLET OPENING
H
G
F
I
Dimensions
10
All dimensions in inches
