IMSS E3265
Condensate Evaporator Pan (Standard 3 Shelf Self Contained Models)
NOTICE: This is an open air merchandiser and can produce a large amount of
condensate water. During normal defrost cycles, steam from the
condensate evaporator may be visible around the case.
The standard Self-Contained case is furnished with an electric condensate evaporator.
Plumbing connections are not required.
Make sure that the drain line has not been dislodged during shipment and that the drain
trap terminates properly over the water reservoir.
The condensate evaporator can be removed from the case and the drain lines can be
plumbed to a drain or a condensate pump to conserve energy. A licensed electrician will
need to disconnect the condensate evaporator wires.
Condensate Evaporator Pan Shipped Loose (OPTION)
If the optional high output condensate pan was ordered it will be shipped loose in a
separate box. This high output pan must be field mounted and wired by a licensed
electrician.
If there is already a factory condensate pan and mounting brackets installed in the base
compartment they must be removed before installing the optional high output pan.
Unwire the heater wires from the 2x 4 electrical box and cap remaining wire ends with
UL approved wire nuts. NOTE: THESE WIRES CAN NOT BE CONNECTED TO THE FIELD
INSTALLED HIGH OUTPUT PAN.

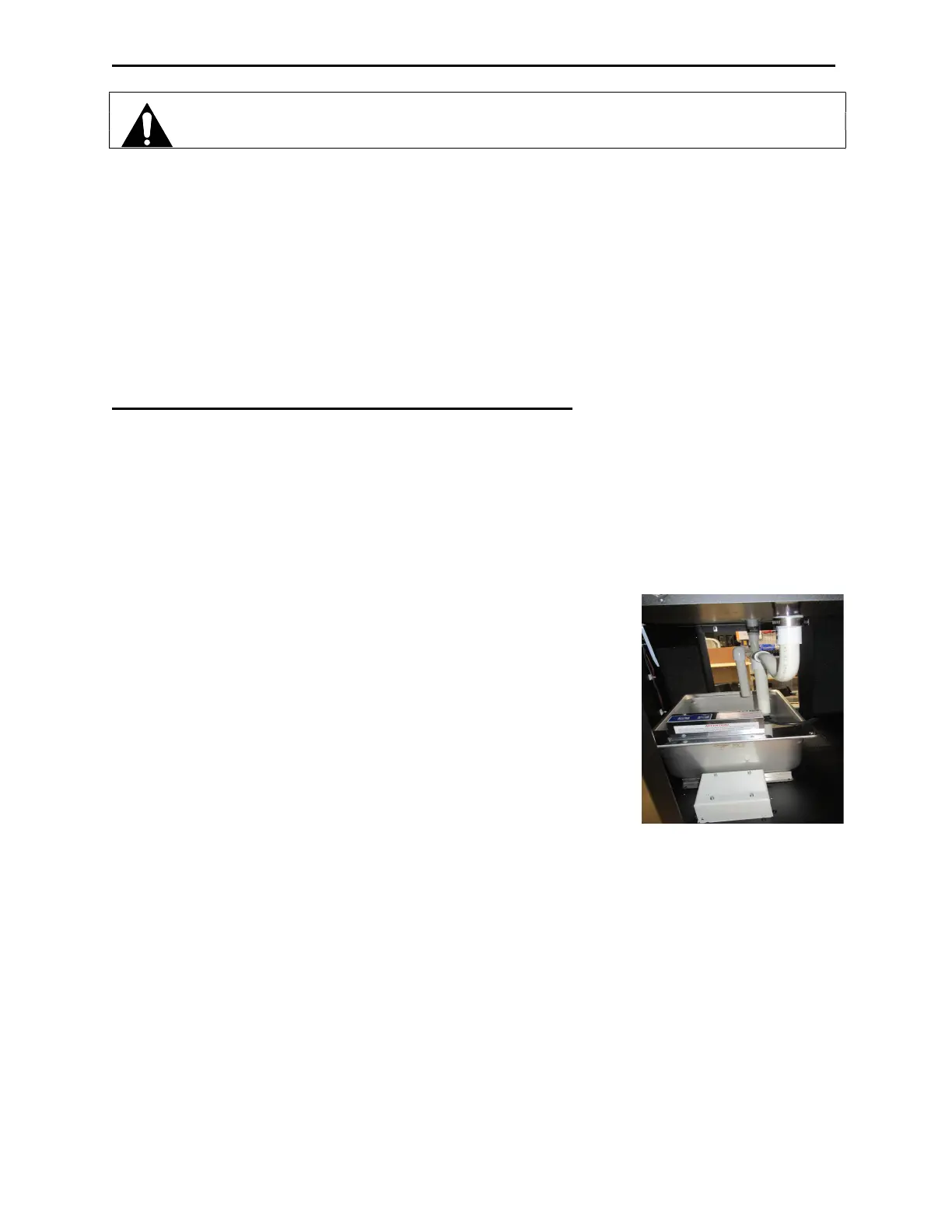

Mount the high output condensate pan inside the base
compartment so that the (2) condensate drain tubes drain
directly into the pan as shown in photo.
The field installed high output condensate pan must be wired
to its own designated circuit breaker and cannot be wired into
the same circuit breaker that the display case uses. The
display case circuit and wiring are not sized to handle the
extra amperage of the high output condensate pan.
See label on condo pan for proper circuit sizing.
- Bottom Electrical (standard): There is cord and plug provided on the high output
condensate pan. a licensed electrician must provide a designated receptacle to plug in
the high output condensate pan. There are access holes in various locations in the base
enclosure to run wires out of the case to electrical source.
-Top Electrical (optional): There is also a top wiring condensate pan option that provides
a top electrical box on the top side of the canopy. This allows wires to be run to the
store ceiling. There are (2) sets of wires, “main case wiring” and “condensate pan
wiring”. Each circuit is labeled and must run to separate circuits. The condensates pan
wires run down through the case into a 2 x 4 electrical box in the base compartment. A
licensed electrician will need to provide a designated receptacle to plug in the high
output condensate pan.
