STEP 3˖

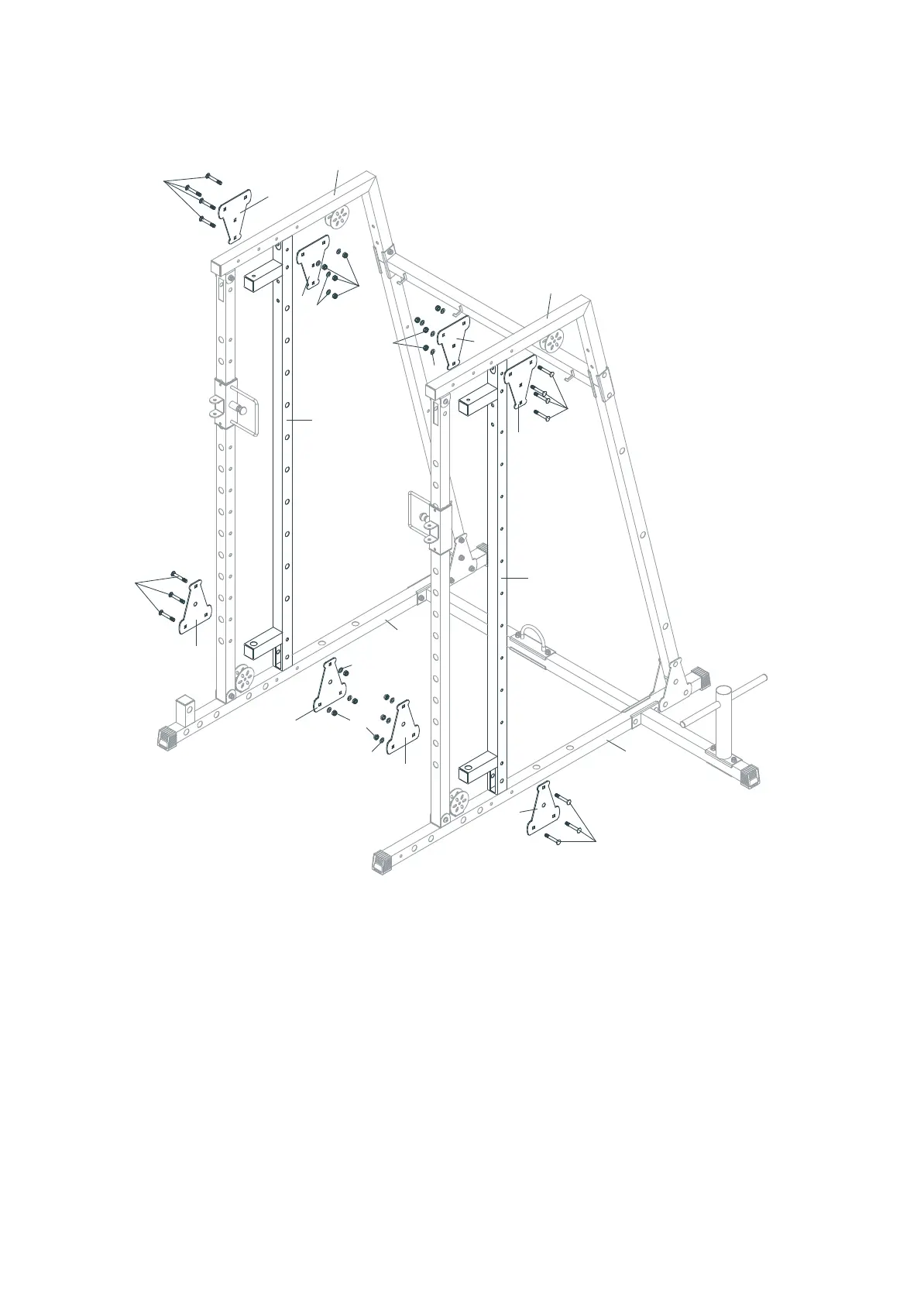

1. Attach the Weight Support Tube (Right & Left) (10&11) and four Special-Shaped Plates
(Circular Hole) (51) to the Bottom Tube (Right & Left) (1&2), using six M10X70mm
Carriage Bolts (98), six M10 Washers (103) and six M10 Nylon Nuts (107).
2. Attach the Weight Support Tube (Right & Left) (10&11) and four Special-Shaped Plates
(Square Hole) (52) to the two Upper Cross Beams (8), us
ing eight M10X70mm Carriage
Bolts (98), eight M10 Washers (103) and eight M10 Nylon Nuts (107).
-6-
ASSEMBLY INSTRUCTIONS
To Next Page
