Installing a New Saw Blade
WARNING: To prevent an accident or personal injury, always turn off the trigger switch and disconnect
the power plugfrom the receptacle before removing or installing a blade. Only use blades designed for
metal cutting saws. The use of any abrasive wheels, alternative purpose wheels, or different size
blades could void warranty. Check regularly that the blade is flat, sharp and free of any defects or
damage. Ensure the saw is disconnected from Power.

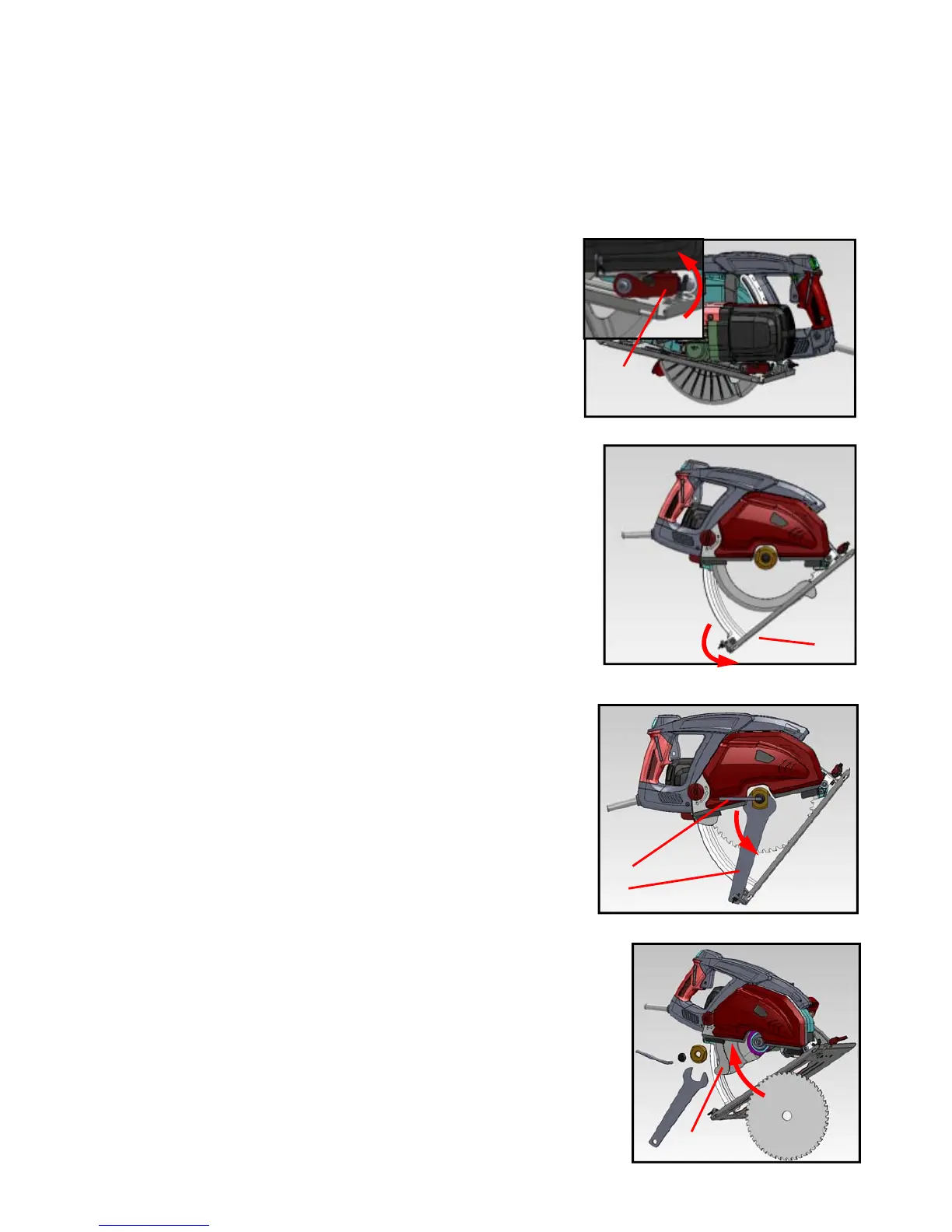

1. Push the lower guard lever (A) Refer to Fig.1
2. Open the plate to the maximum (B) Refer to Fig.2
3. Use the open-end wrench “D” to hold the flange, use
6mm HEX wrench ”C” to loosen the arbor screw in
counterclockwise direction.
Refer to Fig.3
4. Remove the HEX wrench, open-end wrench and arbor screw,
slide open lower blade guard, and then remove blade.
Refer to Fig.4
Fig.2
B
Fig.1
A
Fig.3
C
D
Fig.4
E
To Next Page
