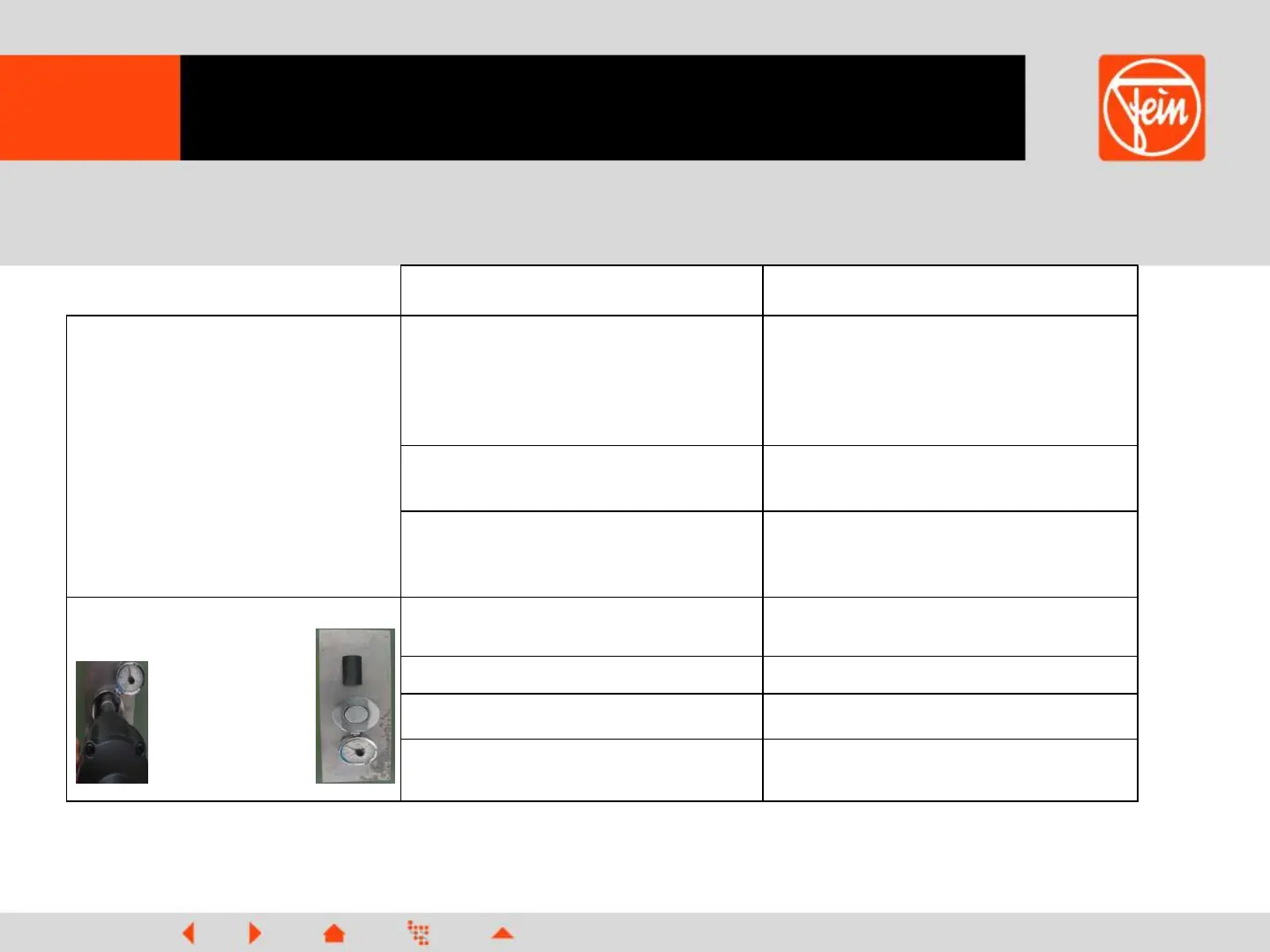

Fein KBM 50 Q - 3.2. Major functional test

MVK 03 / 07
Alle Rechte bei FEIN, insbesondere für den Fall der Schutzrechtsanmeldung.
Jede Verfügungsbefugnis wie Kopieren und Weitergaberecht liegt bei FEIN.
Fein Repair Tool
Possible causes Test possibilities
Magnetic foot does not
energize:

Check with
magnetisable part
power cable disconnected,
switch off,
connector not plugged in

LED on board must light up
briefly while switching on.

check power voltage on
X1, X2 continuity
magnetic foot defective

LED on board is flashing

measure resistance (504Ω
±
5%)
elektronics defective

LED on board is flashing

measure voltage on X7.1 and
X7.2 .
Magnetic holding force
too weak:
do not turn on while testing
motor switch

measure the voltage on X7.1
and X7.2

measure the
magnetic foot defective

measure resistance (504Ω
±
5%)
removal force
required
standing surface uneven

visual inspection
elektronics defective

measure the voltage on X7.1
and X7.2
3.2.1. Major functional test
Note: If the magnetic foot is defective, no further tests are possible.
Because of magnetic foot monitoring, the motor cannot be turned on.
Connect the spare magnetic foot.
