Feit Electric LAN14REC/BLK - Installation

Turning Off Power
Turn off the power at the switch and fuse box or circuit breaker box.
1
Prepare Pre-Installed Crossbar
2
Unscrew the two (2) thumb screws (CC) remove the washers (FF)
and keep them for later. Remove the crossbar (BB).
Mount Crossbar
3
Mount crossbar (BB) to outlet box by inserting the two J-box
mounting screws (DD) through slots in crossbar(BB).
Adjust Crossbar
4
Position the crossbar (BB) for fixture mounting screws to
horizontal position. Tighten both middle screws on crossbar (BB)
to hold the crossbar in place.

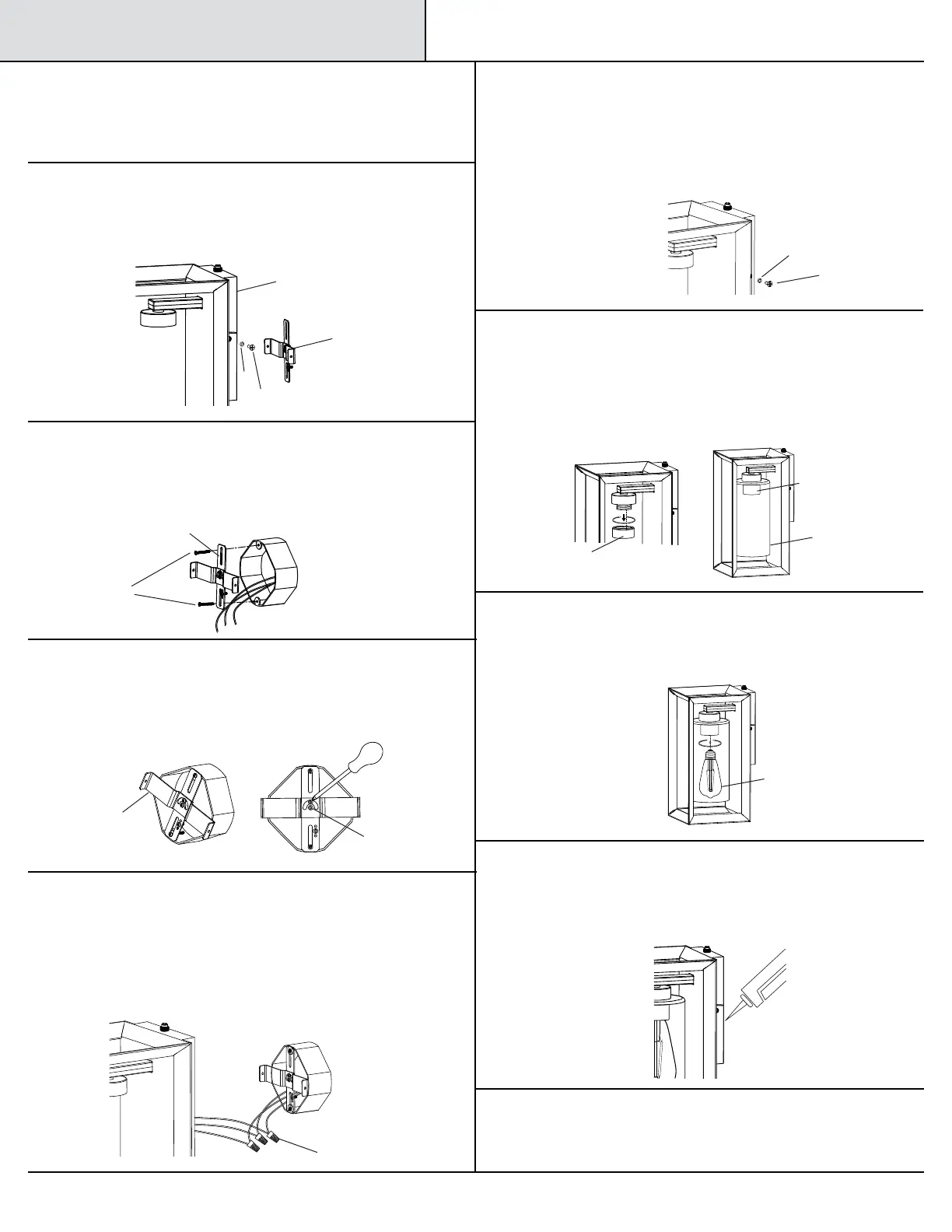

Installation
Mount the Fixture Body
6
Use the two fixture thumb screws (CC) with rubber washers (FF)
to secure fixture onto the crossbar. Use the guides located on
the fixture's back plate to help align the thumb screws with
the openings.
Install Glass Shade
7
Turn the retaining ring counter-clockwise to remove. Insert
the glass shade (II) into the lamp holder and hold. Screw the
retaining ring onto the lamp holder by turning it clockwise
until the glass shade is securely in place.
Turn Power On
10
Turn on the power at the switch and fuse box or circuit breaker box.
Seal Fixture
9
Once fixture is secured apply a silicone sealant around the fixture
and mounting surface to prevent water or moisture from entering
into the fixture.
Install Light Bulb
8
Screw in provided LED light bulb (HH). Make sure you’re
firmly holding the housing while you do this.
Connect Wires
5
Lift the fixture to the outlet box. Using the wire nuts (EE)
provided, connect the green or green with yellow stripe ground
wire from the fixture to the house ground. Connect the white
fixture wire to the neutral supply wire and connect the black
fixture wire to the live wire.
AA
FF
CC
Crossbar Center Screws
BB
EE
CC
II
HH
FF
BB
DD
Crossbar for fixture
mounting screw (BB)
Retaining Ring
Retaining Ring
Please contact feit.com/help for further assistance.
