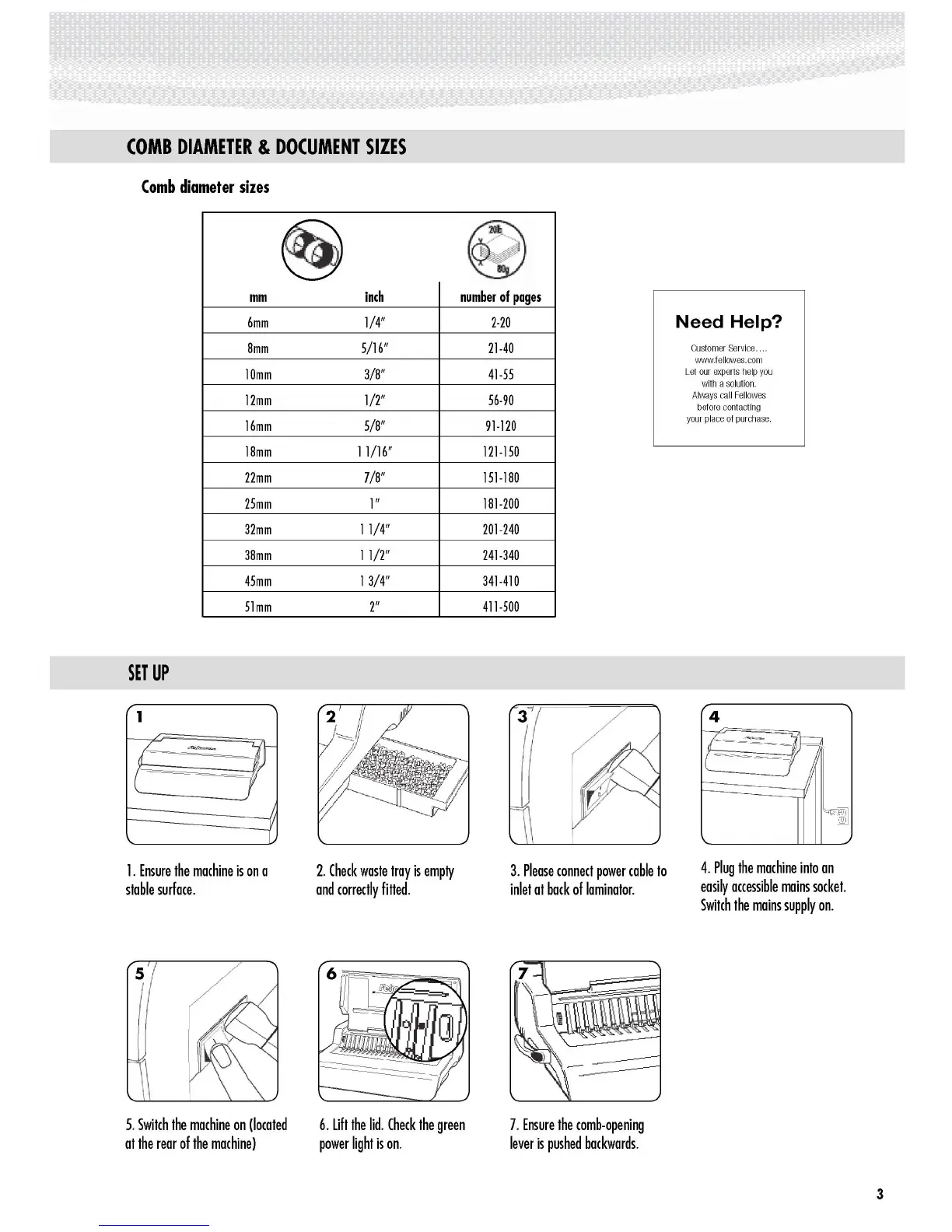

COMB DIAMETER & DOCUMENT SIZES
Comb diameter sizes
.' ,"
(§
~
mm inch number of pages
6mm 1/4"
2-20
Need Help?
8mm 5/16"
21-40
Customer Service ...
vvvvw .fello w es.com
Let our experts help you
10mm 3/8"
41-55
w ith a solution.
AWiays call Fellowes
12mm 1/2"
56-90
before contacting
your place of purchase.
16mm 5/8"
91-120
18mm 11/16"
121-150
22mm 7/8"
151-180
25mm
1"
181-200
32mm 1 1/4"
201-240
38mm 1 1/2"
241-340
45mm 1 3/4"
341-410
51mm
2" 411-500
SET UP
3 "'1
1 4
2_ Check waste tray is empty
and correctly filled_
1_ Ensure the machine is on a 3. Please connect power cable to
4_ Plug the machine into an
stable surface_ inlet at back of laminator_
easily accessible mains socket.
Switch the mains supply on_
5_ Switch the machine on (located
at the rear of the machine)
6_ lift the lid_ Check the green
power light is on_
7_ Ensure the comb-opening
lever is pushed backwards_
3
http://www.monomachines.com
http://www.monomachines.com
