Fellowes Quasar E 500 - Before You Bind; Pre-binding Preparations; Steps to Bind; Binding Process

~,,~~ ENGLISH

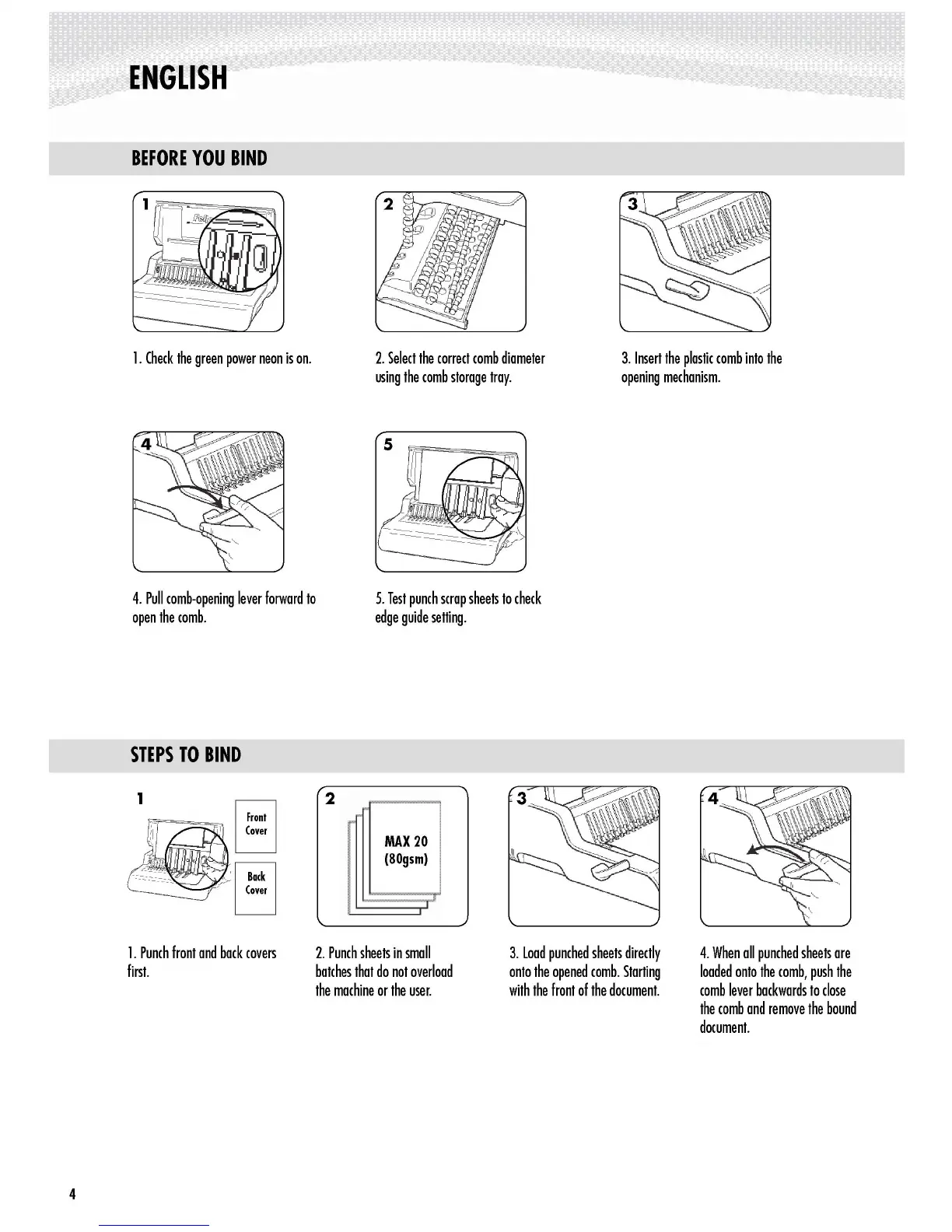

BEFORE YOU BIND
1. Check the green power neon is on.
2. Select the correct comb diameter
using the comb storage tray.
3. Insert the plastic comb into the
opening mechanism.
4. Pull comb-opening lever forward to
open the comb.
STEPS TO BIND
1
Front
(over
C
,~;,'
-'-~-_Cc_~-_~ /~ Buck
(over
1. Punch front and back covers
first.
5. Test punch scrap sheets to check
edge gUide selling.
2
MAX 20
(80gsm)
2. Punch sheets in small
batches that do not overload
the machine or the user.
3. load punched sheets directly
onto the opened comb. Starting
with the front of the document.
4. When all punched sheets are
loaded onto the comb, push the
comb lever backwards to close
the comb and remove the bound
document.
4
http://www.monomachines.com
http://www.monomachines.com
ENGLISH
BEFORE YOU BIND
1. Check the green power neon is on.
4. Pull comb-opening lever forward to
open the comb.
STEPS TO BIND
1
Front
(over
Bock
(over
2
2. Select the correct comb diameter
using the comb storage tray.
5. Test punch scrap sheets to check
edge guide selling.
MAX 20
(80gsm)
3. Insert the plastic comb into the
opening mechanism.
4
1. Punch front and back covers
first.
2. Punch sheets in small
batches that do not overload
the machine or the user.
3. load punched sheets directly
onto the opened comb. Starting
with the front of the document.
4. When all punched sheets are
loaded onto the comb, push the
comb lever backwards to close
the comb and remove the bound
document.
