Felt AR - AR Mechanical Compatible Frame; Mechanical Cabling Instructions

-25-
1 4
2
5
3 6 7 8

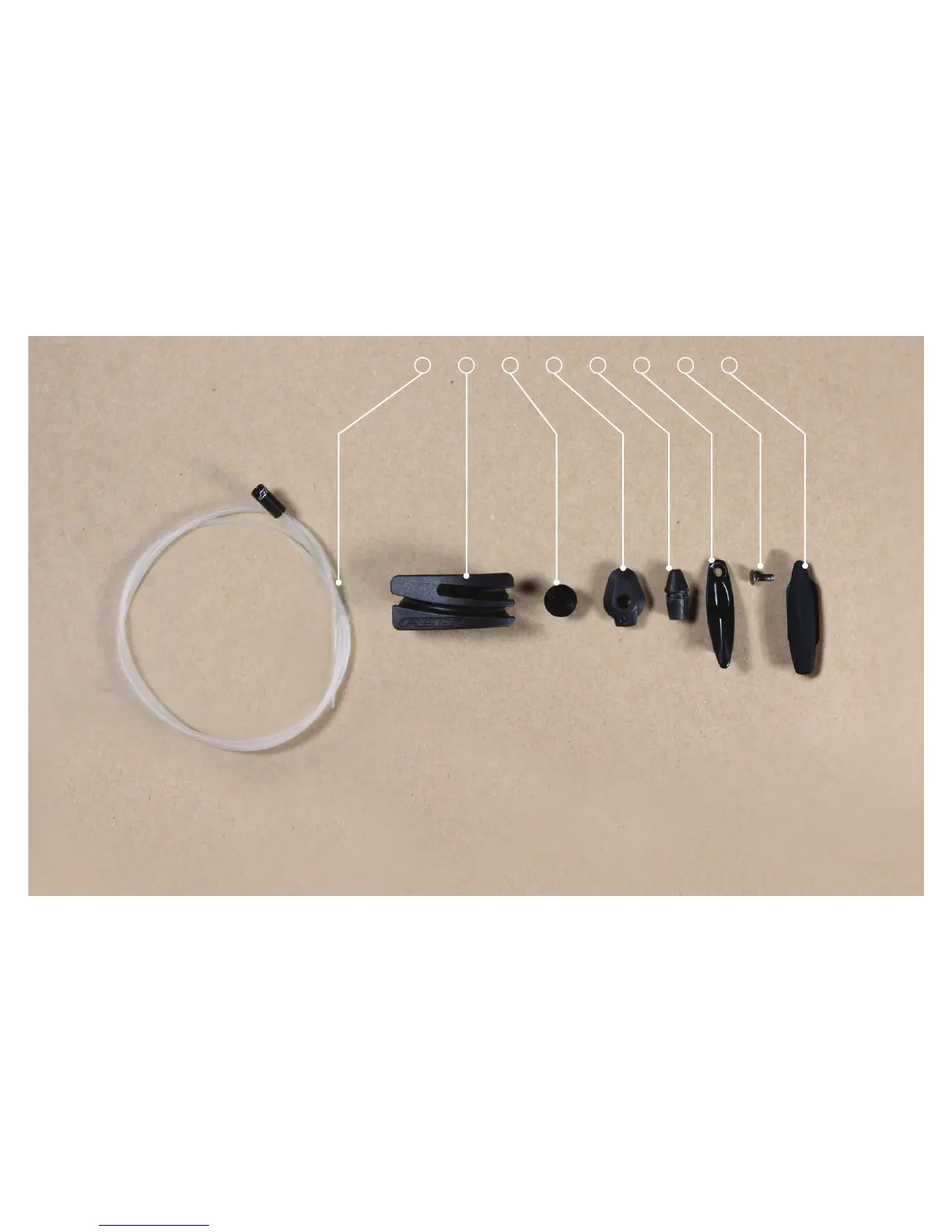

1. Mousetail Ferrule
- DT - Front Derailleur - 800mm
- DT - Rear Derailleur - 300mm
- CS - Rear Derailleur - 550mm
2. Bottom Bracket Cable Guide
3. Rear Dropout Cable Stop
4. Single Hole Top Tube Grommet
5. Front Derailleur Grommet
6. Downtube Cable Stop (x2)
7. Downtube Cable Stop Bolt (x2)
8. Downtube Grommet
AR Cable Routing & Small Parts
Part IV
AR Mechanical Compatible Frame
Mechanical Cabling Instructions
