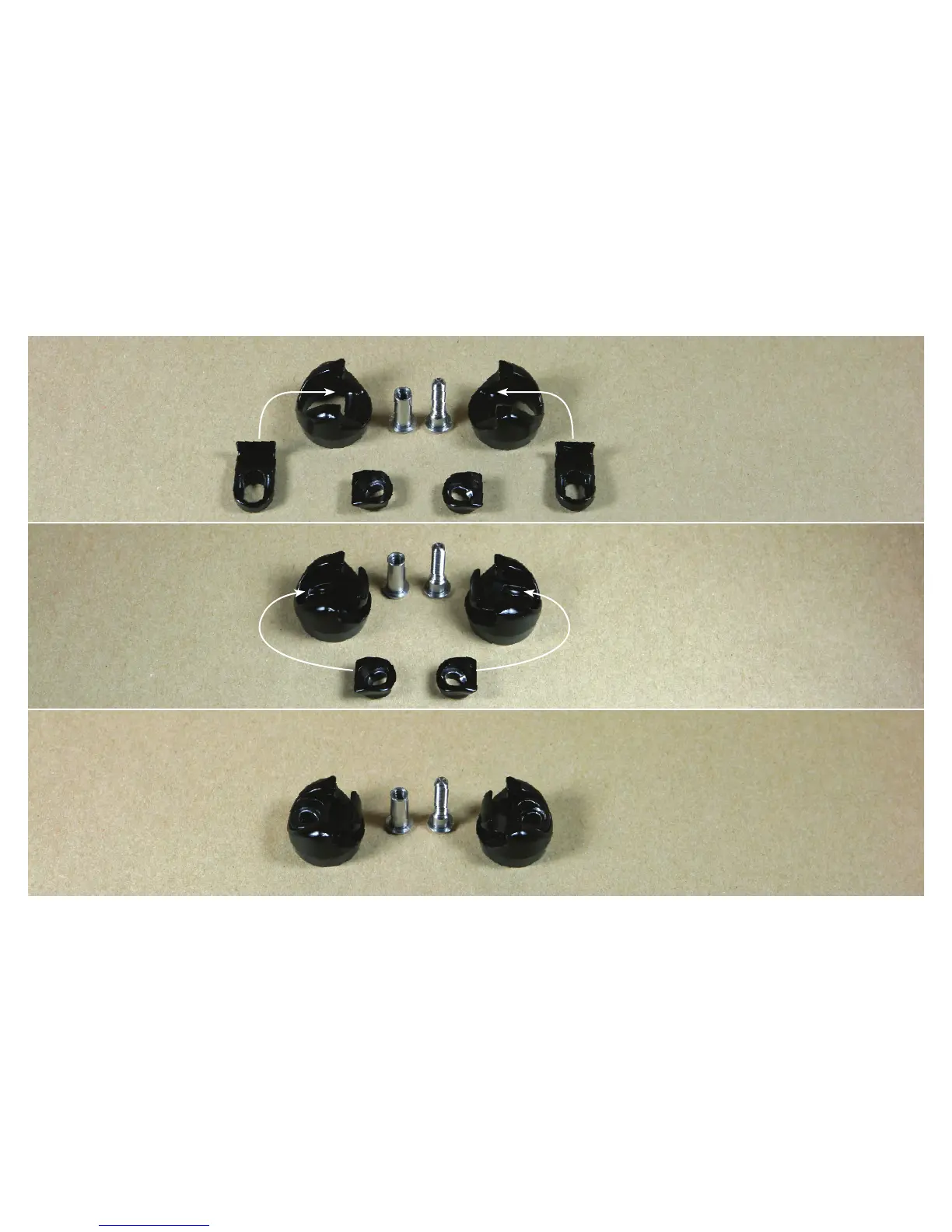

Locate the two AR saddle clamp
Lowers and place each onto a
saddle clamp Upper, aligning
the holes with the oval-shaped
holes of the saddle clamp
Uppers as illustrated below.
Step 2
The parts should appear as the
image on the left, in two stacks
of three pieces, with the bolt,
nut and seatpost remaining.
Step 3
Locate the two AR saddle clamp
Uppers and place each into a
saddle clamp adjustment Head
Half, positioning them so the
hooked surfaces are adjacent
and can grip a seatpost rail.
Step 1
-2-
