Felt AR - Page 9

Slide the Inner Splined Adjustment
Cylinder into the Outer Splined
Cylinder as pictured.
Slide the Inner and Outer Splined
Adjustment Cylinder assembly into
the VR seatpost as pictured.

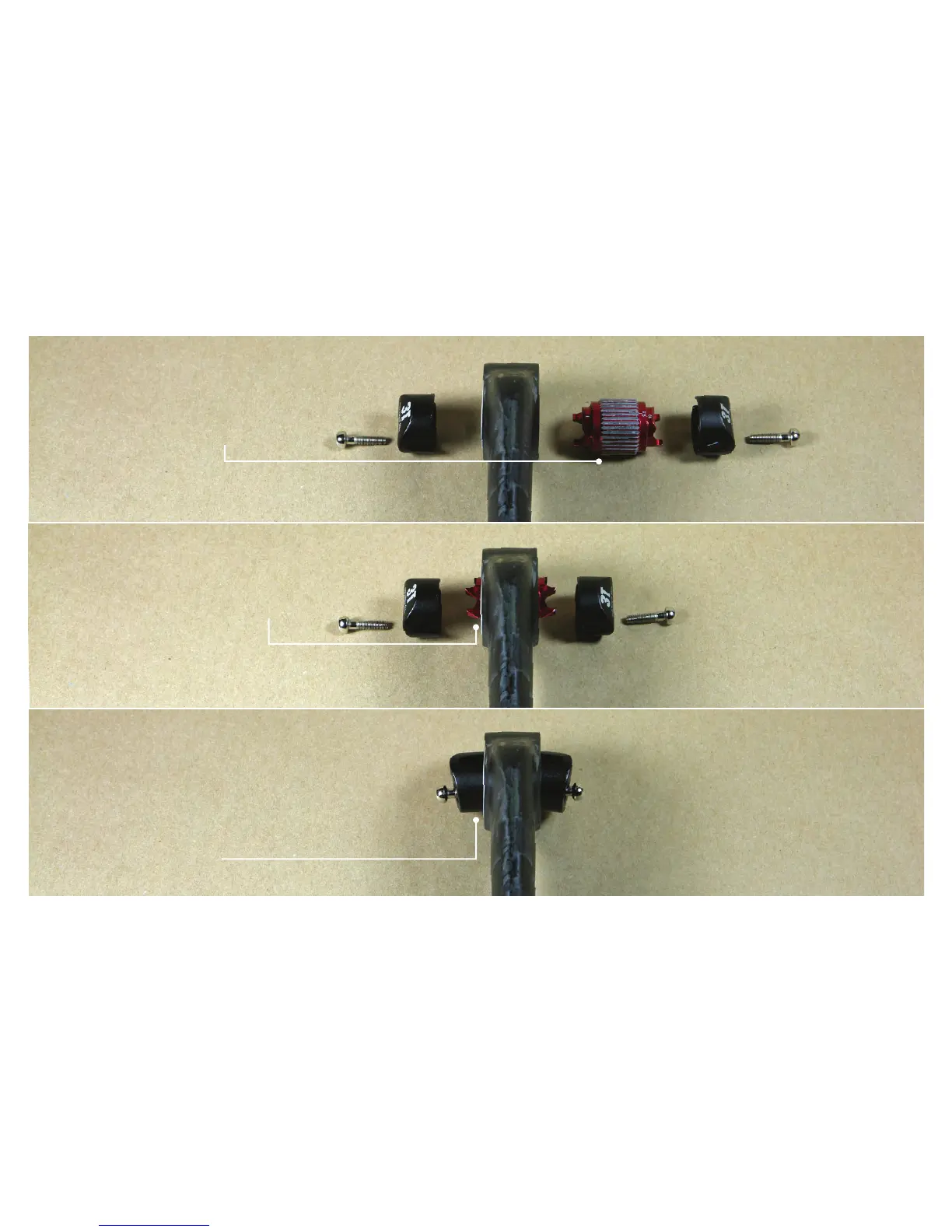

Place the Outer Clamp piecs over either end of the
Inner and Outer Adjustment Cylinder assembly and
insert binder bolts through the hole on the face of
the Outer Clamp pieces as pictured. Align threads
on binder bolts with the threads on Inner Splined
Adjustment Cylinder.
Step 2
Step 3
Step 1
Note: The 3T Outer Clamp
parts supplied are for 7mm
round rails. Optimal Outer
Clamp pieces are available
for other saddle rail options
from 3T.
