Acoustasonic™ 15
Acoustasonic™ 15
The Acoustasonic™ 15 amplifier offers portable amplification for
acoustic-electric guitar and microphone. It’s simple and flexible
enough for a variety of musical performance or basic public
address.
Features include:
• 15 Watts of output power
• 6.5 inch Special Design full-range speaker with whizzer cone
for enhanced high-frequency response
• Two channels (XLR microphone and ¼” instrument) with
individual volume controls
• Chorus effect (for instrument channel) with level control and
on/off switch
• Bass, Middle, and Treble tone controls
• ¼” headphone output
• Classic Fender cosmetic treatment with brown textured vinyl
covering and chrome hardware for durability and great looks
• One-year transferable warranty (US and Canada, other
territories may vary)
www.fender.com

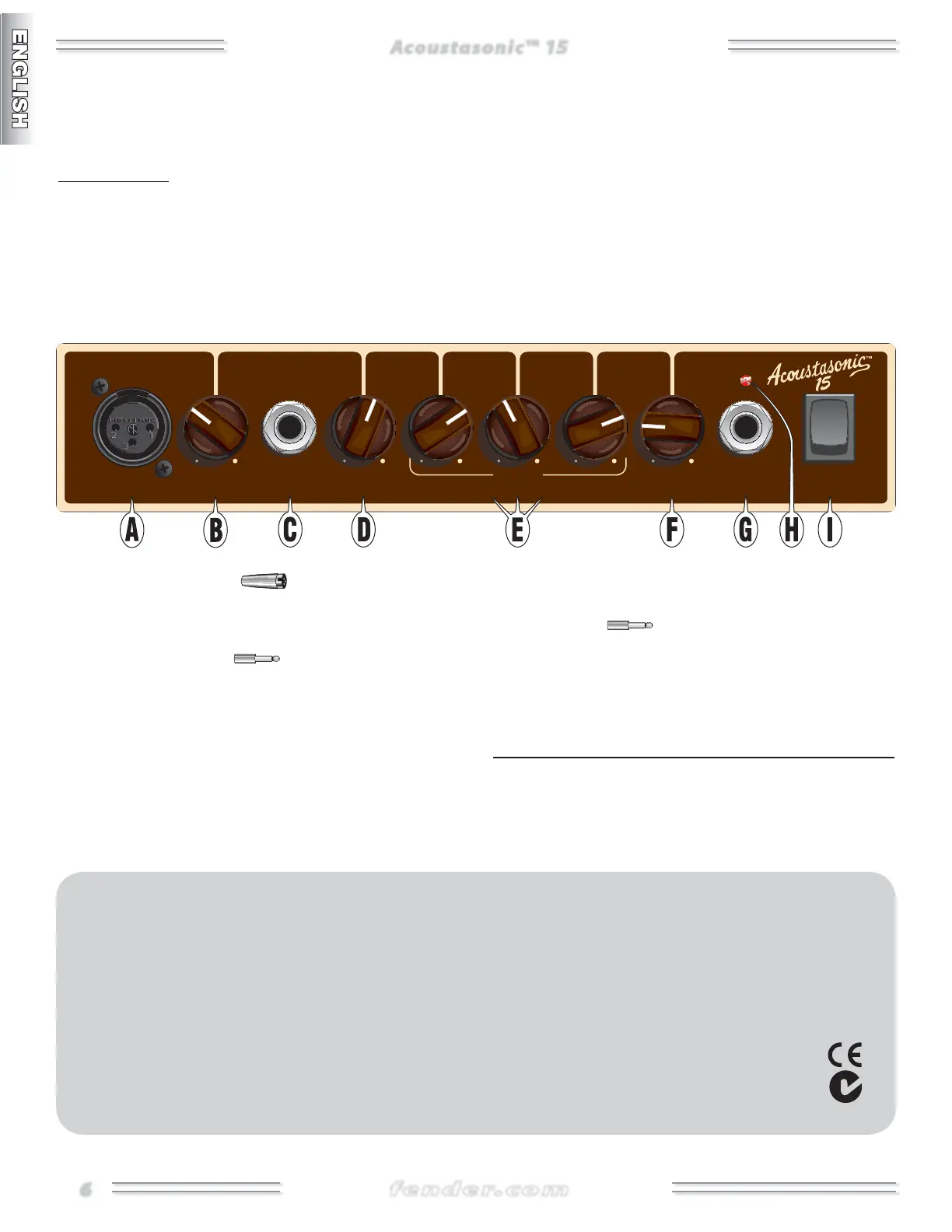

A. CHANNEL  INPUT  Plug your microphone or
acoustic guitar in here.
B. VOLUME — Adjusts the volume level of Channel .
C. CHANNEL  INPUT —
Plug your acoustic guitar in
here.
D. VOLUME — Adjusts the volume level of Channel .
E. BASS / MIDDLE / TREBLE  Adjusts the tonal character of
both channels.
F. CHORUS CHANNEL  ONLY  Rotate counter-clockwise
for a slow and deep chorus effect. Rotate clockwise for a fast
and mild chorus effect. Rotate fully counter-clockwise to turn
chorus off.
G. PHONES —
Plug your headphones in here. The
internal speaker is disabled while the PHONES jack is in use.
H. POWER INDICATOR  Illuminates when the unit is on.
I. POWE R  Switches the unit on-off.
Rear Panel
POWER CORD  Connect to a grounded outlet in accordance with
the voltage and frequency ratings specified on the rear panel of
your amplifier.
Specifications
TYPE: PR 2638
PART NUMBERS: 2313700000 (120V, 60Hz) 2313700900 (120V, 60Hz) DS 2313701900 (110V, 60Hz) TW DS 2313703900 (240V, 50Hz) AUS DS
2313704900 (230V, 50Hz) UK DS 2313705900 (220V, 50Hz) ARG DS 2313706900 (230V, 50Hz) EUR DS 2313707900 (100V, 50/60Hz) JPN DS
2313708900 (220V, 50/60Hz) CN DS 2313709900 (220V, 60Hz) ROK DS 2313713900 (240V, 50Hz) MA DS
POWER: REQUIREMENTS: 35W OUTPUT: 15W RMS into 8Ω
INPUT IMPEDANCE: CHANNEL 1: 22kΩ CHANNEL 2: 1MΩ
SPEAKER: One 8Ω, 6.5" (16.5 cm)
DIMENSIONS: HEIGHT: 9.84 in (25.0 cm) WIDTH: 13.39 in (34.0 cm) DEPTH: 7.28 in (18.5 cm)
WEIGHT: 10.5 lb (4.76 kg)
Product specifications are subject to change without notice.
