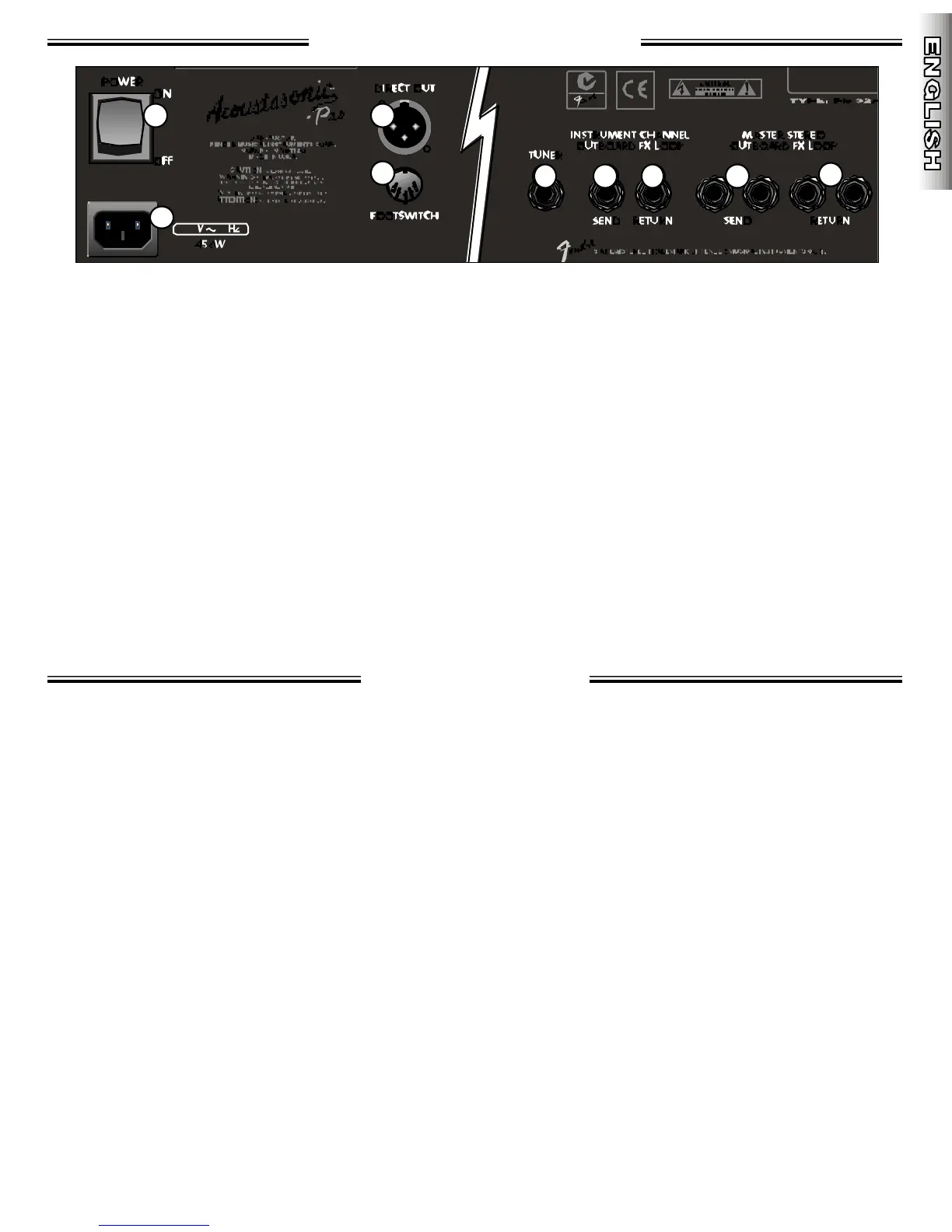

32.POWER SWITCH - Turns the AC power ON and OFF.
When the switch is OFF, your Acoustasonic Pro amplifi-
er is completely shut down.
33.LINE CORD - Your Acoustasonic Pro amplifier is
equipped with an IEC grounding type supply cord and
must be connected to a grounded AC receptacle in
accordance with voltage and frequency listed on the
rear panel of amplifier.
34.DIRECT OUT - This balanced, XLR-male, line-level out-
put jack is designed to feed the Acoustasonic Pro’s sig-
nal to an external power amplifier or recording console.
35.FOOTSWITCH (Included) - Plug-in connection for the
footswitch. The footswitch allows the remote selection
of the FX presets.
36.TUNER OUT - This 1/4 inch, unbalanced, TS* output
jack is designed to send your guitar's signal to your
instrument tuner (not included).
37.SEND (instrument channel only) - This 1/4 inch, unbal-
anced, TS*, output jack is designed to send a mono sig-
nal to an external signal processing device, such as a
digital delay or a chorus unit.
38.RETURN (instrument channel only) - This 1/4 inch,
unbalanced, TS*, input jack is designed to accept mono
signal from an external processing device.
39.SEND (left/right master stereo) - These 1/4 inch, unbal-
anced, TS*, output jacks are designed to send a stereo
signal to an external signal processing device.
40.RETURN (left/right master stereo) - These 1/4 inch,
unbalanced, TS*, input jacks are designed to accept
stereo signal from an external processing device.
* (T=Tip, S=Sleeve)
TYPE: PR 328
PART NUMBER: 022-1300-000 (120V, 60Hz) USA, 022-1330 (240V, 50 Hz) Aust, 022-1340 (230V, 50Hz) UK,
022-1360-000 (230V, 50 Hz) Eur, 022-1370-000 (100V, 50/60Hz) Jpn
POWER REQUIREMENTS: 450W
POWER AMPLIFIER SECTION: OUTPUT: 80W per channel, (160W R.M.S. total) into 8Ω @ <.2% T.H.D., both channels driven
SENSITIVITY: 186mV (both channels)
PREAMP SECTION: INPUT IMPEDANCE: 10MΩ (Instrument), 1.82kΩ (Mic), 18.2kΩ (Line/Inst)
TONE CONTROLS: TREBLE: +/-15dB @ 15kHz
MID: +/-12dB @ 1kHz
BASS: +/-12dB @ 100Hz
FEEDBACK NOTCH1: -10dB from 63Hz to 400Hz (Instrument Channel)
FEEDBACK NOTCH 2: -10dB from 150Hz to 825Hz (Instrument Channel)
STRING DYNAMICS: 0 to -15dB @ 6.3kHz (Instrument Channel)
PHANTOM VOLTAGE: +48V DC (Mic)
SPEAKER COMPLEMENT: Two Fender Special Design 8” speakers (P/N 051016)
Single Piezo Horn (P/N 049260)
DIMENSIONS: HEIGHT: 18 in. (46 cm)
WIDTH: 24 in. (61 cm)
DEPTH: 12 in. (30.5 cm)
WEIGHT: 45 lbs. (20.4 kg)
Product specifications are subject to change without notice.
