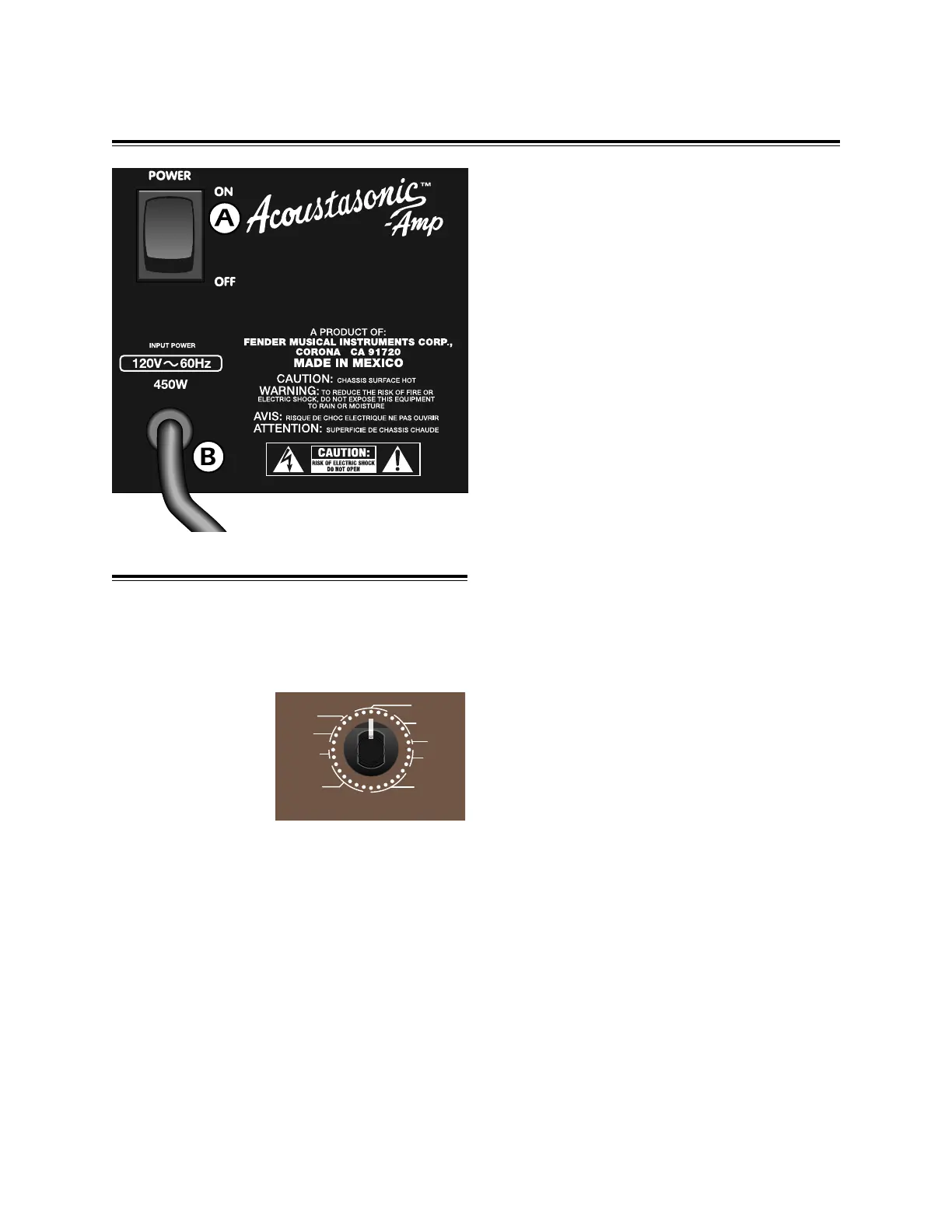

ACOUSTASONIC SFX REAR PANEL
A. POWER SWITCH - Turns the AC power ON and
OFF. When the switch is OFF, your Acoustasonic SFX
amplifier is completely shut down.
B. LINE CORD - Your Acoustasonic SFX amplifier is
equipped with a grounding type supply cord to
reduce the possibility of shock hazard. Be sure to
connect it to a grounded AC receptacle. The line
cord should be connected to a suitable power source
in accordance with voltage and frequency as shown
in the power rating on the rear panel. DO NOT
ALTER THE AC CORD OR PLUG.
DSP EFFECTS CHART
Below is a listing of all effects available on the
Acoustasonic SFX. To choose among these various
effects simply rotate the dial to the desired effect.
Remember both the DSP Send and DSP Return
knobs must be above their minimum positions in
order for the effect to
be heard. (To change
from slower to faster
sweeps, shorter to
longer delays or
smaller to larger
reverbs, turn the DSP
effects selection knob
clockwise.)
Reverb- 1 - Medium Room / Short Delay
Delay 2 - Medium Room / Medium Delay
3 - Medium Room / Long Delay
4 - Medium Hall / Short Delay
5 - Medium Hall / Medium Delay
6 - Medium Hall / Long Delay
Reverbs
Room 1 - Small
2 - Large
Hall 1 - Small
2 - Medium
3 - Large
Plate 1 - Small
2 - Large
Chorus 1 - Slow Sweep
2 - Slow to Medium Sweep
3 - Medium Sweep
4 - Medium to Fast Sweep
5 - Fast Sweep
Flange 1 - Slow Sweep
2 - Slow to Medium Sweep
3 - Medium to Fast Sweep
4 - Fast Sweep
Slap Quick, Single Echo
Delay 1 - Short Delay
2 - Medium Delay
3 - Long Delay
Reverb- 1 - Medium Room / Slow Sweep
Chorus 2 - Medium Room / Medium Sweep
3 - Medium Room / Fast Sweep
4 - Large Hall / Slow Sweep
5 - Large Hall / Medium Sweep
6 - Large Hall / Fast Sweep
DSP EFFECTS
HALL
ROOM
PLATE
CHORUS
SLAP
DELAY
REVERB
DELAY
REVERB
CHORUS
FLANGE
