Fender Passport mini User Manual

6
mini

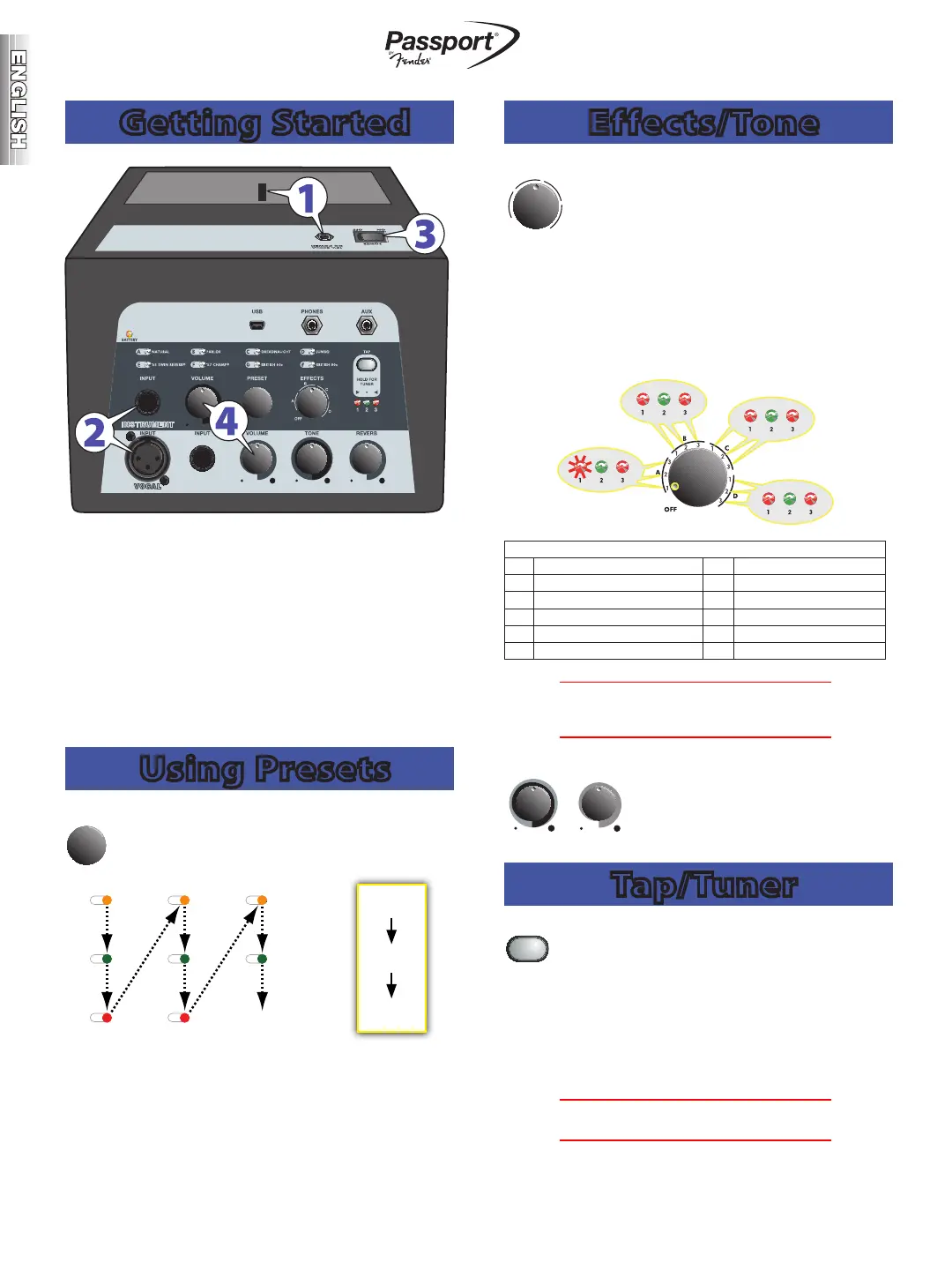

Getting Started
G
F
E
D
C
B
A
1 2
REVTONEVOLUME
VOLUME
INPUTINPUT
INPUT
PHONES AUXUSB
PRESET EFFECTS
3
OFF
A
D
B
C
NATURAL
BATTERY
PARLOR
DREADNAUGHT
JUMBO
BLACKFACE
TWEED
BRITISH 1
BRITISH 2
TAP
HOLDFOR
TUNER
VOLUMEINPUT PRESET EFFECTS
To set up your Passport® mini amplifier:
1. Plug in the power adapter cord -OR- install six C batteries.
2. Plug your guitar into the INSTRUMENT input jack -AND- plug your
microphone into one of the VOCAL input jacks.
3.
Press the POWER switch to "ON" to turn on the amplifier.
4. Adjust the INSTRUMENT and VOCAL volume levels.
♫
Using Presets
NATURAL
‘65 TWIN REVERB
®
PARLOR
‘57 CHAMP
®
DREADNAUGHT
BRITISH 60’s
JUMBO
BRITISH 80’s
NATURAL
‘65 TWIN REVERB
®
PARLOR
‘57 CHAMP
®
DREADNAUGHT
BRITISH 60’s
JUMBO
BRITISH 80’s
G
F
E
D
C
B
A
G
F
E
D
C
B
A
G
F
E
D
C
B
A
NATURAL
‘65 TWIN REVERB
®
PARLOR
‘57 CHAMP
®
DREADNAUGHT
BRITISH 60’s
JUMBO
BRITISH 80’s
PRESET
OFF
A
D
B
C
EFFECTS
REVERB
TONE
Use the PRESET knob to select one of 24 presets for the
INSTRUMENT channel. Presets are stored in three banks,
AMBER, GREEN and RED, in the following order:
AMBER
GREEN
RED
. . .
NATURAL PARLOR
NATURAL PARLOR DREADNAUGHT
C
B
A
C
B
A
B
A
NATURAL PARLOR DREADNAUGHT
Each preset is based on one of the eight amplifier types labeled next to
each of the preset LEDs and may include effects which can be temporar-
ily changed with the EFFECTS knob.
PRESET NOTES: Please see page 22 for a complete list of preset names
with their associated amp models and effects.
♫
Effects/Tone
NATURAL
‘65 TWIN REVERB
®
PARLOR
‘57 CHAMP
®
DREADNAUGHT
BRITISH 60’s
JUMBO
BRITISH 80’s
NATURAL
‘65 TWIN REVERB
®
PARLOR
‘57 CHAMP
®
DREADNAUGHT
BRITISH 60’s
JUMBO
BRITISH 80’s
G
F
E
D
C
B
A
G
F
E
D
C
B
A
G
F
E
D
C
B
A
NATURAL
‘65 TWIN REVERB
®
PARLOR
‘57 CHAMP
®
DREADNAUGHT
BRITISH 60’s
JUMBO
BRITISH 80’s
PRESET
OFF
A
D
B
C
EFFECTS
REVERB
TONE
Use the EFFECTS knob to temporarily change effects for
the currently active INSTRUMENT channel preset. Each
time you turn the PRESET knob to select a different pre-
set, the effects are reset to their pre-programmed default
selection for the preset. The position of the EFFECTS knob
will NOT show the actual effect selection until the
EFFECTS knob is turned. You can program the default effects for each
preset as well as see the names and details of each effect using Fender®
FUSE™ software.
The three numbered LEDs below the TAP button indicate exactly which
effect position (1, 2, or 3) is being selected within each of the four let-
tered selection ranges (A, B, C, D). For example, effect "A-1" is shown
below:
EFFECTS SELECTIONS
A1 Small Room Reverb C1 Chorus
A2 Large Hall Reverb C2 Flanger
A3 Fender '65 Spring Reverb C3 Phaser
B1 Tape Echo D1 Vintage Tremolo
B2 Tape Echo + Room Reverb D2 Vibratone
B3 Tape Echo + Chorus D3 Vibratone + Room Reverb
♫
Passport® mini effects can be viewed and fully customized using
Fender® FUSE™ software installed on your Mac or Windows
computer.
NATURAL
‘65 TWIN REVERB
®
PARLOR
‘57 CHAMP
®
DREADNAUGHT
BRITISH 60’s
JUMBO
BRITISH 80’s
NATURAL
‘65 TWIN REVERB
®
PARLOR
‘57 CHAMP
®
DREADNAUGHT
BRITISH 60’s
JUMBO
BRITISH 80’s
G
F
E
D
C
B
A
G
F
E
D
C
B
A
G
F
E
D
C
B
A
NATURAL
‘65 TWIN REVERB
®
PARLOR
‘57 CHAMP
®
DREADNAUGHT
BRITISH 60’s
JUMBO
BRITISH 80’s
PRESET
OFF
A
D
B
C
EFFECTS
REVERB
TONE
NATURAL
‘65 TWIN REVERB
®
PARLOR
‘57 CHAMP
®
DREADNAUGHT
BRITISH 60’s
JUMBO
BRITISH 80’s
NATURAL
‘65 TWIN REVERB
®
PARLOR
‘57 CHAMP
®
DREADNAUGHT
BRITISH 60’s
JUMBO
BRITISH 80’s
G
F
E
D
C
B
A
G
F
E
D
C
B
A
G
F
E
D
C
B
A
NATURAL
‘65 TWIN REVERB
®
PARLOR
‘57 CHAMP
®
DREADNAUGHT
BRITISH 60’s
JUMBO
BRITISH 80’s
PRESET
OFF
A
D
B
C
EFFECTS
REVERB
TONE
Use the TONE and REVERB knobs to adjust
the tone and reverb levels, respectively, for
the VOCAL channel.
Tap/Tuner
TAP
1 2 3
HOLDFOR
TUNER
The TAP button can be used to tap in the delay time or mod-
ulation rate setting for the currently active effect. When a
delay type effect is active, the TAP button will blink green in
sync with the delay time setting. When a modulation type effect is
active, the TAP button will blink red in sync with the modulation rate set-
ting. (If both delay and modulation effects are simultaneously active, the
TAP button will only indicate and control the delay effect.
To use the TAP button to adjust the effect time/rate interval, simply tap
the TAP button twice in sync with the desired interval. Pressing the TAP
button only one time will set the interval to the maximum value.
♫
Effect time/rate intervals can be adjusted with total precision
using Fender® FUSE™ software.
中文 中文

Fender Passport mini Specifications

General

AC input voltage	230 V
Power source type	AC
XLR in	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Impedance	8 Ω
Amplifier class	-
RMS rated power	7 W
Audio output channels	- channels
Product color	Black
Housing material	Plastic

Weight and Dimensions

Depth	170 mm
Width	240 mm
Weight	3300 g
