Fender SHIELDS BLENDER User Manual

ORIGINAL BLENDER MODE
5
Original Blender mode is the default state of the pedal.
Using the same circuit as the original Fender Blender, this
mode splits the input into clean and fuzz signals that can
be blended to preference using the ve controls found in
the section labeled FUZZ.

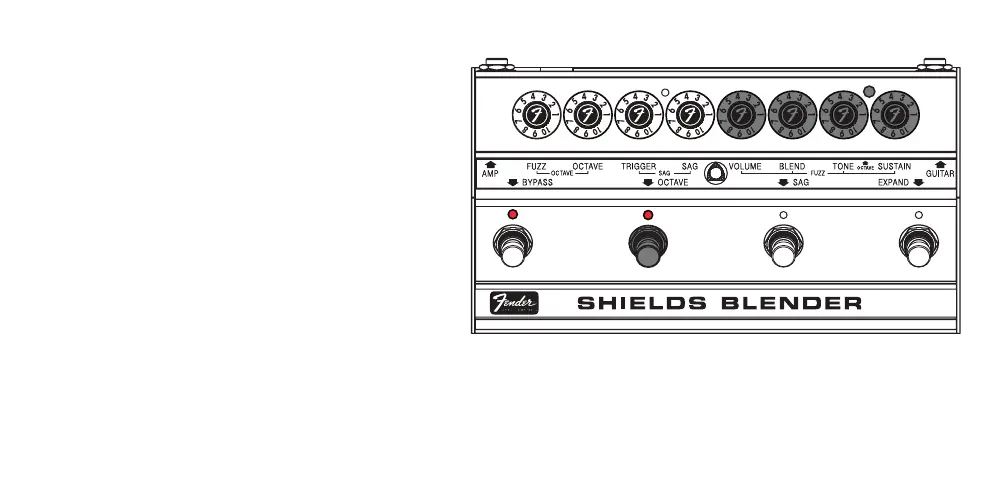

The four control knobs found in the FUZZ section are
labeled identical to the original Fender Blender and serve
the same functions, controlling the pedal’s VOLUME,
BLEND, TONE and SUSTAIN. The newly added OCTAVE-UP
button turns the octave-up voice in the fuzz signal on and
o (not an option on the original Fender Blender),
creating a new fuzz voice with no octave added. This
button illuminates white when octave-up fuzz is on.
To set the pedal to Original Blender Mode, turn on the eect (indicated by the Bypass Footswitch LED illuminating red) and
press the Octave Footswitch until the Octave Footswitch LED illuminates red. The Octave Footswitch LED will remain
illuminated red even when the eect is bypassed to indicate the mode of the pedal when you turn it back on. Pressing the
Octave Footswitch again will change the pedal to Octave Blender Mode.

Fender SHIELDS BLENDER Specifications

General

Bypass	True Bypass
Power	9V DC Power Supply (Not Included)
Brand	Fender
Model	SHIELDS BLENDER
Controls	Blend
Input	1 x 1/4"
Output	1 x 1/4"
