Fender Super Champ-XD - Wiring Connections to R84

WIRING TO R84

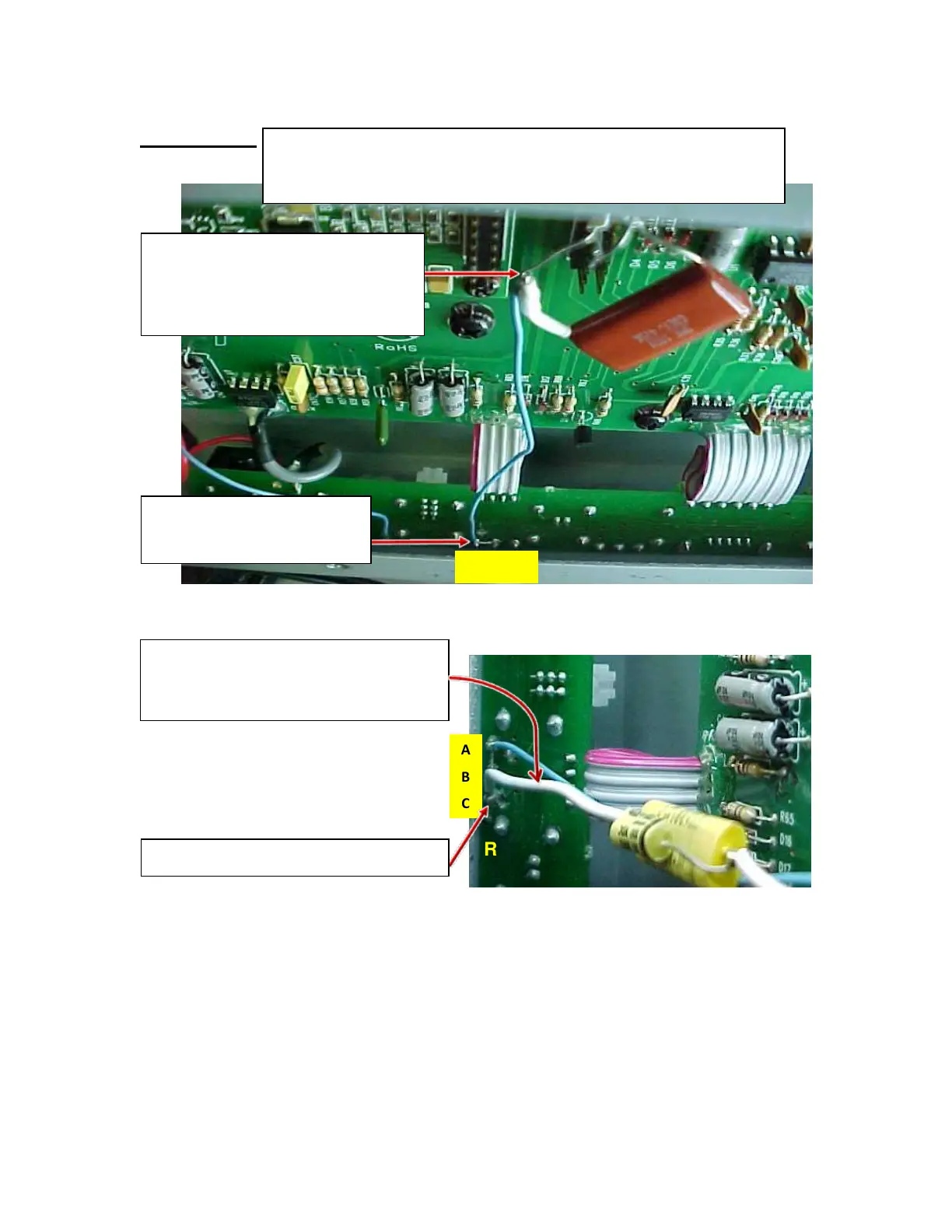

Figure11
Figure 12
A B C
A
B
C
1. Cut a wire about 4” long. Strip about 1/8” from one end and ¼” from
the other. Bend the ¼” stripped portion to 90º in relation to the insulated
part. Tin both ends and the three terminals of R84.
4a. Slide piece of HST over the entirety
of one lead of the .03uF capacitor pair
created in a previous step to cover all but
about 1/6
th
inch at the end.
R84
R84
2. Solder the 1/8” stripped end to the
bare wire between the 10K resistor
and P5, pin 1, close to the resistor as
shown in Figure 11 (refer to Figure 7
also).
3. Solder the ¼” tinned end
to terminals A and B of R84
as shown.
4b. Solder this end to terminal C of R84.
