WIRING TO R85

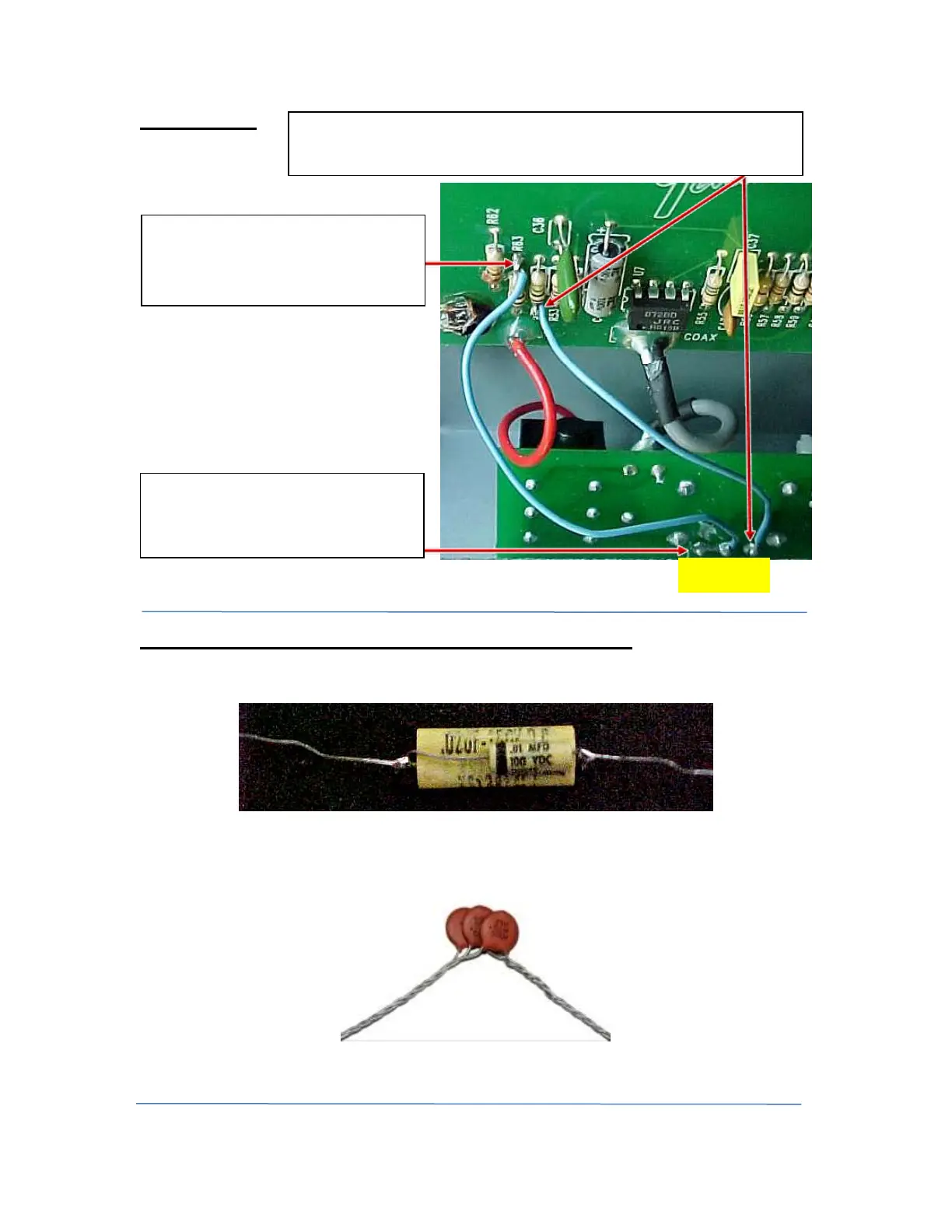

Figure 9
CREATE A .03 µF CAPACITOR (two different combinations shown)
A) Using a .01 µF and .02 µF to create the .03uF needed, solder the caps in parallel like this:
Figure 10a – Parallel .01 µF and .02 µF Capacitors
B) Using three .01 µF caps to create the .03uF needed, twist the leads together like this and
solder them:
Figure 10b – Parallel .01 µF Capacitors
1. Cut a wire about 4” long. Strip 1/16” from each end. Connect one
end to terminal C of R85 and the other end to the left (lower) end of
R52.
2. Cut a wire to about 4”. Strip
approximately 1/8” from one end of
the wire and solder it to the right
(upper) end of R63.
3. Strip approximately 1/4” from the
other end of the wire & bend it at
about 90º and tin it. Now solder it to
terminals A and B of R85 as shown.
To Next Page
