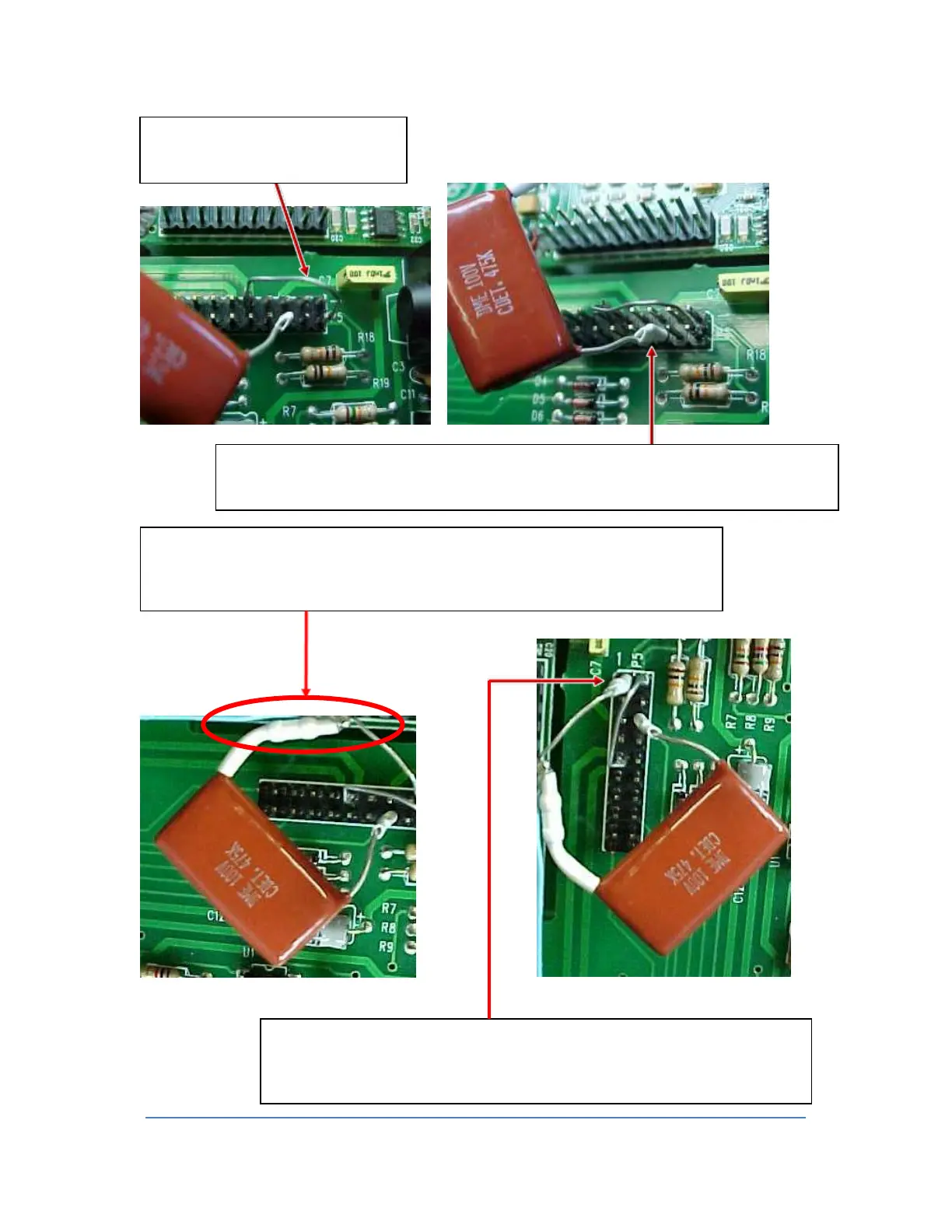

Figure 6a Figure 6b
.
Figure 7 Figure 8
Connect a bare wire from P5 pin
11 (L-out-/R-out) to P5 pin 5
(AGND) as shown in Figure 6a.
Trim one end of the 4.7 (or 5) µF cap to ½-inch. Tin P5 pin 13 and the trimmed lead
on the cap. Slide a ¼” piece of HST over the lead. Solder the lead to P5 pin 13. Slide
the HST down over the P5 pin and shrink it there. Finished step is shown in Figure 6b.
Cut the free end of the cap and one end of the 10K resistor to ¼”. Tin each of
these leads, lay them against each other lengthways and solder them together.
Slide a 5/8” piece of HST over the resistor and the connection all the way to the
cap body and shrink it there. See Figure 7 circled area for the finished step.
Slide a ¼-inch piece of HST over the bare wire from the 10K resistor.
Solder the wire to P5, Pin 1, as shown in Figure 8, keeping the HST clear of
the heated area of the wire until cool. Then, slide the HST over the P5 pin
and shrink it there. The finished step is shown in Figure 8.
