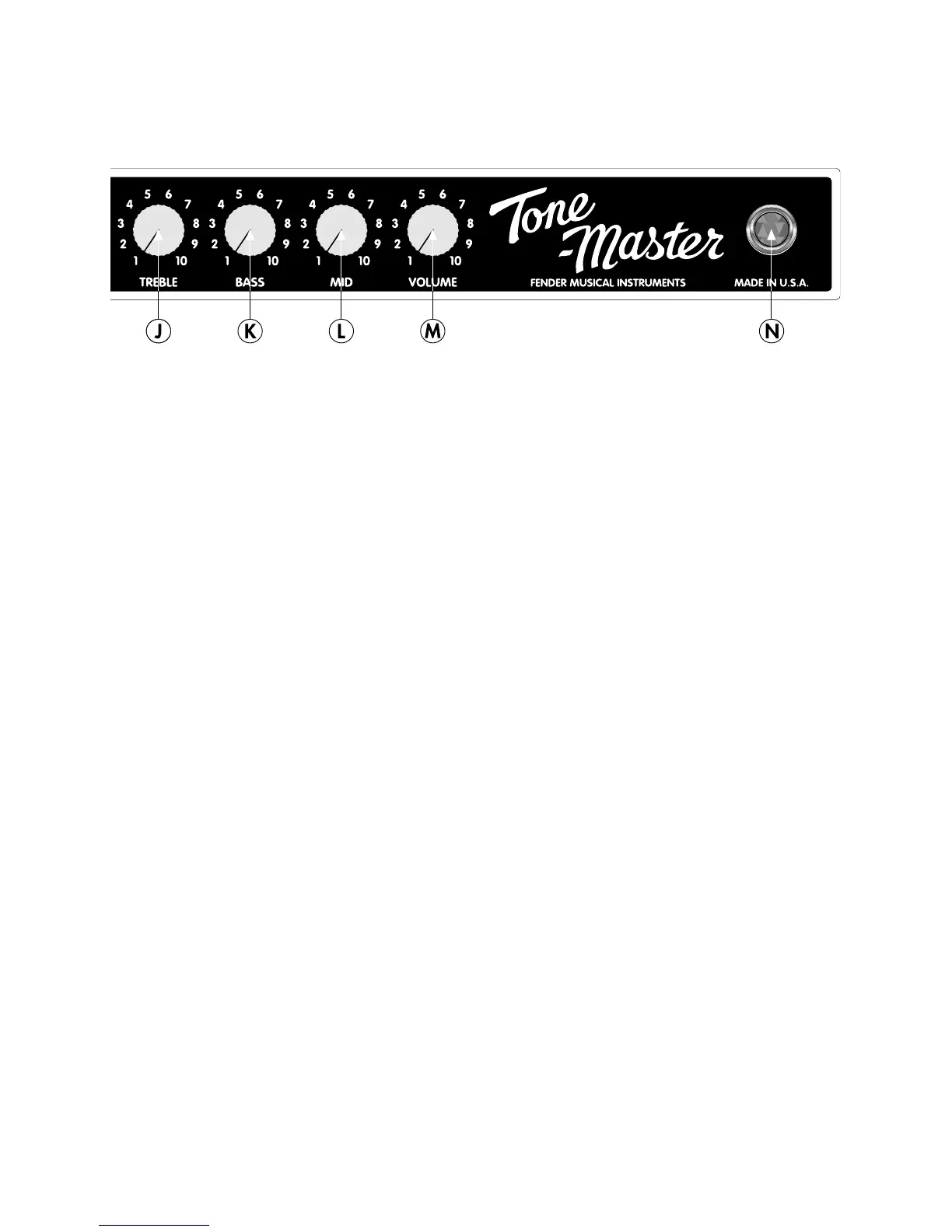

I. GAIN - Controls the Gain or overdrive of CHANNEL B.
J. TREBLE - Adjusts the overall brightness of CHANNEL B.
K. BASS - Adjusts the amount of low frequencies through CHANNEL B.
L. MID - Adjusts the amount of midrange frequencies through CHANNEL B.
M. VOLUME- Controls the loudness of CHANNEL B. SPECIAL NOTE: This control is best adjusted
in conjunction with the rear panel IMPEDANCE switch to enable the amplifier to better achieve
the cranked-up sound at a lower volume. On the B CHANNEL, with a single Tone-Master
enclosure, this switch should be set according to the setting of the B CHANNEL volume knob:
for volume settings of 3.5 and lower, LO would be the appropriate setting. For settings of 3.5 to
7, MED is best. For settings above 7, HI will produce full power and tone.
N. PILOT JEWEL - When this lamp is illuminated the Tone-Master is receiving power. Should this
bulb burn out, turn off the power, unscrew the red jewel and replace the lamp with a type T47
light bulb.
®
