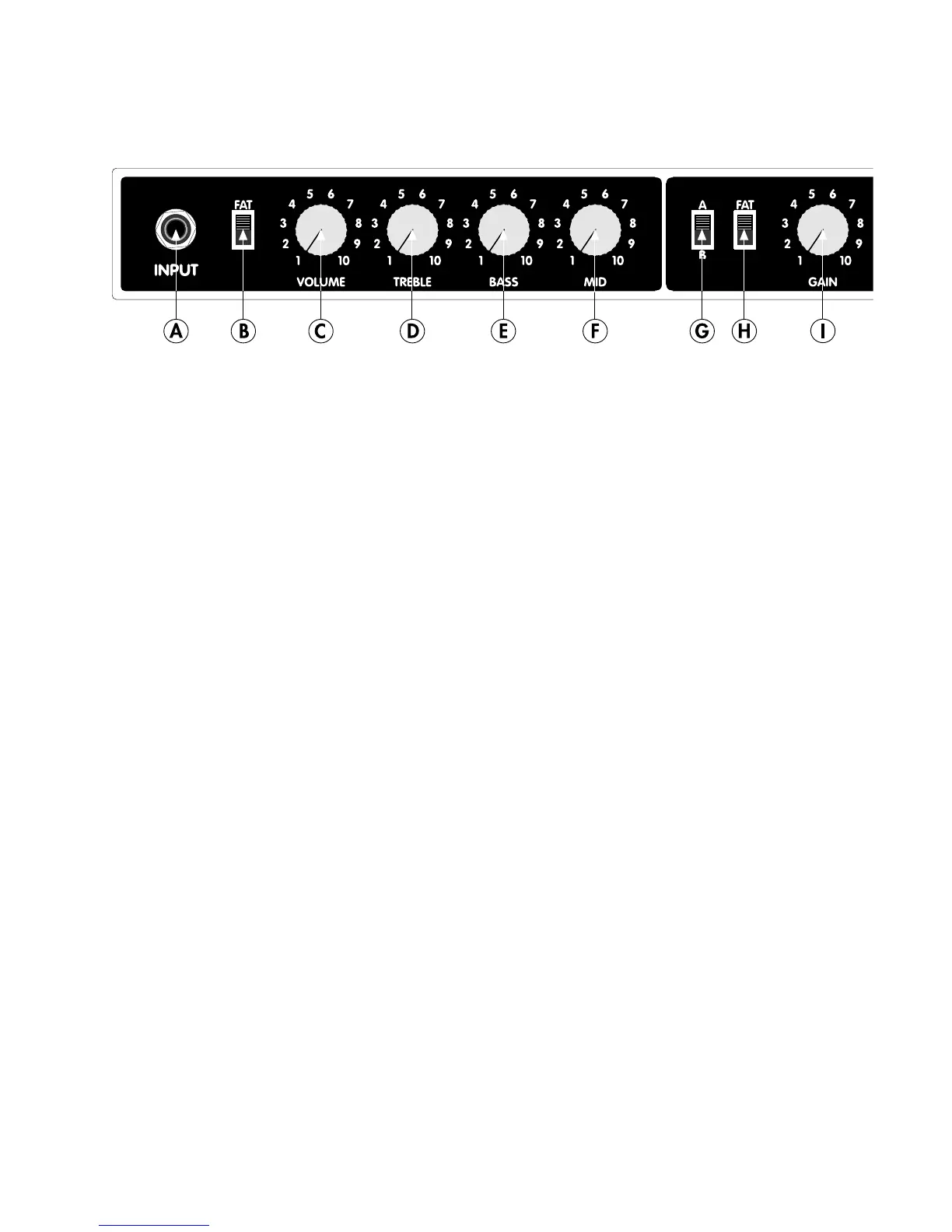

TONE-MASTER CONTROL FUNCTIONS
A. INPUTS -The guitar input for the Tone-Master.
B. FAT - Adds a 3dB boost in gain to the A CHANNEL, mostly to the low and midrange frequen-
cies.
C. VOLUME A - Controls the loudness of CHANNEL A.
D. TREBLE - Adjusts the overall brightness in the A CHANNEL.
E. BASS - Adjusts the level of low frequencies in the A CHANNEL.
F. MID - Adjusts the level of midrange frequencies in the A CHANNEL.
G. A/B - Allows front panel selection of CHANNEL A or CHANNEL B. SPECIAL NOTE: This switch
is deactivated by plugging in the footswitch.
H. FAT - Adds a 3dB boost in gain on the B CHANNEL. (Adds “EDGE”)
