SAFETY
Under the Left-hand Shield

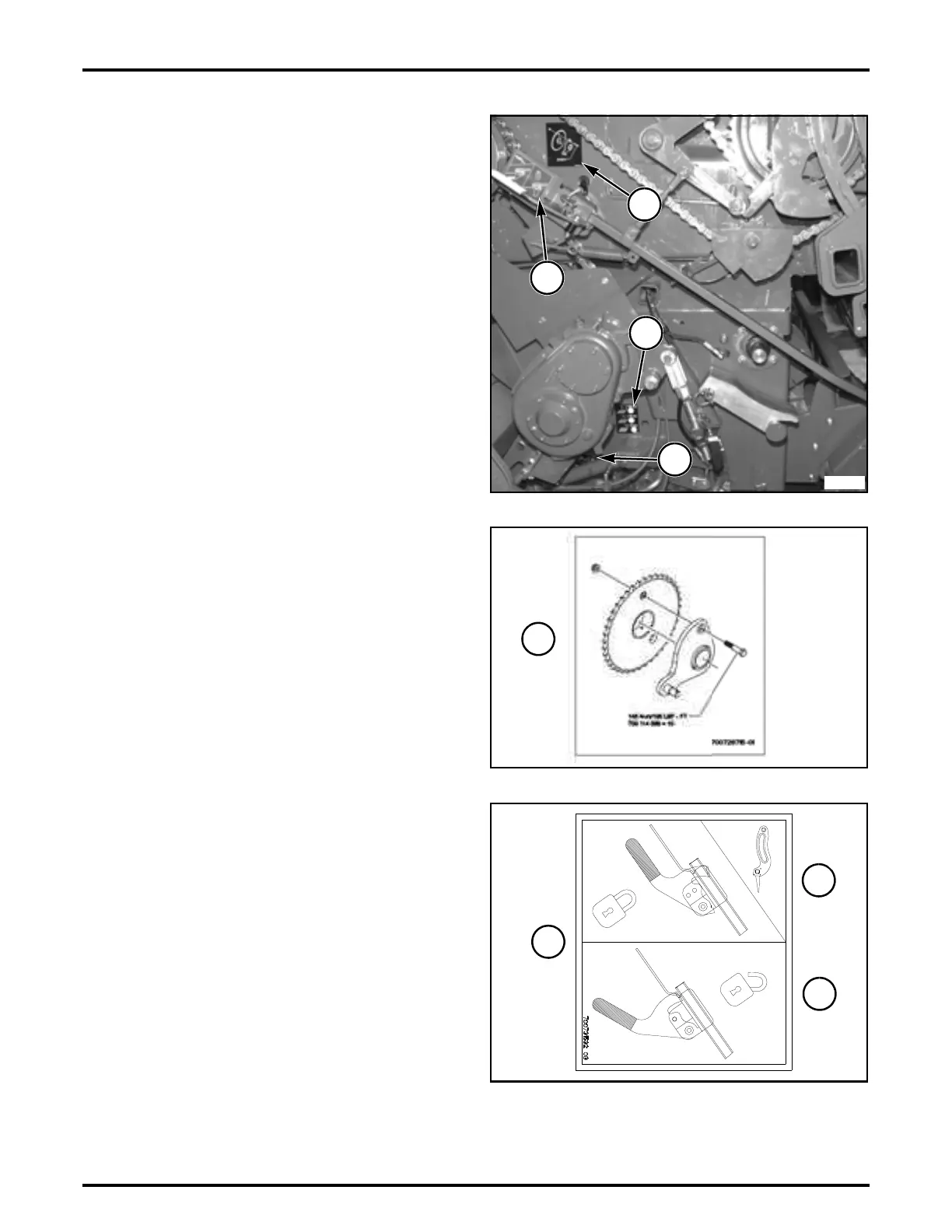

FIG. 50: Informational signs on the left-hand side of the
baler under the left-hand shield.
FIG. 51: Main drive sprocket shearbolt (1)
The cap screw must go through with the nut on the inside.
Tighten the nut to 145 Nm (105 lbf ft).
FIG. 52: Stuffer latch lock (2)
(A) Push in on the handle in to engage the latch.
(B) Pull out on the handle to allow operation.
Always have the stuffer latch lock in the locked location
when you do maintenance on the baler.
FIG. 50
N522756
1
2
3
4
FIG. 51
700728715
1
FIG. 52
700731532CK
2
A
B
