FENDT BALER Series - Rear of the Baler

SAFETY
A-24 700735021 E Rev.

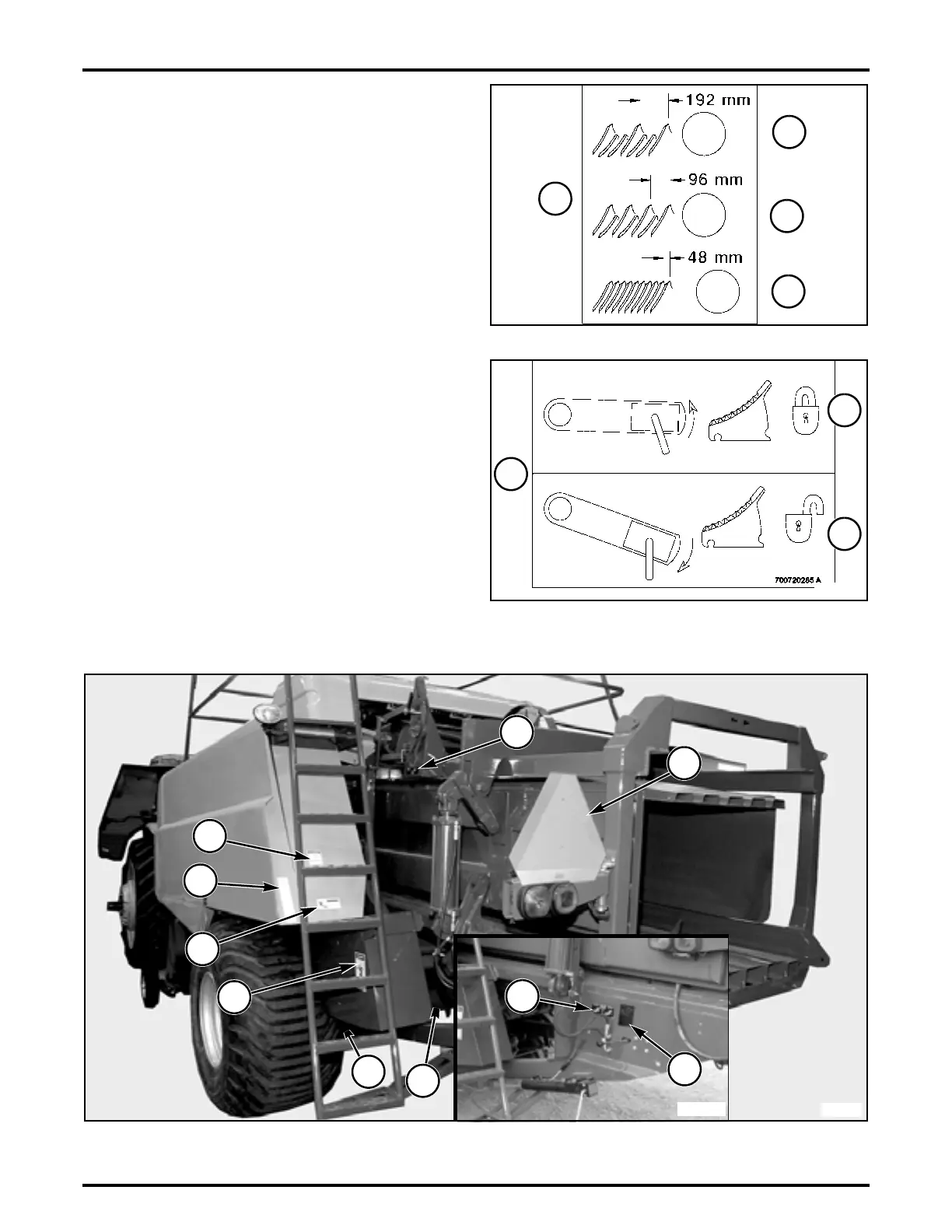

FIG. 53: Knife Spacing (3)
(A) Use two spacers for 192 mm (7.6 in) between knives.
(B) Use one spacer for 96 mm (3.8 in) between knives.
(C) Use no spacers for 48 mm (1.9 in) between knives.
FIG. 54: Knife lock (4)
(A) Lift the handle to lock the knives in location.
(B) Lower the handle to release the knives.
Rear of the Baler
FIG. 53
700729044
3
A
B
C
FIG. 54
700720285
4
A
B
FIG. 55
N115836
4
1
2
3
MC18300a
7
6
8
5
9
10
