SAFETY

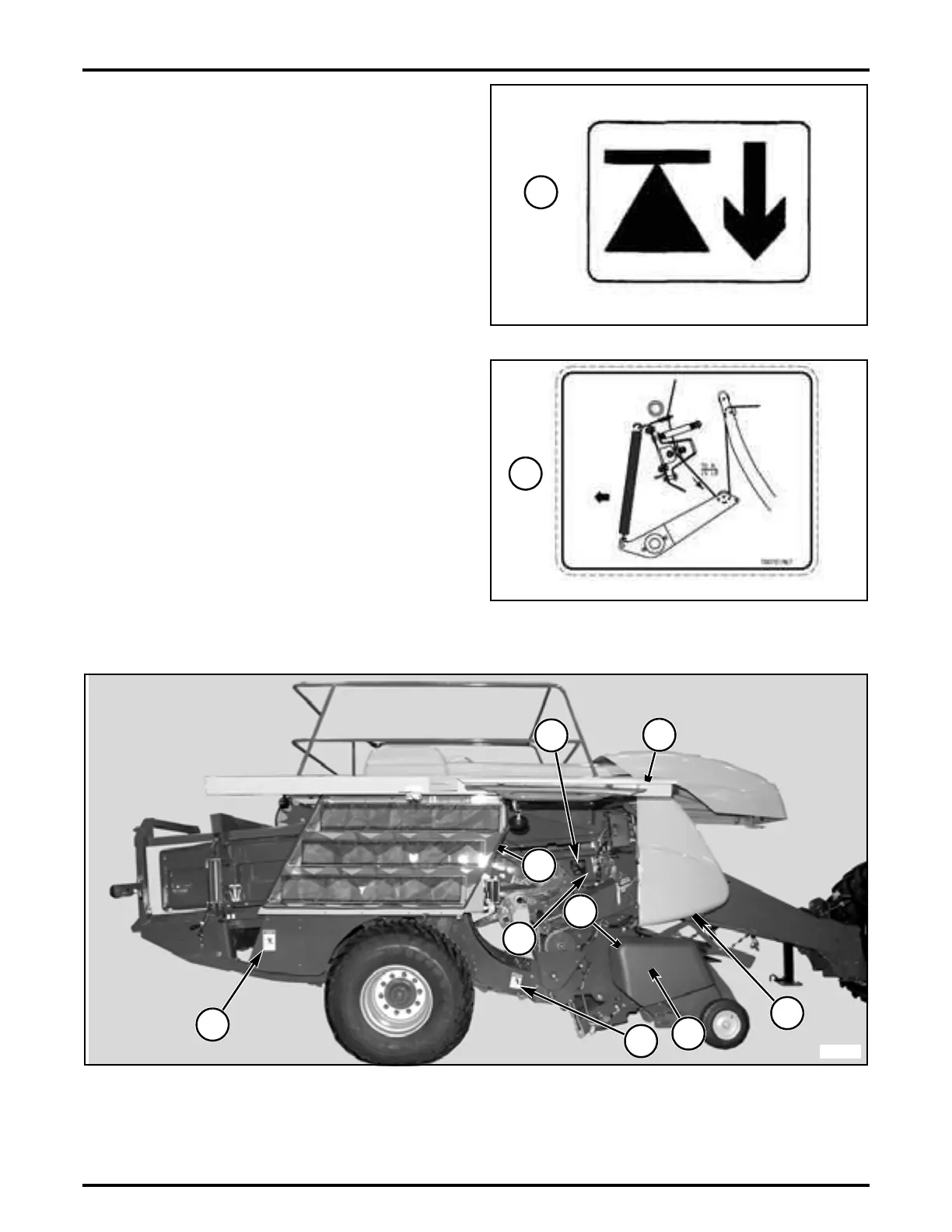

FIG. 64: Jack point sign (9)
Shows the location to apply a jack.
Single axle and tandem axle balers have different jack
points.
FIG. 65: Needle twine routing and tension (10)
This sign is on the rear of the beam under the lower
tensioners on a tandem axle baler.
This decal shows the twine routing from the twine box,
down through the tensioners, through the lower slacker
arms and to the needles.
Adjust twine tension to 70 N (15 lbf).
Right-hand Side of the Baler
FIG. 66: Safety and informational signs on the right-hand
side of the baler. Some signs can be in different locations
than are shown in this figure.
FIG. 64
619718
9
FIG. 65
700721967
10
FIG. 66
N122097
1
2
4
3
8
7
9
5
6
