7. Installation of electrical devices
7.4 Lighting control system with switch/touch panel
(Tendenza, Diamant)

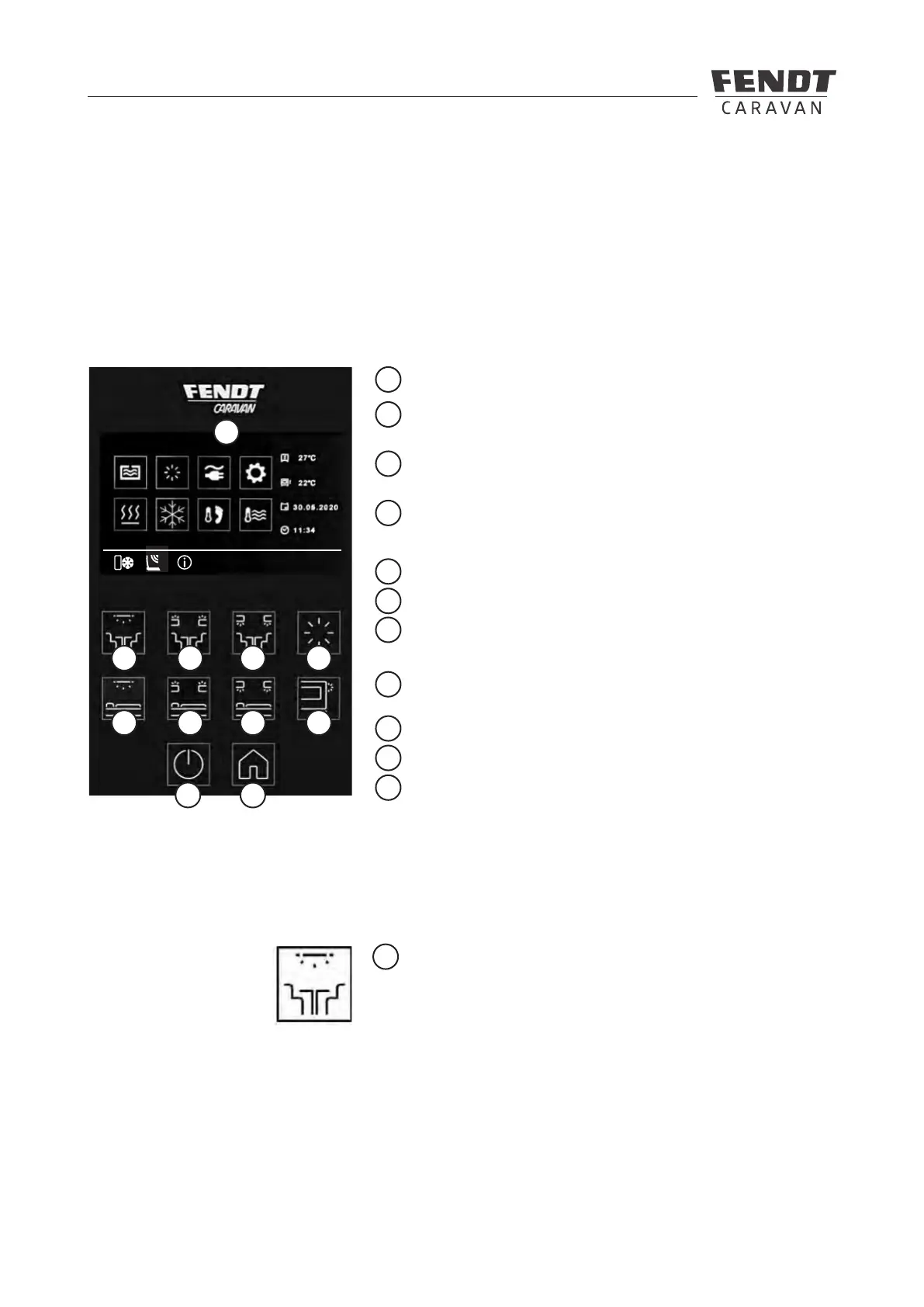

The system consists of control electronics, a touch panel as well
as a keypad and, depending on the model/layout plan, several
external control panels. It enables you to operate the dierent
lamps and several 230V devices. In addition, the touch panel is
used to display additional information and measured values and
to switch individual load circuits on and o and control them.
Switch/dimmer for ceiling light in living room
Switch/dimmer for upper LED strip light overhead stowage
compartment / ambience ceiling light in living room
Switch/dimmer for ceiling or LED strip - bedroom
(depending on model/layout / country-specic)
Switch/dimmer LED strip light for overhead stowage compart-
ment / ambience ceiling light inin bedroom
(depending on model/layout / country-specic)
LED strip lower roof storage box – bedroom
Outer tent light
LED strip lower roof storage box / corner shelves – living
room
Switch for lighting in bar / chest of drawers / side panel
seating bench (depending on model/layout / country-specic)
Display screen / touch panel / menu navigation
Main switch
Home button
1
2
3
4
5
6
7
8
9
10
11
Switch/dimmer for ceiling light in living room
Press briey on the key to switch the spots on the ceiling in the
living room on and o. Press longer on the key to regulate how
brightly you want the spots to shine.
Description of the individual key functions
1
4 53
21
9
10
87
6
11
