7. Installation of electrical devices
For the 12V / 230V electrical supply, please refer to
the separately enclosed circuit diagrams.

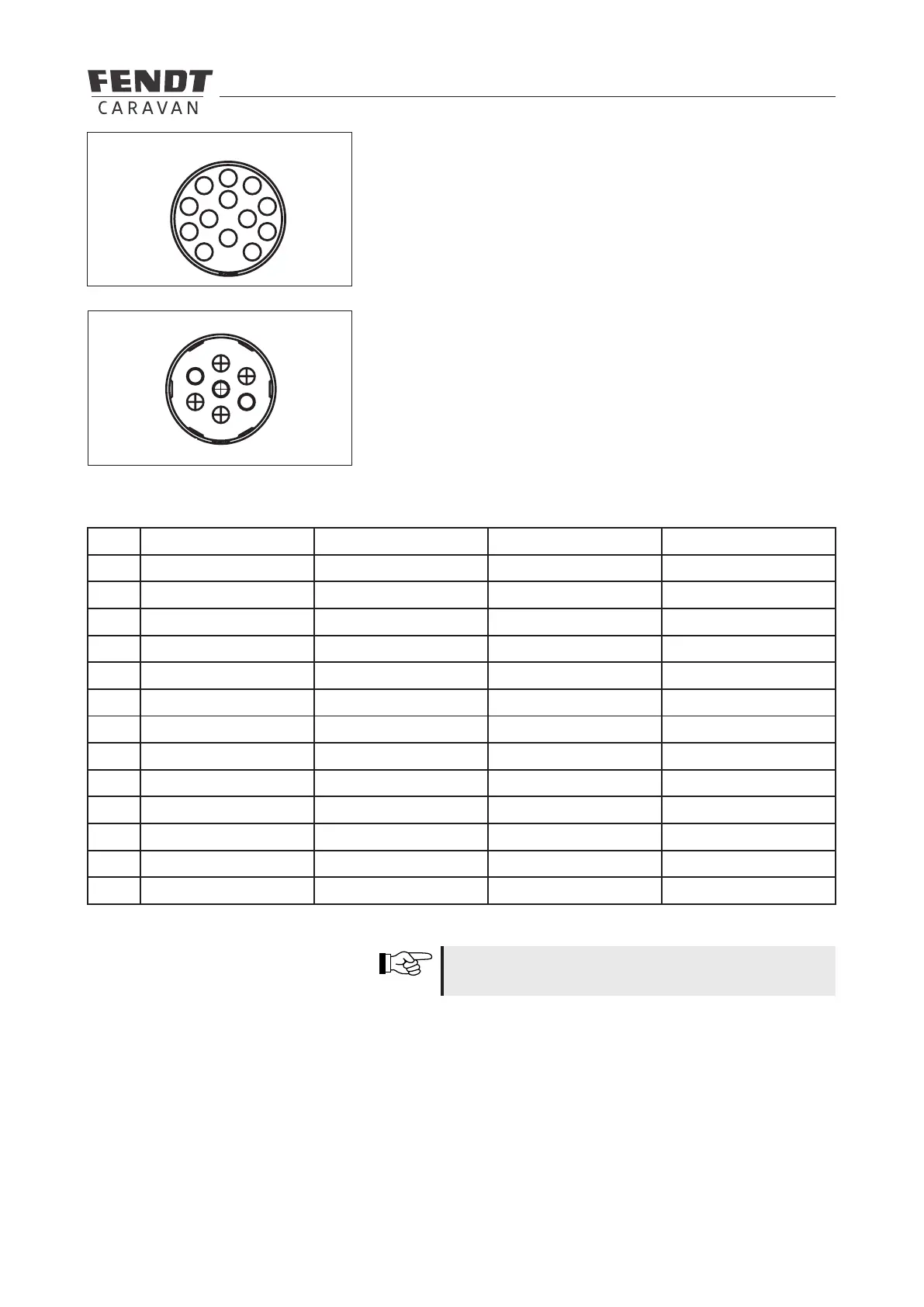

"Jäger" outlet (13-poled)
"Feder" outlet (13-poled)
1
2
3
4
13
5
6
7
8
9
10
11
1
6
5
2
3
4
8
9 10
11
1213
Contacts of sockets in accordance with DIN
No. Colour Electric circuit Contact No. DIN Cross-section mm
2
1 yellow left blinker L 1.5
2 blue
Fog tail lamp 54g 1.5
3 white
Earthing for 1-8 31 2.5
4 green
right blinker R 1.5
5 brown right rear light 58R 1.5
6 red
brake light 54 1.5
7 black left rear light 58L 1.5
8 grey
back-up light – 1.5
9 brown/blue
Steady plus – 2.5
10 brown/red
Charging cable – 2.5
11 white/red
Earthing for 10 – 2.5
12 – free – –
13 white/black Earthing for 9 – 2.5
