Feniex Mini 4200 - Option 2: L-Bracket Installation

V2.0
TM
FENIEX. 2016 INSTRUCTION MANUAL
WEB. www.feniex.com
8

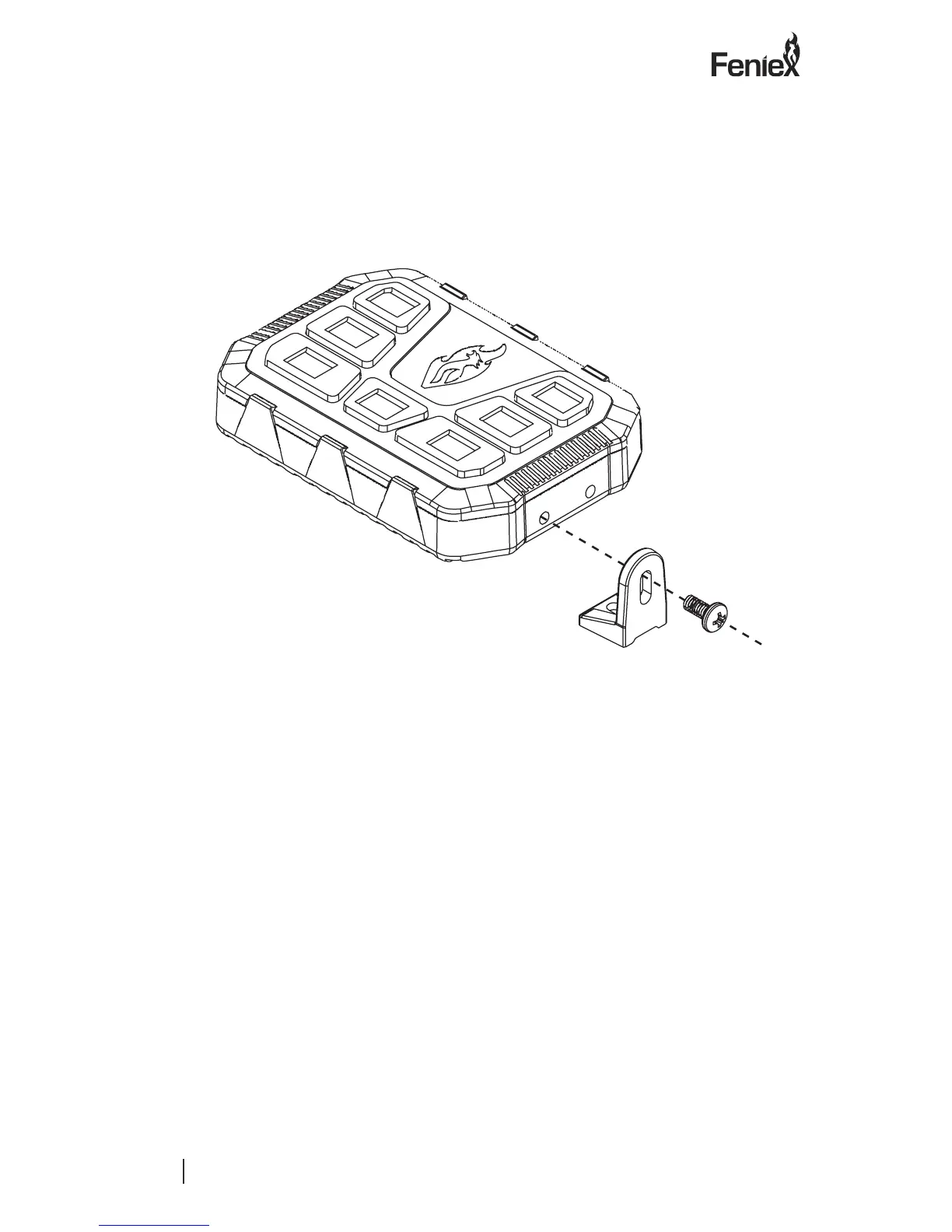

1.) Utilizing the provided screws, secure the
L-Bracket to the side of the controller using
a Phillips head screwdriver.
2.) Repeat Step 1 on the opposite side
of the controller, so both sides have the
L-Bracket securely connected.
3.) Place the unit against the intended
mounting surface.
4.) Mark the areas where the mounting
holes will be drilled. If the mounting
surface is part of the vehicle, make sure
no vital components could be damaged by
the drilling process.
5.) Drill two mounting holes on the
mounting surface, making sure no vital
components of the surface are damaged.
6.) Using customer provided screws,
secure the Mini 4200 to the mounting
surface.
Option 2 Mounting: L-Bracket
Mounting installation
