FERM PLANER FP-82
USERS MANUAL
TECHNICAL SPECIFICATIONS
PRODUCT INFORMATION
A Depth adjustment knob
B Depth scale
C Right cover
D On/Off switch
E Release button
F Handle
G Bolt cover (left)
This doubly insulated electric tool is designed to be
manually operated. It has an appealing shape and small
dimensions, which facilitate easy transportation. It is safe
and reliable when in operation. It is driven by a single-
phase electric motor via a V-belt. It is suitable for planing
wooden beams or boards.
SAFETY INSTRUCTIONS
The following symbols are used in these instructions for
use:
Denotes risk of personal injury, loss of life or
damage to the tool in case of non-observance of the
instructions in this manual.
Denotes risk of electric shock.
Carefully read this manual before using the machine.
Make sure that you know how the machine functions and
how to operate it. Maintain the machine in accordance
with the instructions to make sure it functions properly.
Keep this manual and the enclosed documentation with
the machine.
Ferm products are manufactured to high quality stan-
dards they are safe and fit for purpose at time of sale, but
all tools can be dangerous if the correct precautions are
not taken. Always follow these instructions, do not carry
out the operation until you are sure you can do so in saf-
ety. Remember to consider the work environment for
safe operation as well as safety for tool use.
Warning! When using electric tools, basic safety
precautions should always be followed to reduce
the risk of fire, electric shock and personal injury. Read all
these instructions before attempting to operate this product.
Save these instructions for future reference.
PERSONAL SAFETY
Use Personal Protection Safety Equipment
Protect eyes with safety glasses or goggles note: the use
of safety protective eyewear without the CE mark can
lead to serious injury if the lens breaks. A suitable dust
mask should be worn if cutting, drilling or sanding is
dusty, in particular chipboard or MDF.
Approved safety footwear and headgear should worn as
appropriate, for example on building works or when
heavy weights are involved. Wear suitable gloves and
apron to protect against sparks/debris. Wear earplugs
or ear defenders.
Dress properly
Do not wear loose clothing or jewellery. It can get caught
in moving parts. Non-skid footwear is recommended
when working out doors. Wear protective hair covering
to contain long hair.
Stay alert
Watch what you are doing Use common sense. Do not
operate tools when tired or after taking alcohol or pre-
scription/ non-prescription drugs.
Voltage | 230 V~
Frequency | 50 Hz
Power input | 600 W
No load speed | 16000/min
Max. planing width | 82 mm
Max. planing depth | 2 mm
Weight | 6.5 kg
Lpa (sound pressure) | 89 dB(A)
Lwa (sound power) | 103 dB(A)
Vibration | < 2.1 m/s
2
2 Ferm Ferm 7

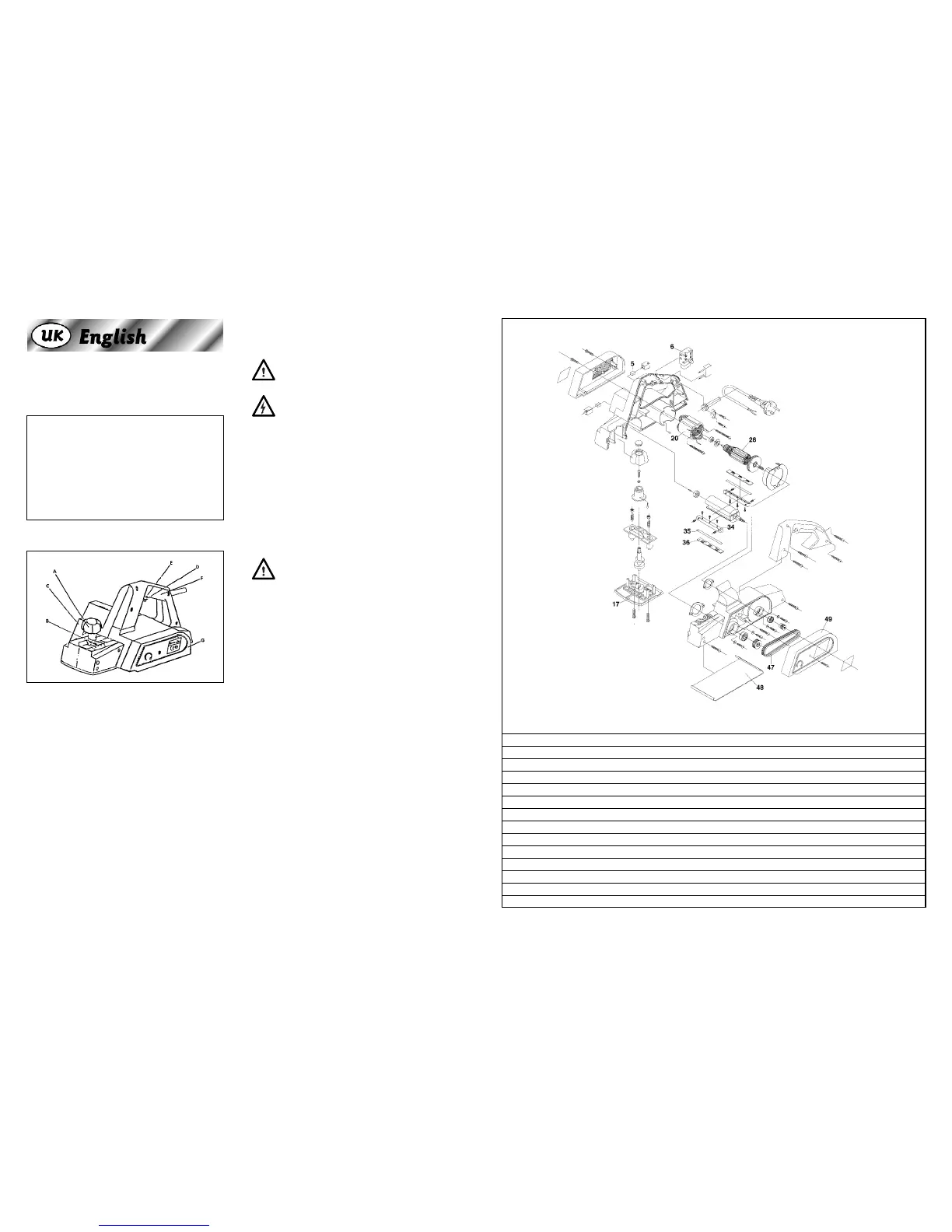

EXPLODED VIEW
SPARE PARTS LIST FP-82
REF NR DESCRIPTION FERM NR
5 CARBON BRUSH 406445
6 SWITCH 406442
17 ADJUSTING PLATE 406506
20 STATOR 406447
28 ROTOR 406446
34 UPPER PRESSING BOARD 406502
35 BLADE 319266
36 LOWER PRESSING BOARD 406503
47 DRIVING BELT 406443
48 BASE 406449
49 LEFT COVER 406444
- DUST BAG 406504
