Fermax FVQ-6040APP KIT

18
Lock Wiring
The system has 2 Locks
• Lock 1 – 12 VDC (250mA) Output on exit or door release
o Lock 1 is only power to unlock
• Lock 2 – Dry Collector Normally Open
The Exit button can be configured in 2 modes (Default is Lock 1)
• Only Lock 1 (DEFAULT MODE)
• Only Lock 2

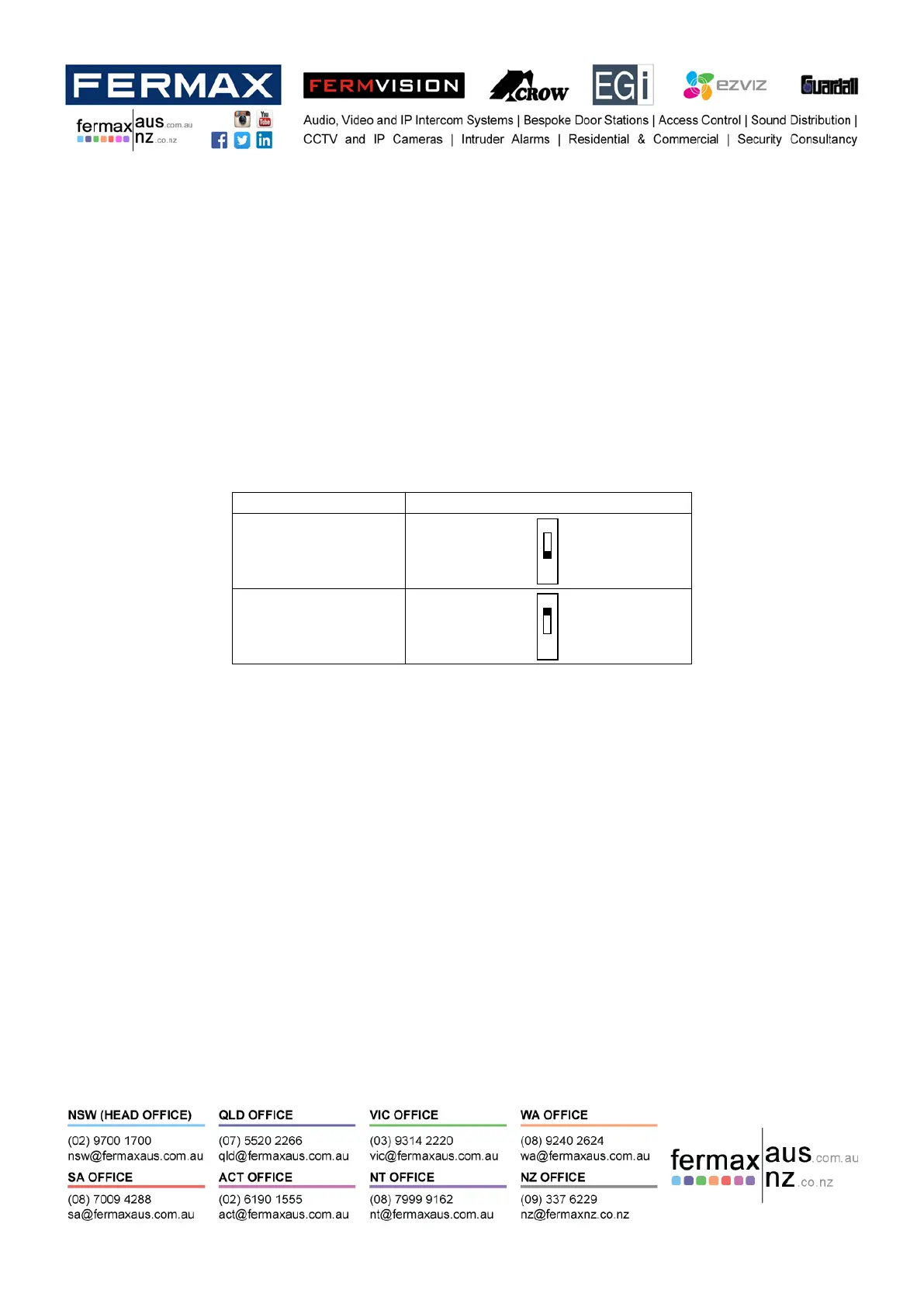

Exit Button Control
Type
Dip Switch Setting
Lock 1
Lock 2
3
ON
3
ON
