Fermax Way-Fi Installer Manual

10

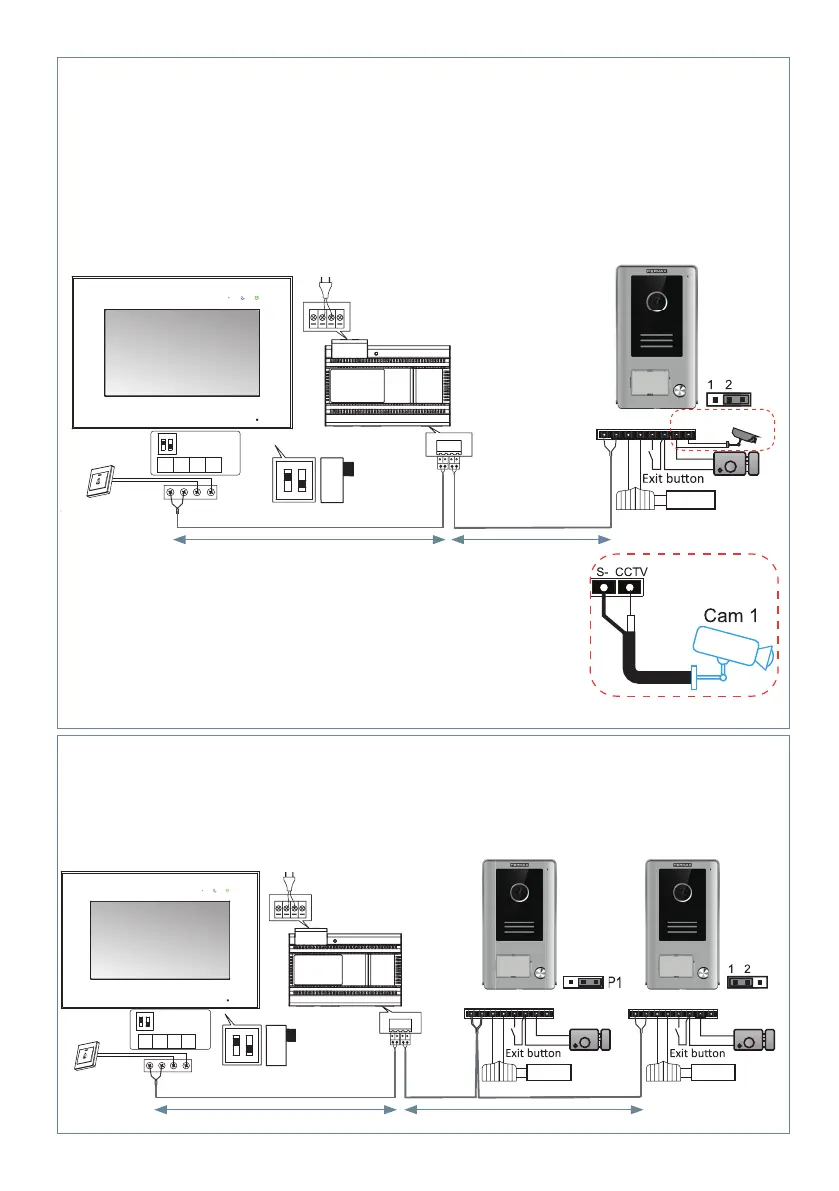

Esquema de cableado del kit con un monitor y cámara CCTV (1 Placa, Cámara Cam1
y 1 Monitor).
Wiring diagram of the kit with one monitor and CCTV camera (1 Panel, Camera Cam1
and 1 Monitor).
Schéma de câblage du kit avec moniteur et caméra CCTV (1 platine, 1 caméra Cam1
et 1 moniteur).
Schaltplan des Kits mit Monitor und CCTV-Kamera (1 Türstation, Cam1 Kamera und 1 Monitor).
Esquema de cablagem de kit com um monitor e câmara CCTV (1 Placa, Câmara Cam1
e 1 Monitor).
Esquema de cableado del kit con dos placas y un monitor (2 Placas y 1 Monitor).
Wiring diagram of the kit with two panels and one monitor (2 Panels and 1 Monitor).
Schéma de câblage du kit avec deux platines et un moniteur (2 platines et 1 moniteur).
Schaltplan des Kits mit zwei Türstationen und einem Monitor (2 Türstationen und 1 Monitor).
Esquema de cablagem de kit com duas placas e um monitor (2 Placas e 1 Monitor).
BUS(IM)B US(DS)
-
+
Doorbell Button
BUS (IM)
Monitor
BUS (DS)
Panel
Lock
BUS
GND S-CALL
BUS
S+ S-BUS
COMN O/NC PL
LS WNN
POWER
automatic door
CCTV
1 2 3
P1
-
+
Lock
S+ S-BUS COMN O/NC PL
POWER
automatic door
CCTV
1 2 3
P2
ON
1
2
Dipswitches
ON
12
AB
Nota: La cámara Cam1 requiere alimentación adicional.
Note: Cam1 camera requires an additional power supply.
Remarque: La caméra Cam1 nécessite une alimentation supplémentaire.
Hinweis: Die Cam1-Kamera benötigt eine zusätzliche Stromversorgung.
Nota: A câmera Cam1 requer uma fonte de alimentação adicional.
BUS(IM)B US(DS)
Doorbell Button
BUS (IM)
Monitor
BUS (DS)
Panel
BUS
GNDS -CAL L
BUS
LS WNN
-
+
Lock
S+ S-BUS COMN O/NC PL
POWER
automatic door
CCTV
1 2 3
P1
ON
ON
1
2
Dipswitches
Cam1
1 2
AB
J2
J2 J2
