KED® Pro

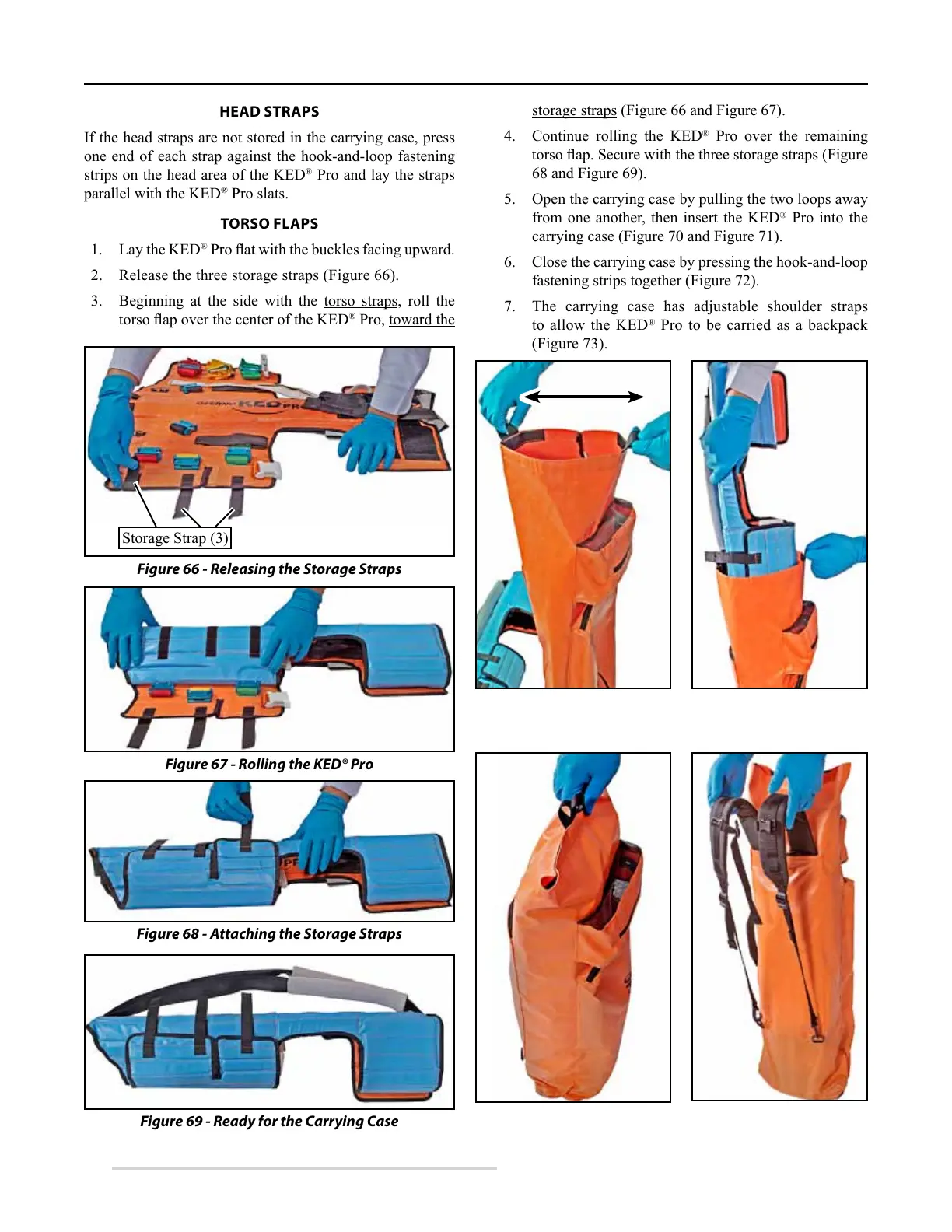

Storing the KED® Pro
HEAD STRAPS
If the head straps are not stored in the carrying case, press
one end of each strap against the hook-and-loop fastening
strips on the head area of the KED
®
Pro and lay the straps
parallel with the KED
®
Pro slats.
TORSO FLAPS
1. Lay the KED
®
Proatwiththebucklesfacingupward.
2. Release the three storage straps (Figure 66).
3. Beginning at the side with the torso straps, roll the
torsoapoverthecenteroftheKED
®
Pro, toward the
Figure 67 - Rolling the KED® Pro
Figure 68 - Attaching the Storage Straps
Figure 66 - Releasing the Storage Straps
Storage Strap (3)
Figure 69 - Ready for the Carrying Case
storage straps (Figure 66 and Figure 67).
4. Continue rolling the KED
®
Pro over the remaining
torsoap.Securewiththethreestoragestraps(Figure
68 and Figure 69).
5. Open the carrying case by pulling the two loops away
from one another, then insert the KED
®
Pro into the
carrying case (Figure 70 and Figure 71).
6. Close the carrying case by pressing the hook-and-loop
fastening strips together (Figure 72).
7. The carrying case has adjustable shoulder straps
to allow the KED
®
Pro to be carried as a backpack
(Figure 73).
Figure 70 - Opening the
Carrying Case
Figure 71 - Storing the
KED® Pro
Figure 72 - Closing the
Carrying Case
Figure 73 - Carrying Case
Shoulder Straps
