Ferris 5900612 - Page 96

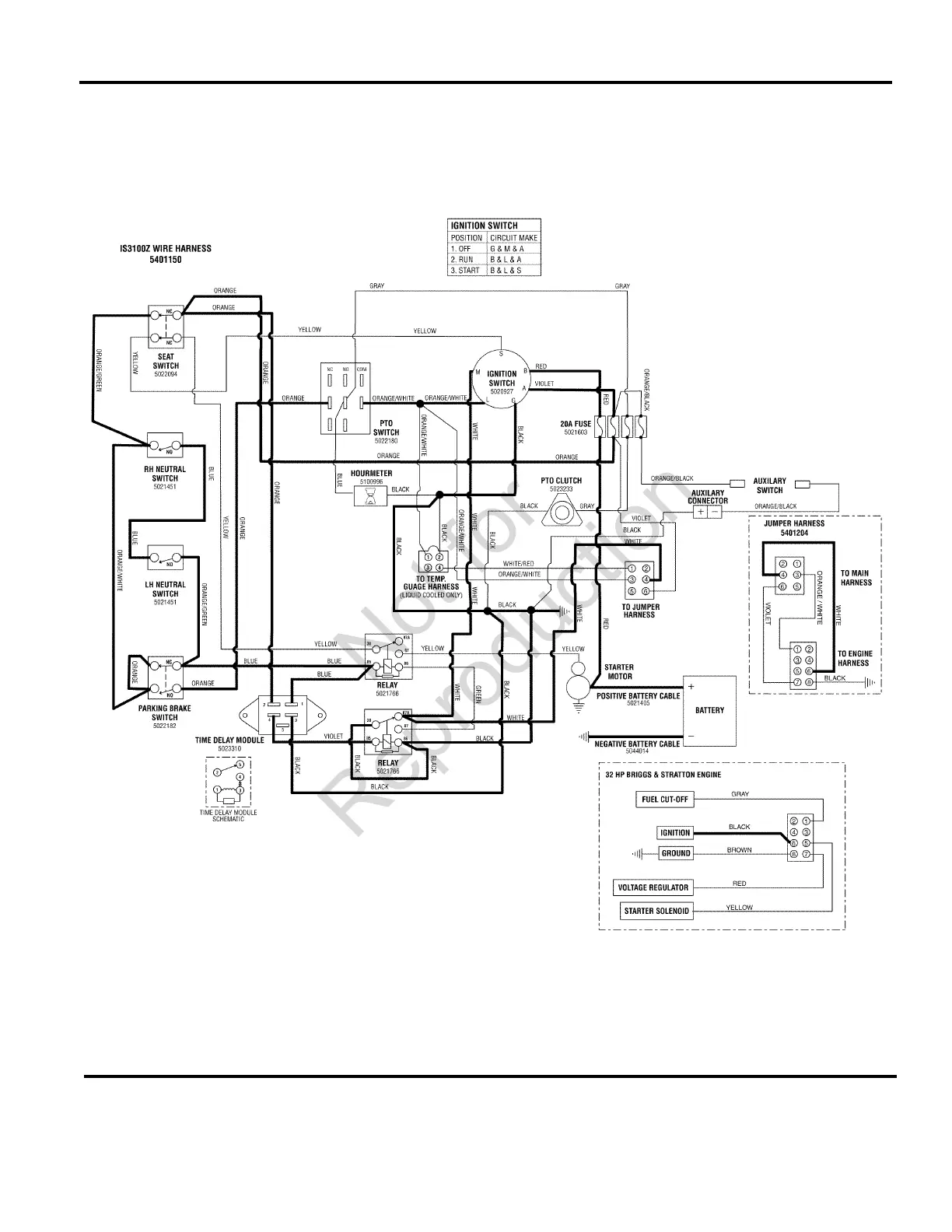

Electrical Schematic - Ignition Grounding Circuit/Operator Presence - Briggs & Stratton
30HP & 32HP
282esbi0
The above parts group applies to the following Mfg. Nos.:
2010
96
© Copyright Briggs and Stratton. All Rights Reserved.
5900716
(
IS3100ZBV30/61 AUS/NZ
)
5900717
(
IS3100ZBV32 AUS/NZ
)
5900736
(
IS3100ZBV3261 CAL
)
5901186
(
IS3100ZBV3061
)
5900613
(
IS3100ZBV3261
)
5901183
(
IS3100ZBV32
)
TP 400-7282-BA-3Z-F
Not for
Reproduction
