Operation

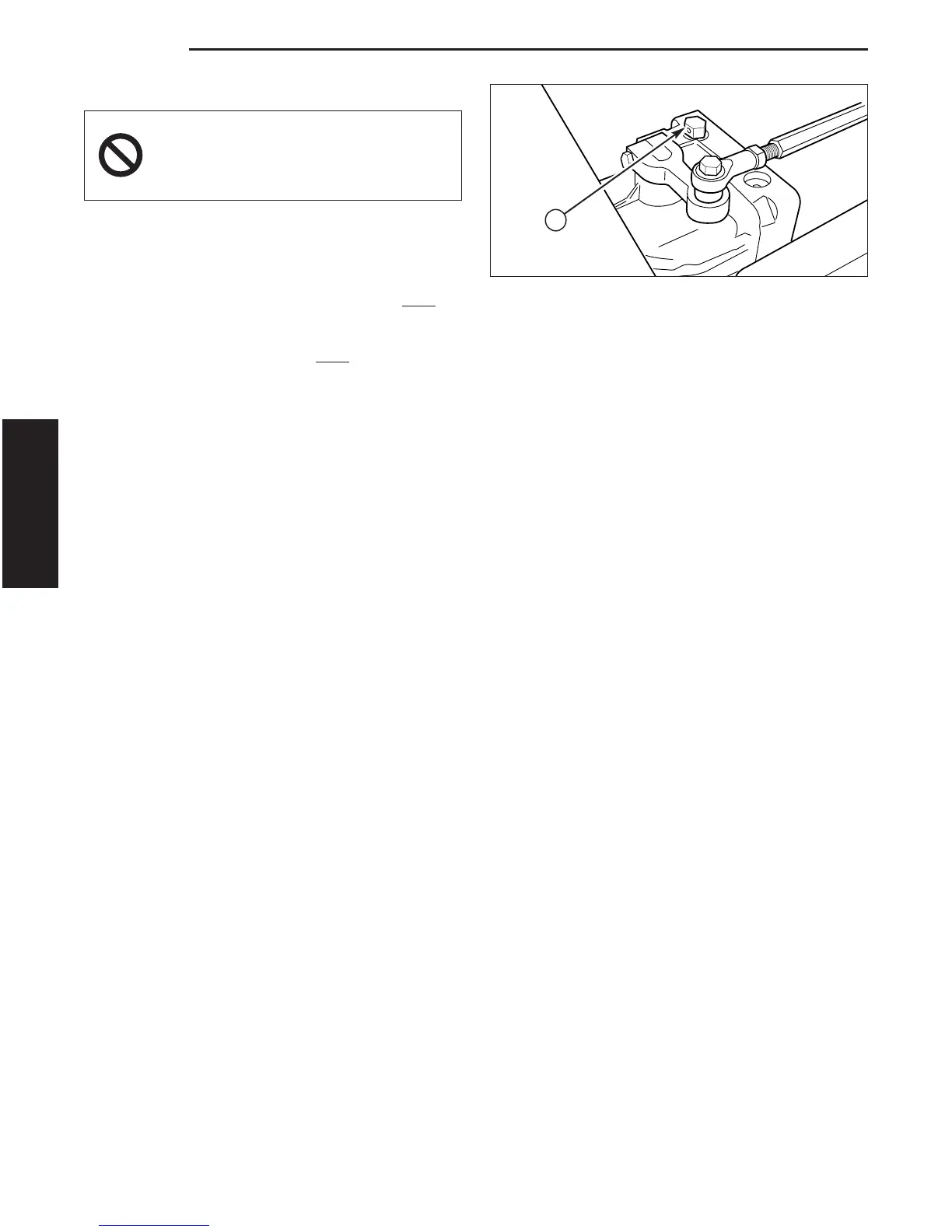

Figure 3. Hydraulic Release Valve Location
A. Hydraulic Release Valve (Right-hand side
shown)
A
Operation
PUSHING THE RIDER BY HAND
1. Refer to Figure 3 for hydraulic release valve
location.
2. To open the dump valves, turn the right-hand
release valve, which is located on top of the right-
hand pump, counter-clockwise 2 full turns MAX
.
Then turn the left-hand release valve, which is
located on the bottom of the left-hand pump,
counter-clockwise 2 full turns MAX
.
3. Disengage the parking brake. The tractor can now
be pushed by hand.
4. After moving the tractor, engage the parking
brake. Re-engage the pumps (drive position) by
turning the release valves clockwise and tighten to
80-120 in/lbs (9-13.5 N.m.)
DO NOT TOW RIDER
Towing the unit will cause hydraulic pump
and wheel motor damage. Do not use
another vehicle to push or pull this unit.
