Ferris 5901550 - Features and Controls; Control Functions and Locations

Not for
Reproduction
12 ferrismowers.com
specific sequences. To learn what combination and sequence
of controls to use for various tasks see the Operation section.
4

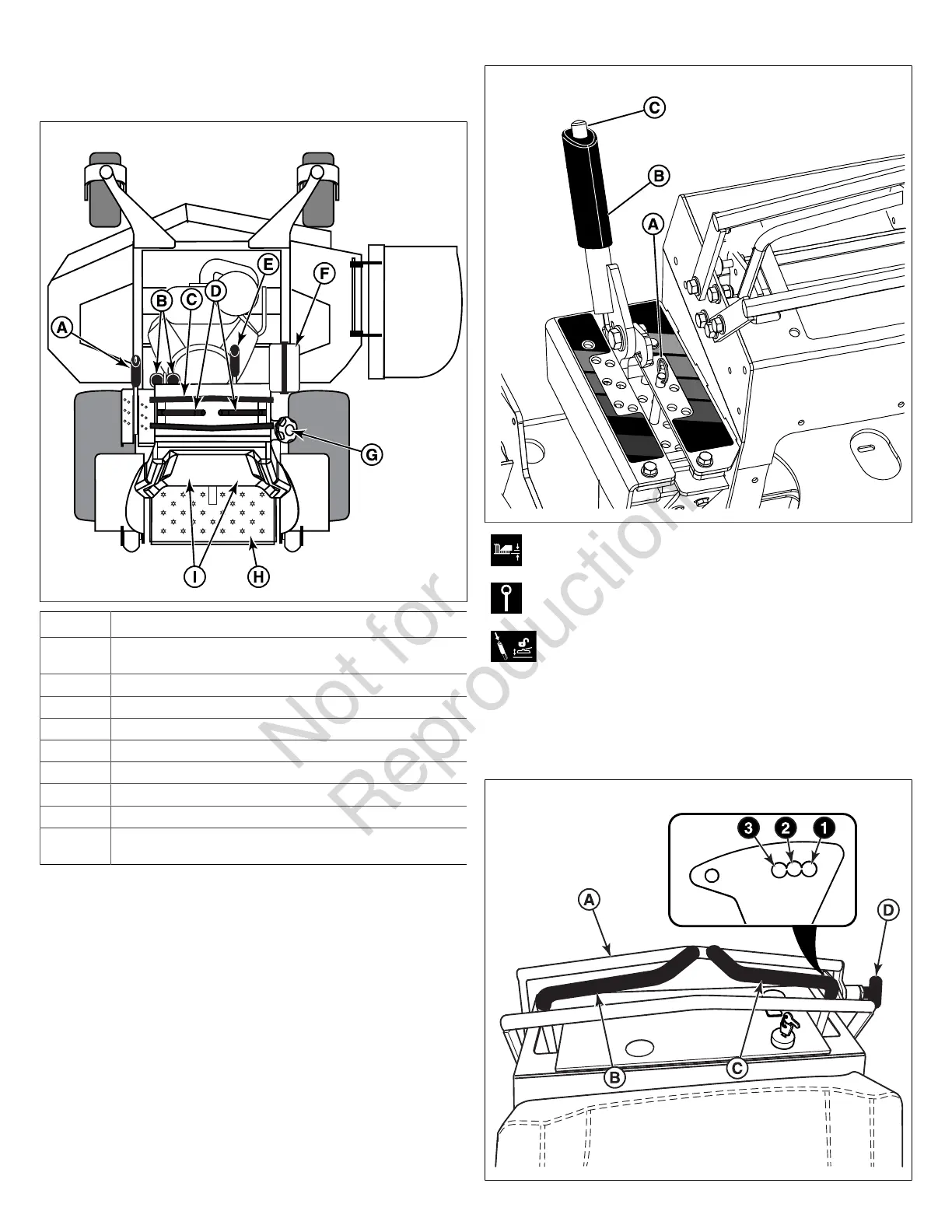

Callout Description
A Deck Lift Lever, Cutting Height Adjustment Pin, and Deck Lift
Release Button
B Transmission Oil Fill (Transmission Oil Tanks)
C Maximum Forward Speed Bar
D Ground Speed Control Levers
E Parking Brake
F Battery Box
G Fuel Tank Cap
H Operator Platform
I Transaxle Release Levers (Located behind Operator Support
Cushion)
Deck Lift Lever, Cutting Height Adjustment Pin, and Deck
Lift Release Button:The deck lift lever (B, Figure5), cutting
height adjustment pin (A), and deck lift release button (C) are
used together to control the cutting height of the mower deck.
SeeCutting Height Adjustmentfor instructions on using these
controls.
5
( ) -Cutting Height Adjustment Pin
( ) -Storage Hole for Cutting Height Adjustment Pin
( ) -Deck Lift Lock Lever
Maximum Forward Speed Bar: This unit is equipped with an
adjustable Maximum Forward Speed Bar (A, Figure 6), which
is located in front of the Ground Speed Control Levers (B &
C).
6
