Regular Maintenance
LUBRICATION
Lubricate the unit at the locations shown in Figures
19 through 23 as well as the following lubrication
points.
Grease:
• front caster wheel axles & yokes
• deck lift pivot blocks
• mower deck spindles
• mower deck idler arm
Use grease fittings when present. Disassemble parts
to apply grease to moving parts when grease fittings
are not installed.
Not all greases are compatible. Ferris Red Grease
(p/n 5022285) is recommended, automotive-type
high-temperature, lithium grease may be used when
this is not available.
Oil:
• control handle pivots
• seat plate pivots
• deck lift pivots
• discharge chute hinge
Generally, all moving metal parts should be oiled
where contact is made with other parts. Keep oil and
grease off belts and pulleys. Remember to wipe
fittings and surfaces clean both before and after
lubrication.

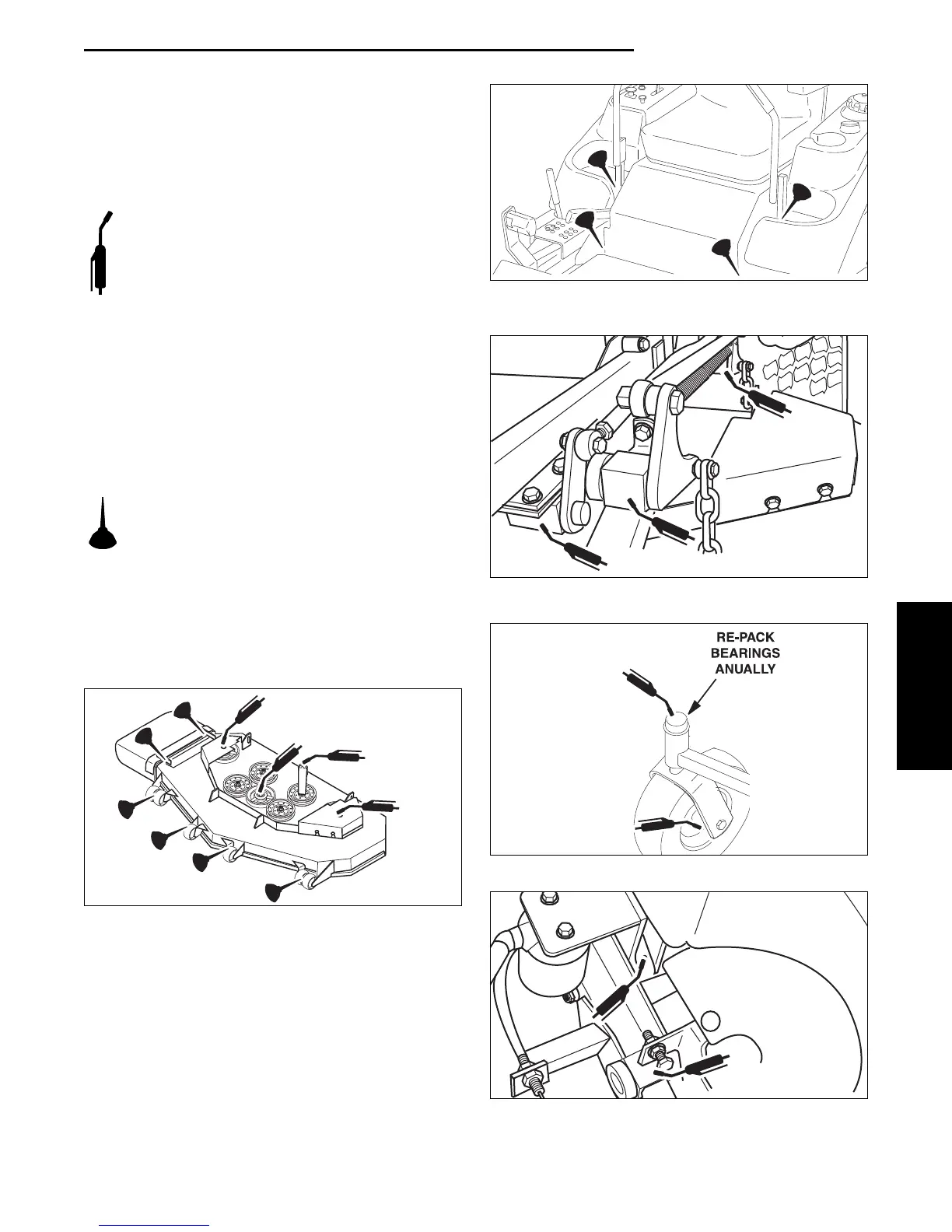

Figure 21. Deck Lift Linkage Pivots
Figure 22. Front Caster & Wheel
Figure 20. Control Handle Pivots & Seat Plate
Pivots
Figure 19. Deck Lubrication
Figure 23. Suspension & Deck Lift Pivots
