9
17
18
WARNING
Use extreme caution when rotating the idler arm with the
breaker bar, due to the increased tension in the spring
as the idler arm is being rotated. Injury may result if the
breaker bar is prematurely released while the spring is
under tension.

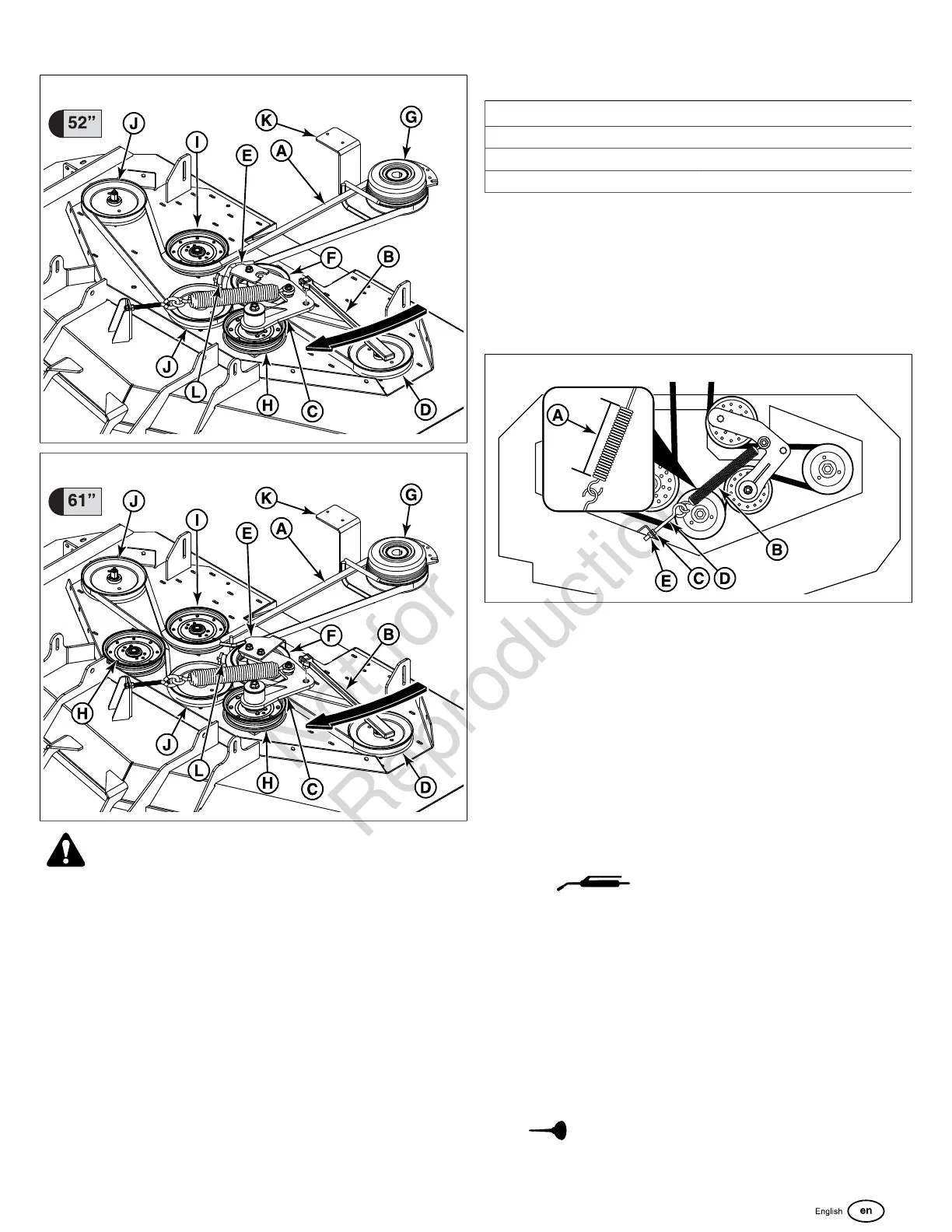

4. If the belt is not properly seated, use a 1/2” breaker bar
(B), and place the square end in the opening in the idler
arm (C).
5. Carefully rotate the breaker bar clockwise, pulling the
adjustable idler pulley away from the idler arm stop (L).
This will will relieve the tension on the belt exerted from
the idler arm.
6. Re-seat the belt and carefully release the tension on the
breaker bar.
Check / Adjust the Mower Deck Drive Belt
Tensioning Spring Length
Mower Deck Drive Belt Tensioning Spring Length
Deck Size Measurement
52" 12" (30.5 cm)
61" 12" (30.5 cm)
1. Set the mower deck to the 3-1/2" (8.9 cm) cutting height.
2. Use the Mower Deck Drive Belt Tensioning Spring Length
chart to determine the correct spring length for your unit.
3. Measure the coil length (A, Figure 19) of the mower belt
idler tensioning spring (B). The measurement should
equal the measurement as indicated in the chart. If not,
continue with step #4..
19
4. Loosen the jam nut (C) on the eyebolt (D).
5. Turn the adjustment nut (E) until the measurement as
indicated in the chart is achieved.
6. Re-tighten the jam nut.
7. Re-install the mower deck guards and the floor pan.
8. Run the mower under no-load condition for about five (5)
minutes to break in the new belt.
Lubrication
Lubricate the unit at the locations shown in Figure20,21,
and22and as well as the following lubrication points.
Grease:
• front caster wheel axles and yokes
• transmission cradle pivots
• deck lift pivot blocks
• mower deck spindles
Use grease fittings when present. Disassemble parts to apply
grease to moving parts when grease fittings are not installed.
Not all greases are compatible. Red grease (p/n 5022285)
is recommended. Automotive type, high temperature, lithium
grease may be used when this is not available.
Oil:
• ground speed control lever pivots & linkages
• parking brake shaft pivots
To Next Page
