25
rear wheels on the transmission cradle (B). There is
one transmission release lever on each transmission.
The transmission release levers open and close the
transmission bypass valves.
22

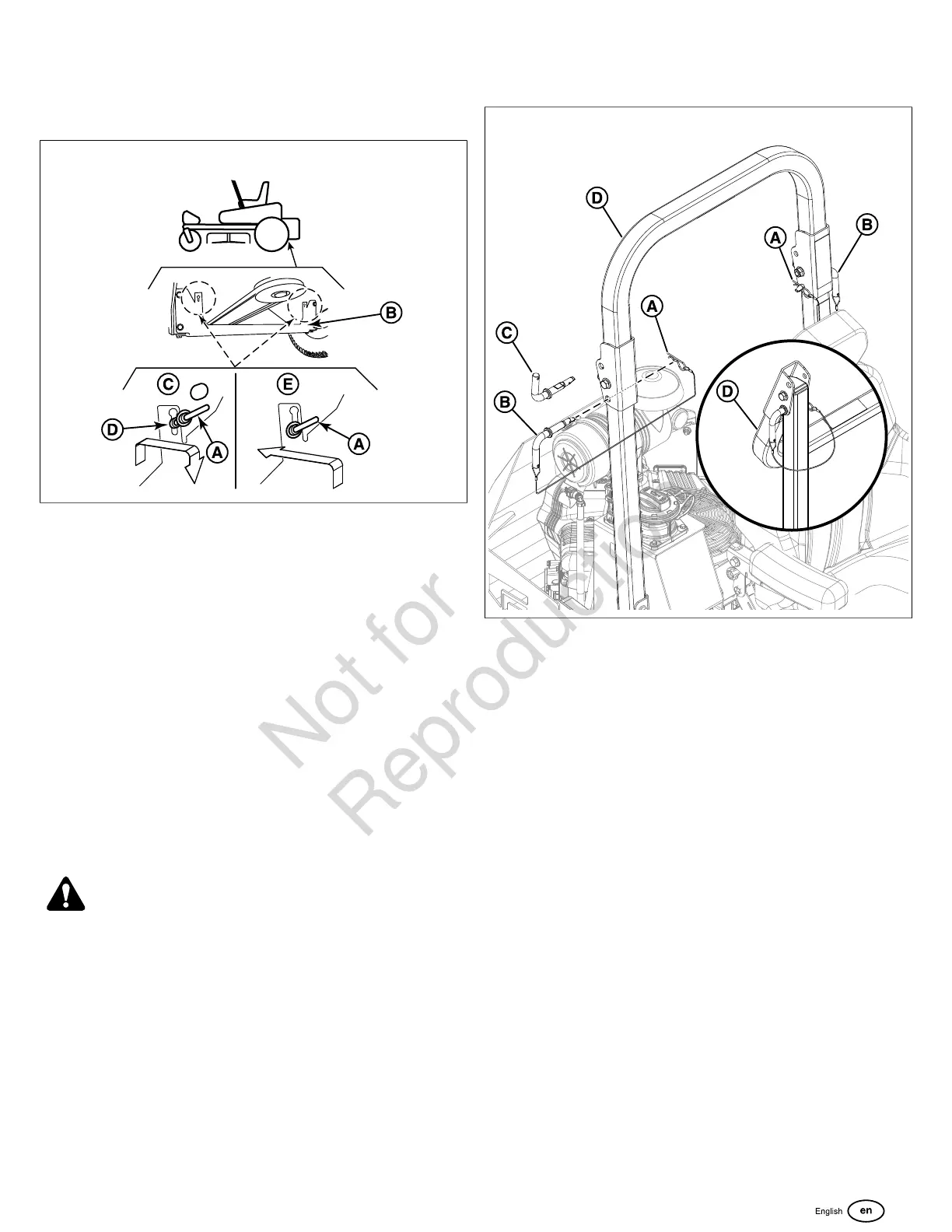

3. To open the transmission bypass valve (bypass position)
(C), move the transmission release lever up and pull it
towards the rear of the unit. When the second nut (D) has
passed through the hole, lower the rod down into the slot
so it will stay in the bypass position. Repeat the process
for the other side of the unit.
4. Disengage the parking brake. The unit can now be
pushed by hand.
5. After moving the unit, close the bypass valve (run
position) (E) by raising the transmission release lever so
that the back nut clears the slot, push the lever towards
the front of the unit. Repeat the process for the other side
of the unit.
Note:Both transmission release levers must be in the same
position.
Raise and Lower the Roll Bar
WARNING
Avoid serious injury or death from roll over:
• Keep roll bar in the raised position and use the seat
belt.
• There is no roll over protection when the roll bar is
down.
• Lower the roll bar only when necessary and NEVER
remove it.
• Do NOT use seat belt when the roll bar is down.
• Raise the roll bar as soon as clearance permits.
• Do NOT jump off if the mower tips.
To lower the roll bar:
1. Pull the hair pin clips (A, Figure 23) out of the retainer
pins (B).
23
2. Rotate the retainer pins so that the handle of the pin is
pointing up (C).
3. Remove the retainer pins. You may need to push or pull
on the top loop (D) of the roll bar in order to pull the pins
out of the roll bar.
4. Lower the roll bar.
5. With the handles of the retainer pins pointing up, install
the retainer pins into the roll bar and secure the roll bar
into the down position.
6. Rotate the retainer pins so that the handle of the pin is
pointing down and then install the hair pin clips into the
retainer pins.
To raise the roll bar:
1. Pull the hair pin clips (A, Figure 23) out of the retainer
pins (B).
2. Rotate the retainer pins so that the handle of the pin is
pointing up (C).
3. Remove the retainer pins.
4. Raise the top loop (D) of the roll bar into position.
5. With the handles of the retainer pins pointing up, install
the retainer pins into the roll bar and secure the roll bar
into the raised position.
6. Rotate the retainer pins so that the handle of the pin is
pointing down and then install the hair pin clips into the
retainer pins.
