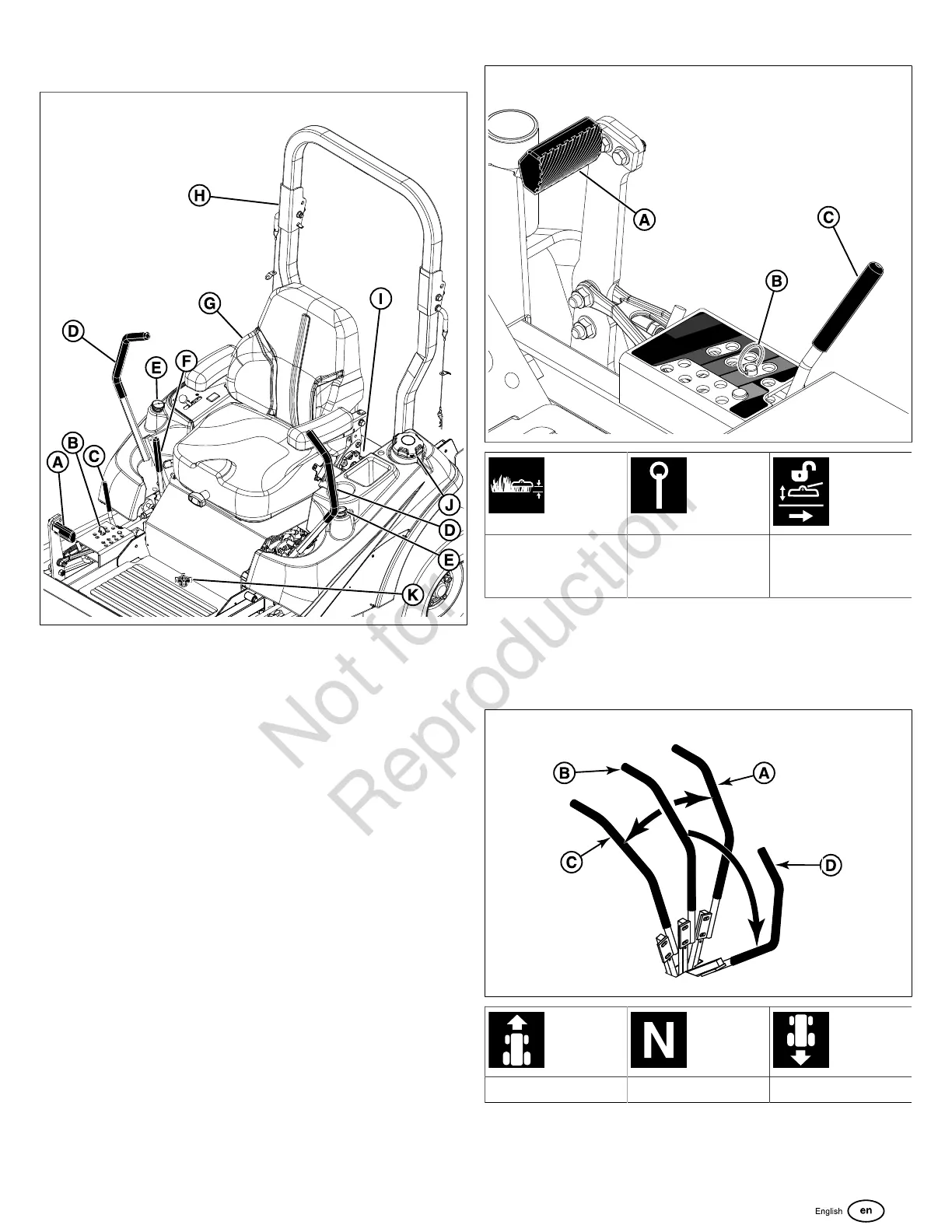

Zero-Turn Rider Controls
6
A. DeckLift Pedal
B. CuttingHeight Adjustment Pin
C. Deck Lift Lock Lever
D. GroundSpeed Control Levers
E. FuelLevel Gauge
F. Parking Brake Lever
G. Suspension Seat
H. Roll Bar
I. Seat Latch
J. Fuel Tank Cap
K. Removable Floor Plate
L. TransmissionOil Fill/Tanks (One per transmission)
M. TransmissionRelease Levers (One per transmission)
Deck Lift Pedal, Cutting Height Adjustment Pin & Deck
Lift Lock Lever: The deck lift pedal (A, Figure 7), the cutting
height adjustment pin (B), and the deck lift lock lever (C) are
used together to control the cutting height of the mower deck.
See Cutting Height Adjustment for instructions on using these
controls.
7
Cutting Height
Adjustment
Storage Hole for
Cutting Height
Adjustment Pin
Deck Lift Lock
Lever
Ground Speed Control Levers: These levers control the
ground speed and direction of the zero-turn riding mower.
The left lever controls the left rear drive wheel and the right
lever controls the right rear drive wheel.
8
Forward Neutral Reverse
The parking brake must be disengaged before attempting to
move the ground speed control levers from the NEUTRAL
position.
