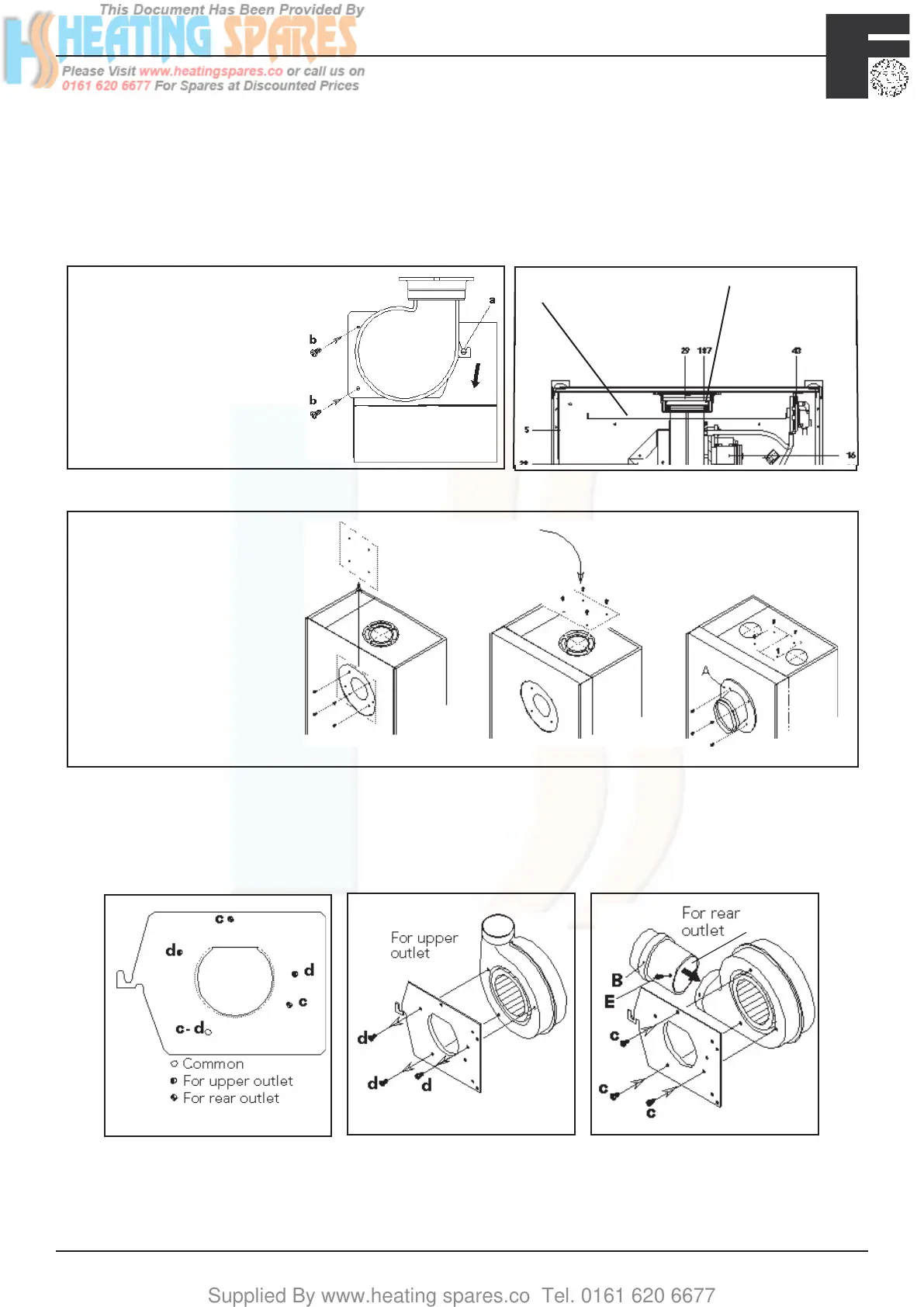

For installation (back flue connection):
For direct back flue connection it is necessary to use the optional kit Part No 822186, and it is necessary to alter
the fan direction inside the boiler.
Please Follow the below procedure carefully:
Fig. 21b
Fig. 21c
Fig. 21d
Remove fan by pulling off electri-
cal connections. Pull off air pres-
sure switch tubes from the air
pressure switch remove 2 screws
b. Rotate the fan downward to
disengage it from the securing
pin (a).
Remove the four screws which fix
the back plate onto sealed cham-
ber, remove and rotate the plate
through 90° and fit it to the top of
the boiler to cover the original flue
outlet. Secure it in place with the
four screws removed previously.
(fig 21b 21c)
Attach the flue adaptor (A) to the
rear of the appliance using the
ring seal and four screws supplied
(fig 21d)
Remove fan mounting plate by undoing the three fixing screws "d". Rotate the fan through 90° so that the fan
nozzle points sideways. Secure the fan to the plate in the new position using screws in position "c".
Attach the fan spigot adapter "B" using the two screws "E" provided.
NOTE: The spigot must be sealed using high temperature silicone, not supplied.
Fig. 21e
Fig. 21g
Fig. 21f
Fig. 21a
Remove and disgard the fan adaptor and heat-
shield
E
FERROLI F30
