4. Technical data and characteristics
4.1 Dimensions and connections

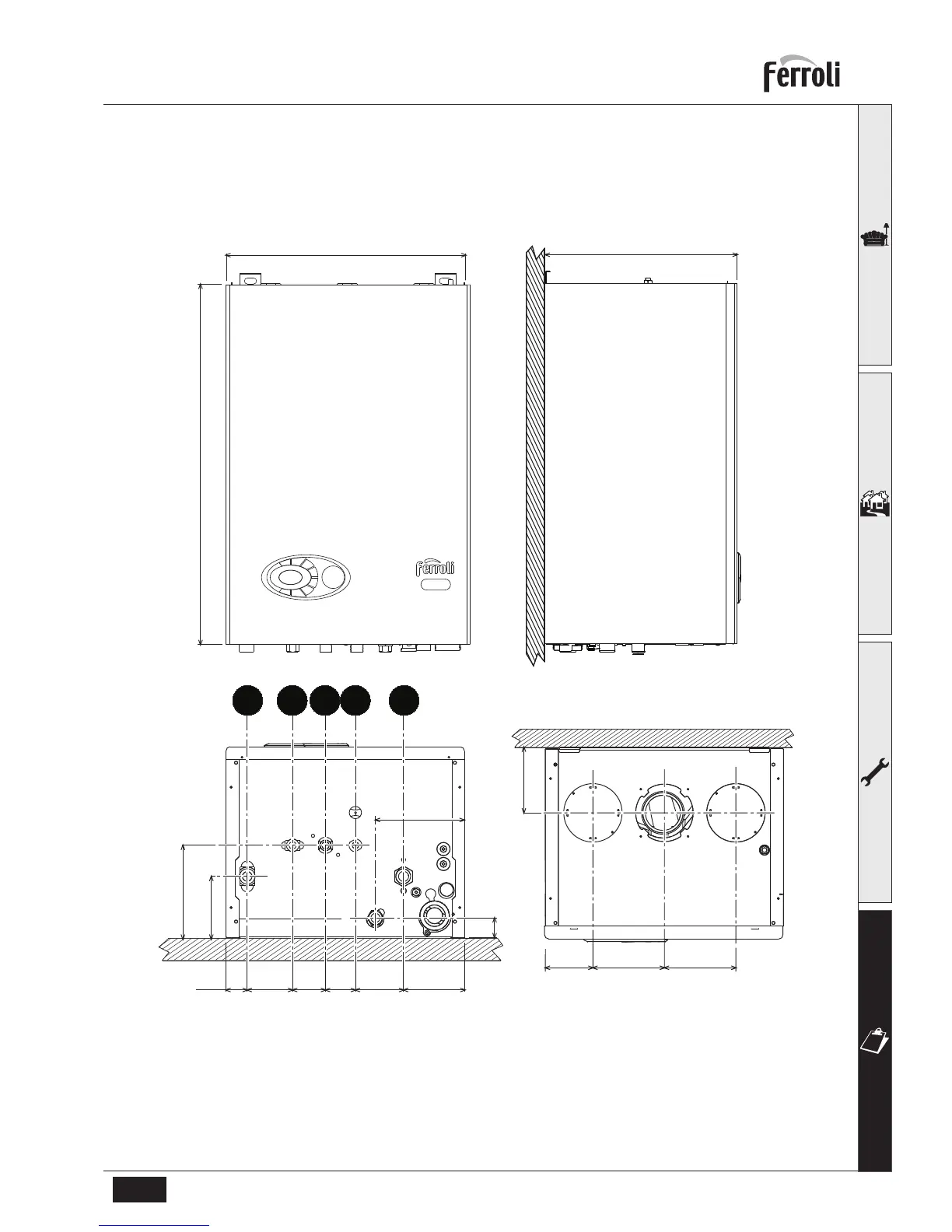

fig. 34 - Dimensions and connections
1 = Heating system delivery
2 = Domestic hot water outlet
3 = Gas inlet
4 = Cold water inlet
5 = Heating system return
12012080
110
400
600
1 2 3 4 5
150
35.5
76 54 51 80.5
157
105
35
103
320
