Festo FEC Compact - Page 22

Festo KBS-FEC FC30- 0109NH English22

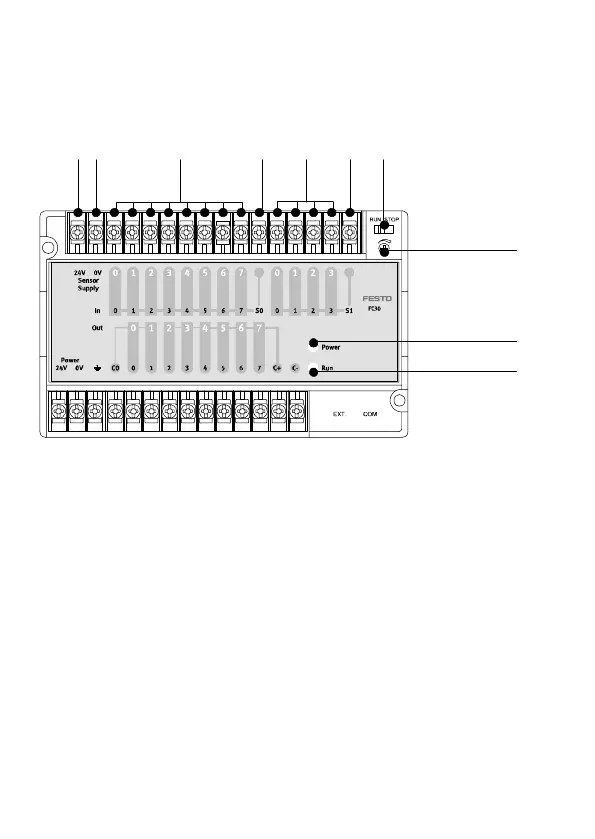

2OverviewoftheFECFC30module
3456
1
72
aJ
8
9
1
24 V DC sensor supply volt-
age
2
0 V sensor supply voltage
3
Input In 0.0 ... In 0.7
4 Common potential S0
for In 0.0 ... In 0.7
5 Input In 1.0 ... In 1.3
6
Common potential S1
for In 1,0 ... In 1.3
7
RUN/STOP switch
8
Analog potentiometer
(trimmer)
9
Power LED (main power sup-
ply, operating voltage)
aJ
Status LED (Run/Stop/Error)
