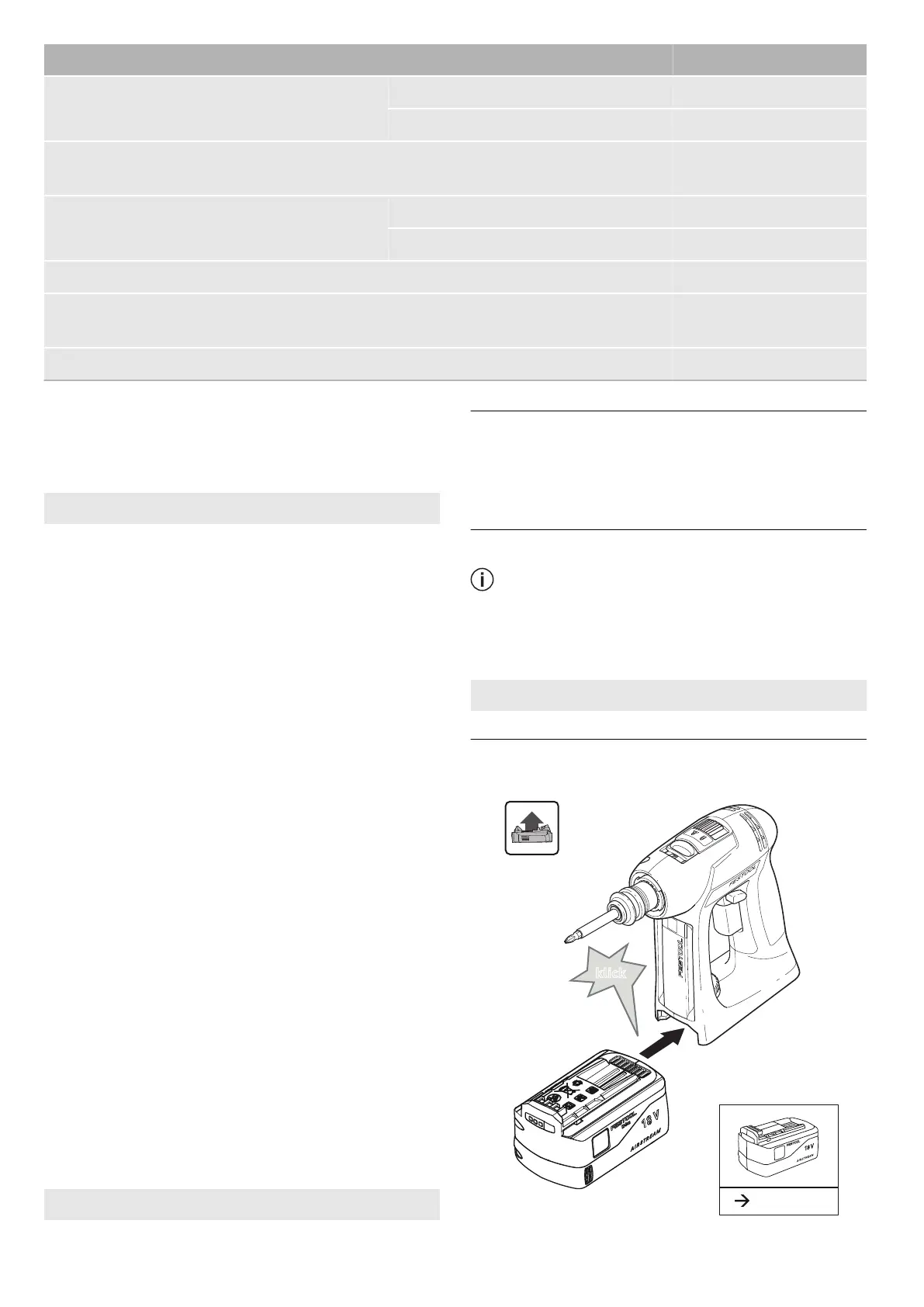

Cordless drill C 18 Li
Adjustable torque** 1st gear 0.8 - 8 Nm
2nd gear 0.5 - 6 Nm
Chuck clamping range 1/16" - 1/2'' (1.5 -
13 mm)
Max. drill diameter Wood 1-9/16'' (40 mm)
Metal 1/2'' (13 mm)
Tool holder in drill spindle 1/4’’
Weight (incl. battery pack BP 18 Li 6,2 AS and chuck) as per EPTA proce
dure 01:2014
4.4 lbs (2.0 kg)
Weight with Centrotec, without battery pack. 2.2 lbs (1.0 kg)
* Speed specifications with fully charged bat
tery pack.
** The maximum speed is reduced in the lower
torque stages (values in clockwise rotation).
6 Functional description
[1-1]
Torque thumbwheel
[1-2]
Bit store
[1-3]
LED light
[1-4]
Gear switch
[1-5]
Drilling symbol
[1-6]
Screwdriving symbol
[1-7]
Screwdriving/drilling selector switch
[1-8]
Rotational direction switch
[1-9]
On/off switch
[1-10]
Belt clip
[1-11]
Buttons for releasing the battery pack
[1-12]
Insulated gripping surfaces (grey
shaded area)
[1-13]
Capacity display button on battery
pack
[1-14]
Capacity indicator
Accessories shown or described are not always
included in the scope of delivery.
The pictures for the functional description are
on a fold-out page at the beginning of the in
struction manual. While reading the manual
you can fold out the page for comparison and
quick reference.
7 Commissioning
Consider the pictures on the fold-out page.
7.1 Belt clip
The belt clip allows a shot-term securing of the
device in the work clothes. Insert the belt clip
on the designated side, right or left, and fix it
with the screw [1a].
7.2 On/Off switch [1-9]
Press = ON, release = OFF
The speed of the machine depends on how
far the on/off switch is pressed in.
The LED bulb [1-3] lights up when the ON/OFF
switch is pressed [1-9].
8 Battery pack
8.1 Changing the battery pack
Inserting the battery pack [2a]
