Operation
Consider the pictures on the fold-out page.
Initial operation
X
Open the locking clips
[2-2]
and remove the top
section of the machine
[2-1]
.
X
Remove the accessories from the dust contain-
er
[2-3]
and the packaging!
X
Insert a filter or disposal bag in the dirt trap (see
chapter Changing the filter bag and Changing
the disposal bag).
X

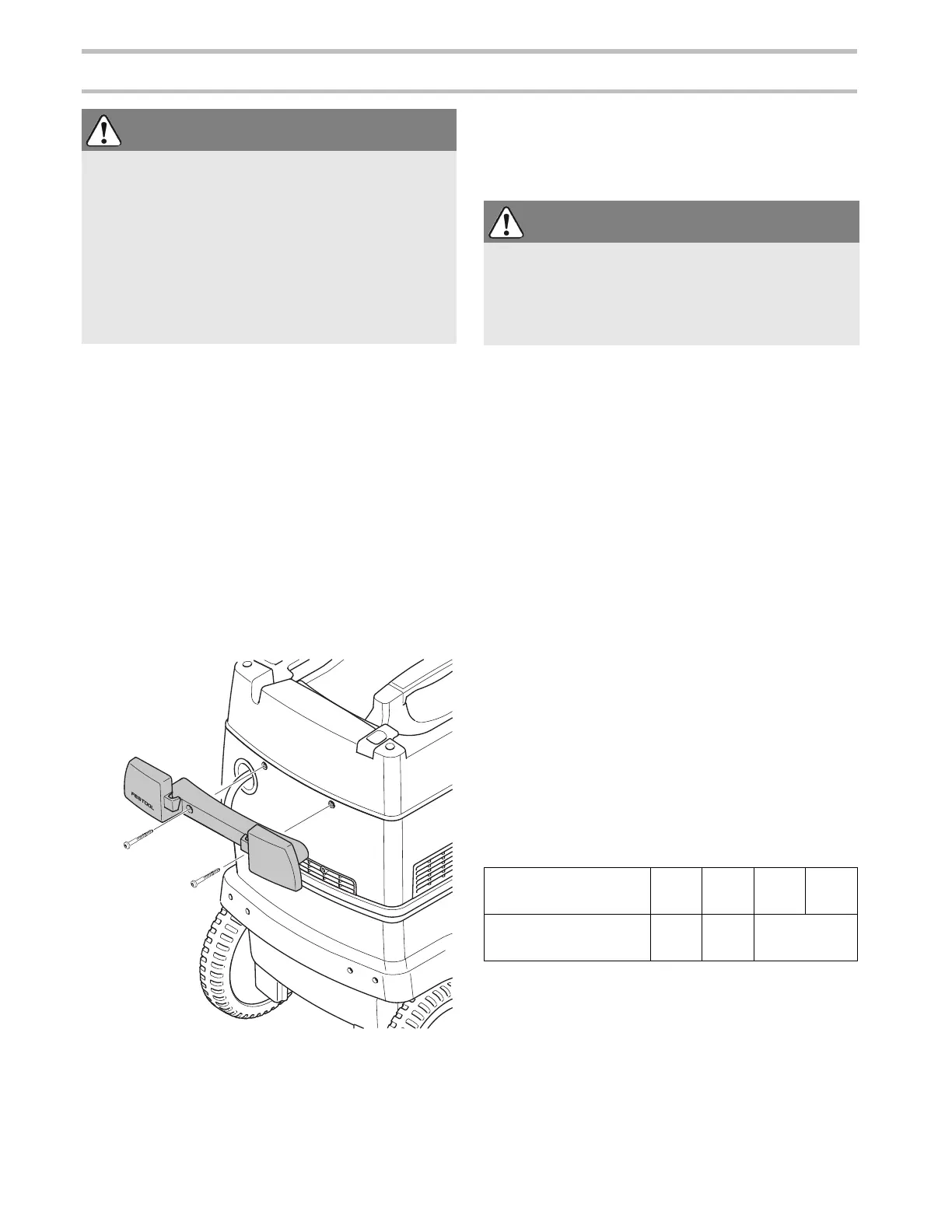

Attach the cable holder to the rear of the mobile
dust extractor (see Fig.
[3]
).
X
Replace the top section
[2-1]
and close the
locking clips
[2-2]
.
X
Connect the suction hose to the machine.
Switch on/off
X
Insert the plug into an earthed socket.
The switch
[1-9]
serves as an On/Off switch. It has
three positions:
Switch position "0"
Appliance socket
[1-3]
is disconnected from the
power, mobile dust extractor is switched off.
"MAN" switch position
Appliance socket
[1-3]
is disconnected from the
power, the mobile dust extractor starts.
"Auto" switch position
Appliance socket
[1-3]
is connected to the power,
the mobile dust extractor starts when the connect-
ed tool is switched on.
Extension Cord
If an extension cord is required, it must have suffi-
cient cross-section to prevent an excessive drop in
voltage or overheating. An excessive drop in voltage
reduces the output and can lead to failure of the
motor. The table below shows you the correct cord
diameter as a function of the cord length for this
tool.
Use only U.L. and CSA listed extension cords.
Never use two extension cords together. Instead,
use one long one.
L
The lower the AWG number, the stronger the
cord.
WARNING
Unauthorised voltage or frequency!
Risk of accident
X
The mains voltage and the frequency of the pow-
er source must correspond with the specifica-
tions on the machine's name plate.
X
In North America, only Festool machines with
the voltage specifications 120 V/60 Hz may be
used.
3
CAUTION
Risk of injury from tools starting up unexpectedly
X
Before setting the switch to the "AUTO" or
"MAN" position, make sure that the connected
tool is switched off.
Total Extension Cord
Lenght (feet)
25 50 100 150
Cable size (AWG) 14 12 not recom-
mended
