Speed control
[1-7]
Sanding pad
[1-8]
Edge protector
[1-9]
Handle (insulated gripping surface)
[1-10]
Mains adapter with plug-it connec
tion*
[1-11]
Plug-it cable*
[1-12]
Long-life dust bag
* not on all versions included in the scope of
delivery
The pictures for the functional description are
on a fold-out page at the beginning of the in
struction manual. While reading the manual
you can fold out the page for comparison and
quick reference.
7 Commissioning
7.1 Switch on/off
The switch [1-1] is an on/off switch (I = ON, 0 =
OFF).
When the battery pack is empty, or if
there is a power failure or the mains
plug is removed, move the on/off
switch immediately to the Off position.
This prevents uncontrolled restarting.
7.2 Battery pack

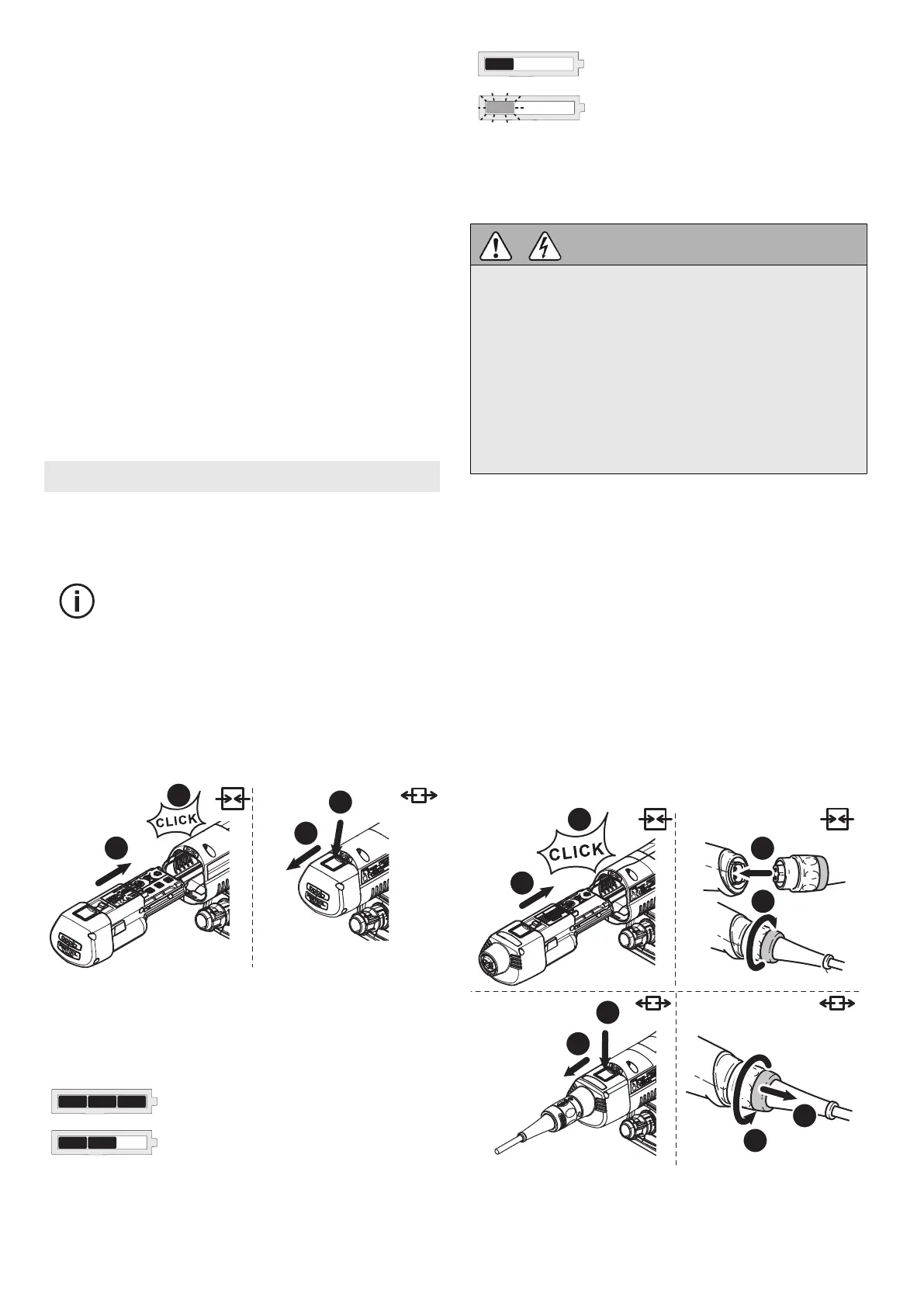

► Inserting the battery pack [2a]
► Removing the battery pack [2b]
Capacity display
Pressing the green button on the capacity dis
play [1-3] shows the charge status of the bat
tery pack:
70 - 100%
40 - 70%
15 - 40%
< 15%
Recommendation: Charge
battery pack before further
use.
7.3 Mains adapter
WARNING
Unauthorised voltage or frequency!
Risk of accident
► The mains voltage and the frequency of the
power source must correspond with the
specifications on the machine's name
plate.
► In North America, only Festool machines
with the voltage specifications 120 V/60 Hz
may be used.
The mains adapter (available as an accessory
depending on the model) facilitates use of the
cordless sanding technology with mains power,
enabling you to switch between power supply
sources. The mains adapter enables the mobile
dust extractor's automatic electronic switch-
on/shut-off function.
► Insert the mains adapter [3a]
► Connect the mains adapter and plug-it ca
ble [3b]
► Remove the mains adapter [3c]
► Detach the mains adapter from the plug-it
cable [3d]
