Always use a CENTROTEC tool chuck
to clamp CENTROTEC tools.

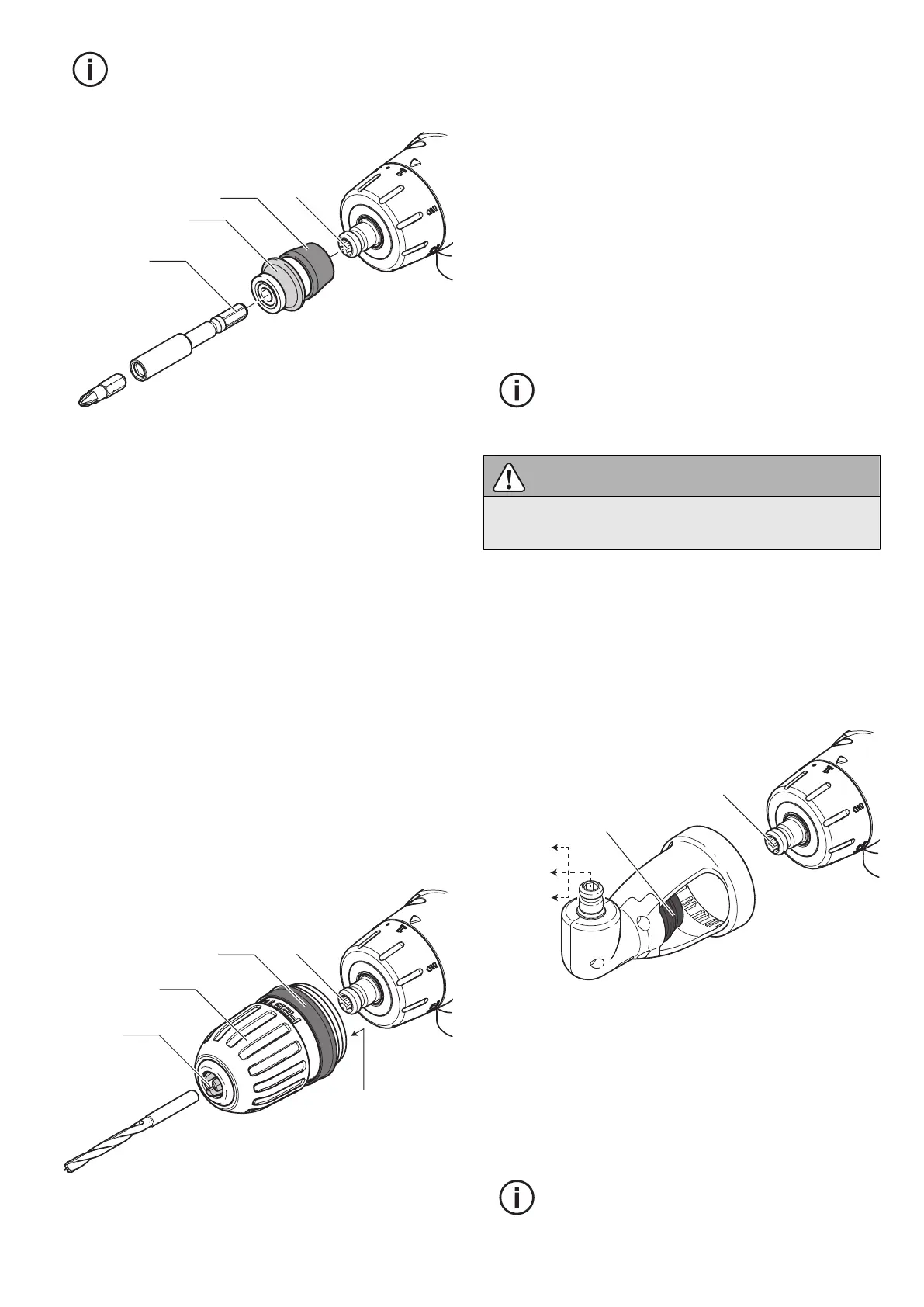

Attaching the CENTROTEC
► Pull the release ring [6-3] forwards.
► Attach the tool chuck to the drill spin
dle [6-4].
► Release the ring [6-3].
Detaching the CENTROTEC
► Pull the release ring [6-3] forwards.
► Remove the tool chuck.
Changing tools
► Pull back the green release ring [6-2] to at
tach or detach tools with a CENTROTEC
shank.
► When attaching the tool, rotate until the
hexagon shank [6-1] engages in the hexa
gon holder on the drill spindle.
► Release the ring [6-2].
9.2 Chuck BF-FX 10
The chuck BF-FX 10 is used for clamping drill
and screwdriver bits up to 10 mm chuck diame
ter.
Attaching the chuck BF-FX 10
► Attach the chuck to the drill spindle [7-4].
► Pull the release ring [7-3] forwards.
► Turn until the hexagon pin [7-5] on the
chuck engages in the hexagon socket hold
er in the drill spindle.
► Push the chuck all the way onto the drill
spindle.
► Release the ring [7-3].
Detaching the chuck BF-FX 10
► Pull the release ring [7-3] forwards.
► Remove the chuck.
Changing tools
► Turn the clamping sleeve [7-2] anticlock
wise to open the clamping jaws [7-1].
The arrow on the spindle indicates the
opening direction.
► Insert the tool into the chuck.
CAUTION
Risk of injury
► Clamp the tool centrally in the chuck!
► Turn the clamping sleeve [7-2] clockwise to
clamp the tool.
9.3 Right angle chuck XS-AS
The right angle chuck XS-AS (partly accesso
ries) allows you to work (drill, fasten) vertically
in relation to the longitudinal axis on the ma
chine.
8
8-1
8-2
WH-CE
BF-FX 8
BF-FX 10
Fitting the right angle chuck XS-AS
► Pull the green release ring [8-1] forwards.
► Fit the right angle chuck to the drill spin
dle [8-2].
► Turn the chuck until is engages in the re
quired position.
You can engage the right angle chuck
in 16 different positions.
English
13
